EP71-PGPST (1986)

Toyota Starlet

Production Jan 1986 - Dec 1989
Engine 2ETELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8410-8612)

Click highlighted areas on diagram

diagram 88367 88453 88460 88460B 88460C 88461A 88467 88467 88467B 88467B 88550 8871810270 8871814570 88891A 88891B 88891C 88891D 88891D 88891E 88891F 9009120612 9009932073 9009932073 9338516030
Part # Description Qty Price
88367 - SHROUD, COOLER BLOWER FAN
88454-10060

EP71,NP7#..DSL,TBO

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-10010

EP7#,NP7#

 1
88460 - CONDENSER ASSY, COOLER
88460-10110

EP71..TBO

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-10080

EP71..TBO

 1
88463-10080

EP7#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88463-10070

EP7#,NP7#

 1
88461A - CORE, COOLER CONDENSER
88461-10060

EP71,NP7#..DSL,TBO

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-10010

EP7#,NP7#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-10010

EP7#,NP7#

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22040

EP7#

NO.2

 2
88469-22010

EP7#,NP7#

NO.2

 2
88467-14040

EP71,NP7#..DSL,TBO

NO.1

 1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22040

EP7#

NO.2

 2
88469-22010

EP7#,NP7#

NO.2

 2
88467-14040

EP71,NP7#..DSL,TBO

NO.1

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-10040

EP7#,NP7#

 1
88891D - PACKING D (FOR COOLER)
16561-11010

EP71..4FC..TBO

 2
88891D - PACKING D (FOR COOLER)
16561-11010

EP71..4FC..TBO

 2
88891E - PACKING E (FOR COOLER)
16562-11010

EP71..4FC..TBO

 1
88891F - PACKING F (FOR COOLER)
16563-11010

EP71..4FC..TBO

 1
Common parts
88718-10270
88718-14570
90091-20612
90099-32073
93385-16030

ILLUST NO. 1 OF 2(8601- )TBO

Click highlighted areas on diagram

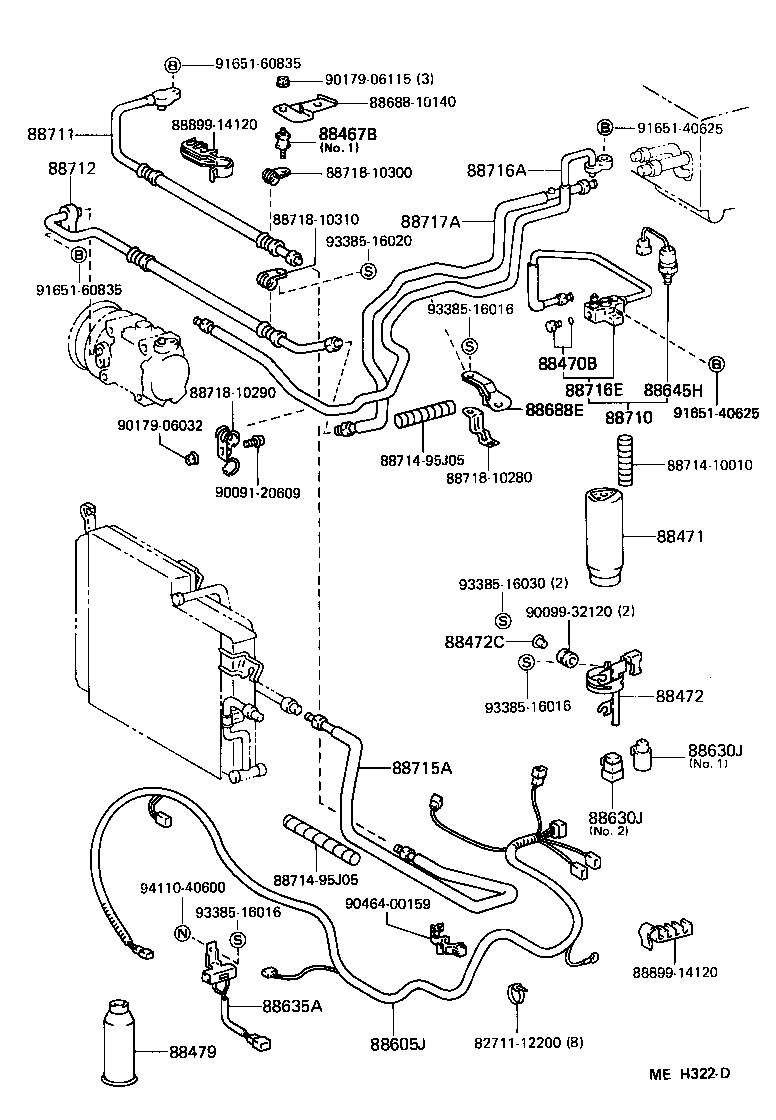

diagram 8271112200 88467B 88470B 88471 88472 88472C 88479 88605J 88630J 88630J 88635A 88645H 8868810140 88688E 88710 88711 88712 8871410010 8871495J05 8871495J05 88715A 88716A 88716E 88717A 8871810280 8871810290 8871810300 8871810310 8889914120 8889914120 9009120609 9009932120 9017906032 9017906115 9046400159 9165140625 9165140625 9165160835 9165160835 9338516016 9338516016 9338516016 9338516020 9338516030 9411040600
Part # Description Qty Price
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22040

EP7#

NO.2

 2
88469-22010

EP7#,NP7#

NO.2

 2
88467-14040

EP71,NP7#..DSL,TBO

NO.1

 1
88470B - BOLT, FUSE
88475-12020

EP7#,NP7#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-10030

EP71..TBO

 1
88471-10030

EP7#,NP7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-10130

EP7#

 1
88472-10160

EP7#,NP7#

 1
88472-10160

EP71..TBO

 1
88472C - INSULATOR, RECEIVER BRACKET
88467-14070

EP7#,NP7#

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

EP7#,NP7#

400G

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-10550

EP71..TBO

 1
88605-10580

EP71..TBS

W/*AAC,W/PS

 1
88605-10570

EP71..TBS

W/*AAC

 1
88605-10300

EP71..DX,SE,XL

W/PS,COOLER SW=A/C & ECONOMY

 1
88605-10560

EP71..TBO

W/PS

 1
88605-10380

EP71..SE

W/*AAC & PS

 1
88605-10360

EP71..SE

W/*AAC

 1
88605-10440

EP71..DX,SE,XL

W/PS,COOLER SW=A/C

 1
88605-10301

EP71..DX,SE,SI,XL

W/PS,COOLER SW=A/C & ECONOMY

 1
88605-10381

EP71..SE,SI

W/*AAC & PS

 1
88605-10600

EP71..4FC..TBO

 1
88605-10620

EP71..4FC

W/PS

 1
88605-10601

EP71..4FC..TBO

 1
88605-10621

EP71..4FC..TBO

W/PS

 1
88605-10640

EP71..4FC..TBO

W/*AAC

 2
88605-10641

EP71..4FC..TBO

W/*AAC

 1
88605-10660

EP71..4FC

W/*AAC & PS

 1
88605-10441

EP71..DX,SE,SI,XL

W/PS,COOLER SW=A/C

 1
88605-10661

EP71..4FC..TBO

W/*AAC & PS

 1
88630J - RELAY ASSY (FOR CONDENSER MOTOR)
88630-10070

EP7#,NP7#

NO.2

 1
88630-10060

EP7#,NP7#

NO.1

 1
88630J - RELAY ASSY (FOR CONDENSER MOTOR)
88630-10070

EP7#,NP7#

NO.2

 1
88630-10060

EP7#,NP7#

NO.1

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
88635-10020

EP7#,NP7#

 1
88645H - SWITCH, PRESSURE NO.1
88645-10010

EP7#,NP7#

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-10110

EP7#

 1
88688-10110

EP71..TBO

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-10050

EP7#,NP7#

 1
88710-10050

EP71..TBO

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-10110

EP71..TBO

 1
88711-10111

EP71..TBO

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-10130

EP71..TBO

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-10040

EP71,NP7#..DSL,TBO

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-10450

EP71..TBO

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-10460

EP71..TBO

 1
88716-10460

EP7#,NP7#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-10160

EP71..TBO

 1
Common parts
82711-12200
88688-10140
88714-10010
88714-95J05
88718-10280
88718-10290
88718-10300
88718-10310
88899-14120
90091-20609
90099-32120
90179-06032
90179-06115
90464-00159
91651-40625
91651-60835
93385-16016
93385-16020
93385-16030
94110-40600

ILLUST NO. 2 OF 2(8612- )EP7#

Click highlighted areas on diagram

diagram 88367 88453 88460 88460B 88460C 88461A 88467 88467 88467B 88467B 88550 88596B 8871810270 8871814570 88891A 88891B 88891C 88891D 88891D 88891E 88891F 9009120612 9009932073 9009932073 9338516030
Part # Description Qty Price
88367 - SHROUD, COOLER BLOWER FAN
88454-10060

EP71,NP7#..DSL,TBO

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-10010

EP7#,NP7#

 1
88460 - CONDENSER ASSY, COOLER
88460-10110

EP71..TBO

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-10080

EP71..TBO

 1
88463-10080

EP7#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88463-10070

EP7#,NP7#

 1
88461A - CORE, COOLER CONDENSER
88461-10060

EP71,NP7#..DSL,TBO

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-10010

EP7#,NP7#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-10010

EP7#,NP7#

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22040

EP7#

NO.2

 2
88469-22010

EP7#,NP7#

NO.2

 2
88467-14040

EP71,NP7#..DSL,TBO

NO.1

 1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22040

EP7#

NO.2

 2
88469-22010

EP7#,NP7#

NO.2

 2
88467-14040

EP71,NP7#..DSL,TBO

NO.1

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-10040

EP7#,NP7#

 1
88891D - PACKING D (FOR COOLER)
16561-11010

EP71..4FC..TBO

 2
88891D - PACKING D (FOR COOLER)
16561-11010

EP71..4FC..TBO

 2
88891E - PACKING E (FOR COOLER)
16562-11010

EP71..4FC..TBO

 1
88891F - PACKING F (FOR COOLER)
16563-11010

EP71..4FC..TBO

 1
Common parts
88718-10270
88718-14570
90091-20612
90099-32073
93385-16030
