EP71-PGPST (1986)

Toyota Starlet

Production Jan 1986 - Dec 1989
Engine 2ETELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8601- )TBO

Click highlighted areas on diagram

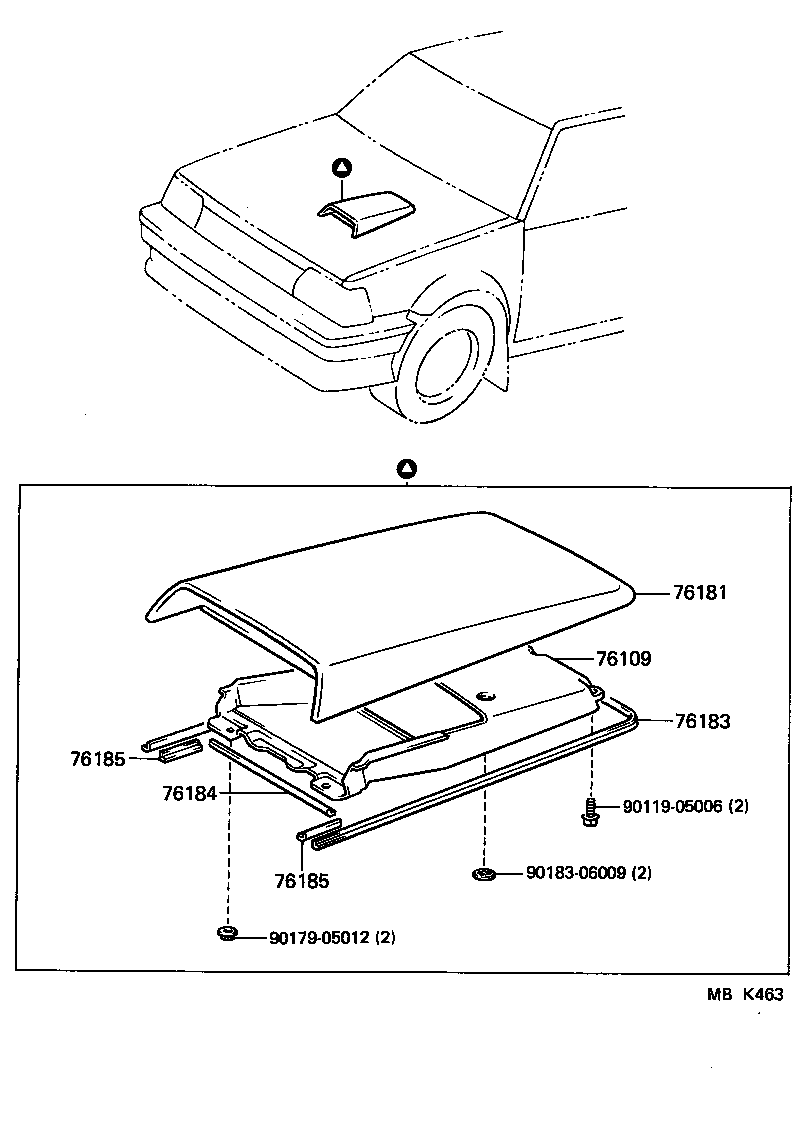

diagram 76109 76181 76183 76184 76185 76185 9011905006 9017905012 9018306009
Part # Description Qty Price
76109 - GUIDE SUB-ASSY, HOOD AIR INTAKE
76109-10010

EP71..TBO

 1
76181 - BULGE, HOOD
76181-10900

EP71..TBO

 1
76183 - PROTECTOR, HOOD BULGE, NO.1
76183-10010

EP71..TBO

 1
76184 - PROTECTOR, HOOD BULGE, NO.2
76184-10010

EP71..TBO

 1
76185 - PROTECTOR, HOOD BULGE, NO.3
76185-10010

EP71..TBO

 2
76185 - PROTECTOR, HOOD BULGE, NO.3
76185-10010

EP71..TBO

 2
Common parts
90119-05006
90179-05012
90183-06009
