EP71-PGPST (1986)

Toyota Starlet

Production Jan 1986 - Dec 1989
Engine 2ETELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )TBO

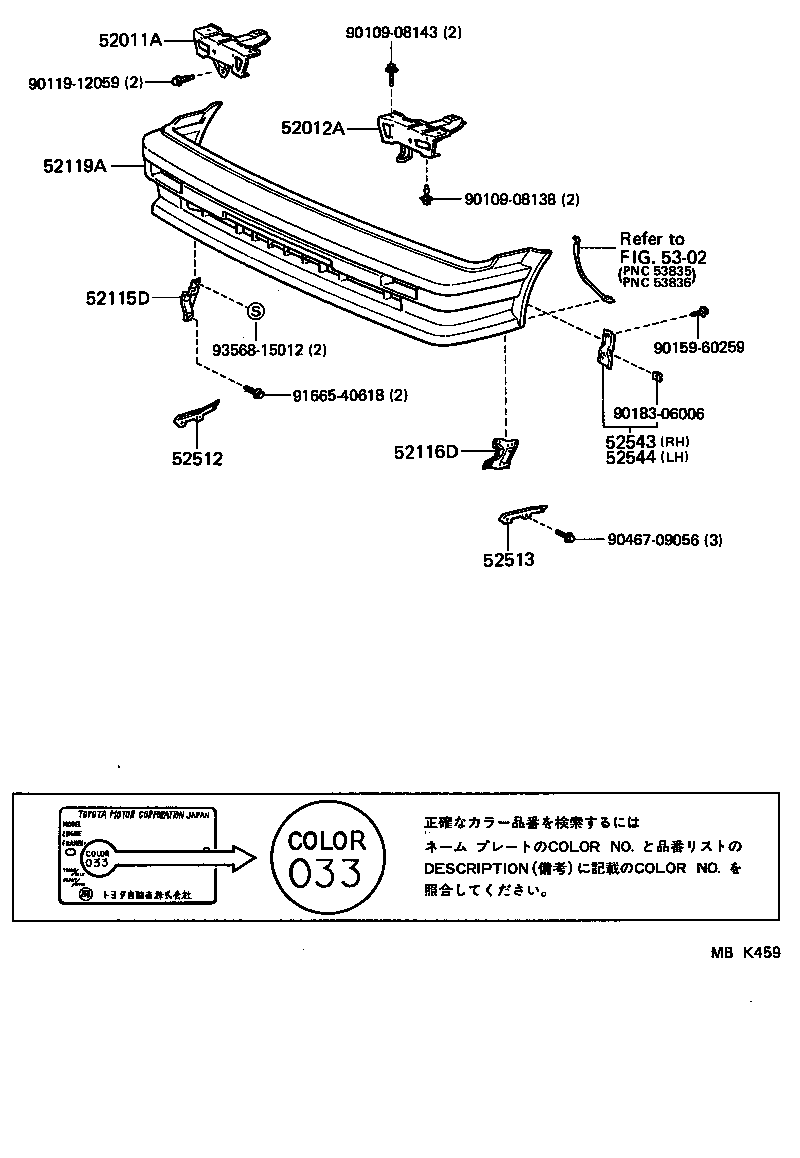

Click highlighted areas on diagram

diagram 52011A 52012A 52115D 52116D 52119A 52512 52513 52543 52544 5302 9010908138 9010908143 9011912059 9015960259 9018306006 9046709056 9166540618 9356815012
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-10100

EP71..TBO

 1
52011-10120

EP71..TBO

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-10110

EP71..TBO

 1
52012-10140

EP71..TBO

 1
52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH
52115-10060

EP71..TBO

 1
52115-10080

EP71..TBO

 1
52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH
52116-10050

EP71..TBO

 1
52116-10070

EP71..TBO

 1
52119A - COVER, FRONT BUMPER
52119-1009008

EP71..TBS

WHITE,WHITE,041

 1
52119-1014008

EP71..3D..TBS

TURBO S LIMITED,WHITE ,GRAY

 1
52119-1009003

EP71..TBS

SILVER-M,SILVER,148

 1
52119-1009001

EP71..TBS

BLACK-M,BLACK,6A5

 1
52119-1017008

EP71..3D..TBS

TURBO S LIMITED,WHITE,GRAY,041

 1
52119-1014008

EP71..3D..TBS

TURBO S LIMITED,WHITE ,GRAY

 1
52119-1016003

EP71..3D..TBS

TURBO S LIMITED,MEDIUM GRAY M,157

 1
52119-1009013

EP71..TBS

MEDIUM GRAY-M,MEDIUM GRAY METALLIC,27D

 1
52119-1012002

EP71,NP70..SE

RED,RED,3E6

 1
52119-1016003

EP71..TBS

MEDIUM GRAY-M,MEDIUM GRAY M,27D

 1
52119-1012008

EP71,NP70..SE

WHITE,WHITE,041

 1
52119-1016007

EP71..TBS

DARK GREEN-M,DARK GREEN M,6K2

 1
52119-1012003

EP71,NP70..SE

MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157

 1
52119-1016008

EP71..TBS

WHITE,WHITE,041

 1
52512 - FILLER, FRONT BUMPER, RH
52512-10010

EP71..TBO

 1
52513 - FILLER, FRONT BUMPER, LH
52513-10010

EP71..TBO

 1
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-10010

EP71..TBO

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52544-10010

EP71..TBO

 1
Common parts
90109-08138
90109-08143
90119-12059
90159-60259
90183-06006
90467-09056
91665-40618
93568-15012
Linked diagrams
5302
