EP71-PGPST (1986)

Toyota Starlet

Production Jan 1986 - Dec 1989
Engine 2ETELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )4FC

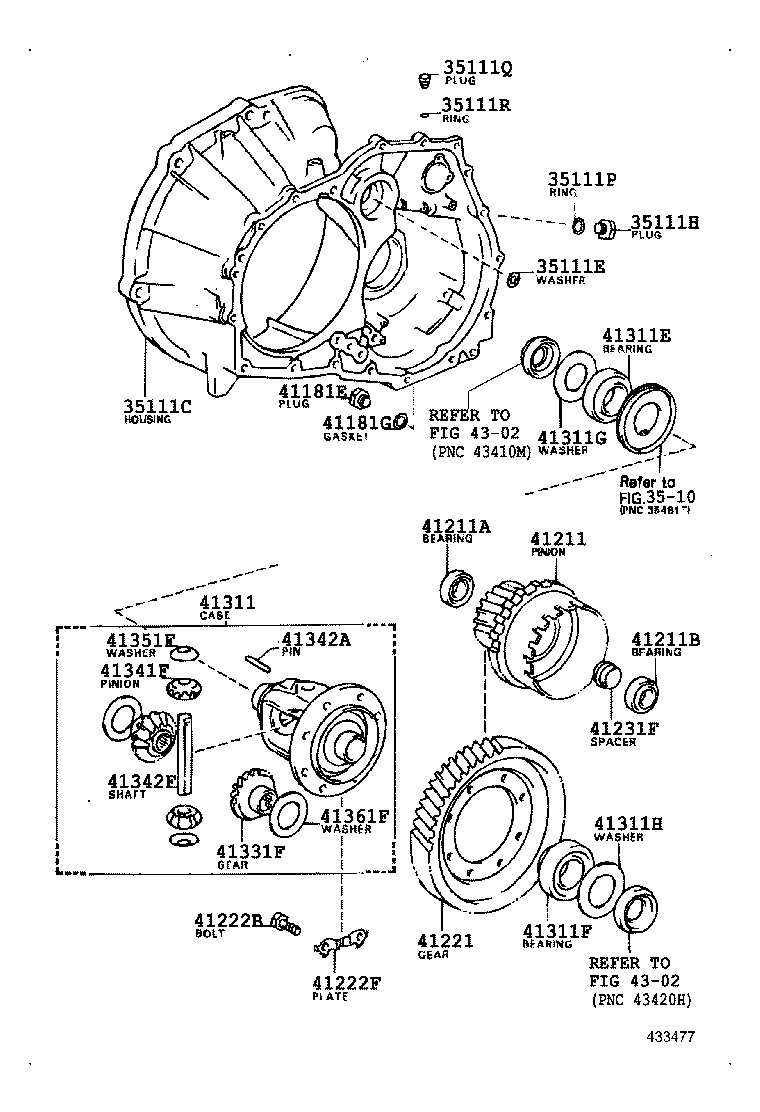

Click highlighted areas on diagram

diagram 3510 35111C 35111E 35111H 35111P 35111Q 35111R 41181E 41181G 41211 41211A 41211B 41221 41222B 41222F 41231F 41311 41311E 41311F 41311G 41311H 41331F 41341F 41342A 41342F 41351F 41361F 4302 4302
Part # Description Qty Price
35111C - HOUSING, TRANSAXLE
35111-10010

EP71..4FC

 1
35105-10012

EP71..4FC

 1
35105-10010

EP71..4FC

 1
35105-10013

EP71..4FC

 1
35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING)
90210-13002

EP71,NP70..4FC

 1
35111H - PLUG, NO.1 (FOR TRANSAXLE HOUSING)
90341-18020

EP71..4FC

 1
35111P - RING, O (FOR TRANSAXLE HOUSING PLUG NO.1)
90301-10189

EP71..4FC

 1
35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING)
90341-08001

EP71,NP70..4FC

 1
35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2)
90301-06196

EP71,NP70..4FC

 1
41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN)
90341-18057

EP71,NP70..4FC

 1
90341-18057

EP71,NP70..ATM

 1
41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
90430-18008

EP71,NP70..ATM

 1
41211 - PINION, DIFFERENTIAL DRIVE
41206-12010

EP71,NP70..4FC..(DSL,TBO)

 1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90366-30020

EP71,NP70..4FC

 1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90366-30019

EP71,NP70..4FC

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12190

EP71,NP70..4FC..(DSL,TBO)

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11353

EP71,NP70..ATM

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-12050

EP71,NP70..ATM

 4
41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41231-12030

EP71,NP70..4FC

 1
41311 - CASE, FRONT DIFFERENTIAL
41301-12090

EP71..4FC

 1
41301-12060

EP71..4FC

 1
41301-17020

EP71,NP70..4FC

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90368-38006

EP7#

 1
90368-38006

EP71,NP70..ATM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

EP71,NP70..4FC

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90201-41010

EP71,NP70..4FC

厚さ=2.00

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-41025

EP71,NP70..4FC

厚さ=2.35,ﾏｰｸ A,T=2.35,MARK A

 1
90201-41024

EP71,NP70..4FC

厚さ=2.00,ﾏｰｸ V,T=2.00,MARK V

 1
90201-41026

EP71,NP70..4FC

厚さ=2.40,ﾏｰｸ B,T=2.40,MARK B

 1
90201-41027

EP71,NP70..4FC

厚さ=2.45,ﾏｰｸ C,T=2.45,MARK C

 1
90201-41033

EP71,NP70..4FC

厚さ=2.75,ﾏｰｸ J,T=2.75,MARK J

 1
90201-41031

EP71,NP70..4FC

厚さ=2.65,ﾏｰｸ G,T=2.65,MARK G

 1
90201-41034

EP71,NP70..4FC

厚さ=2.80,ﾏｰｸ K,T=2.80,MARK K

 1
90201-41028

EP71,NP70..4FC

厚さ=2.50,ﾏｰｸ D,T=2.50,MARK D

 1
90201-41032

EP71,NP70..4FC

厚さ=2.70,ﾏｰｸ H,T=2.70,MARK H

 1
90201-41040

EP71,NP70..4FC

厚さ=2.15,ﾏｰｸ R,T=2.15,MARK R

 1
90201-41044

EP71,NP70..4FC

厚さ=2.05,ﾏｰｸ W,T=2.05,MARK W

 1
90201-41036

EP71,NP70..4FC

厚さ=2.90,ﾏｰｸ M,T=2.90,MARK M

 1
90201-41043

EP71,NP70..4FC

厚さ=2.30,ﾏｰｸ U,T=2.30,MARK U

 1
90201-41041

EP71,NP70..4FC

厚さ=2.20,ﾏｰｸ S,T=2.20,MARK S

 1
90201-41042

EP71,NP70..4FC

厚さ=2.25,ﾏｰｸ T,T=2.25,MARK T

 1
90201-41039

EP71,NP70..4FC

厚さ=2.10,ﾏｰｸ Q,T=2.10,MARK Q

 1
90201-41030

EP71,NP70..4FC

厚さ=2.60,ﾏｰｸ F,T=2.60,MARK F

 1
90201-41029

EP71,NP70..4FC

厚さ=2.55,ﾏｰｸ E,T=2.55,MARK E

 1
90201-41035

EP71,NP70..4FC

厚さ=2.85,ﾏｰｸ L,T=2.85,MARK L

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

EP71,NP70..ATM

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

EP71,NP70..ATM

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

EP71,NP70..ATM

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12020

EP71,NP70..ATM

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

EP71,NP70..ATM

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

EP71..ATM

厚さ=1.05,ﾏｰｸ 15,T=1.05

 2
41361-22160

EP71..ATM

厚さ=1.15,ﾏｰｸ 16,T=1.15

 2
41361-22040

EP71..ATM

厚さ=1.20,ﾏｰｸ 04,T=1.2

 2
41361-22030

EP71..ATM

厚さ=1.10,ﾏｰｸ 03,T=1.1

 2
41361-22140

EP71..ATM

厚さ=0.95,ﾏｰｸ 14,T=0.95

 2
41361-17060

EP71,NP70..4FC

厚さ=1.20,T=1.2

 2
41361-17030

EP71,NP70..4FC

厚さ=1.05,T=1.05

 2
41361-17050

EP71,NP70..4FC

厚さ=1.15,T=1.15

 2
41361-17040

EP71,NP70..4FC

厚さ=1.10,T=1.1

 2
41361-17010

EP71,NP70..4FC

厚さ=0.95,T=0.95

 2
41361-17020

EP71,NP70..4FC

厚さ=1.00,T=1.0

 2
41361-22020

EP71..ATM

厚さ=1.00,ﾏｰｸ 02,T=1.0

 2
Linked diagrams
3510
4302
