EP71-PGPST (1986)
Toyota Starlet
Production
Jan 1986
-
Dec 1989
Engine
2ETELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )2ETELU

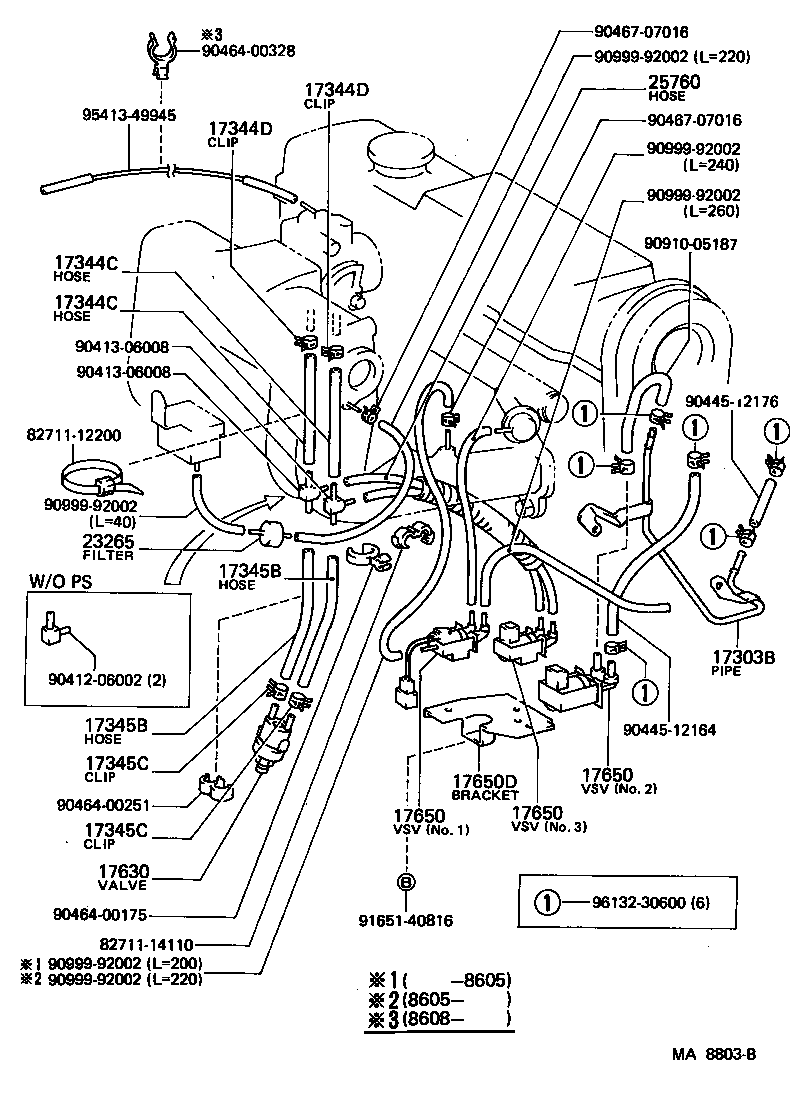

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11090 |
2ETELU..EP71 |
1 | ||
| 17344C - HOSE, NO.4(FOR IDLE-UP) | ||||
| 17344-11010 |
2ETELU..EP71 |
2 | ||
| 17344C - HOSE, NO.4(FOR IDLE-UP) | ||||
| 17344-11010 |
2ETELU..EP71 |
2 | ||
| 17344D - CLIP, NO.4(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
2ETELU..EP71 |
2 | ||
| 17344D - CLIP, NO.4(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
2ETELU..EP71 |
2 | ||
| 17345B - HOSE, NO.5(FOR IDLE-UP) | ||||
| 17345-11010 |
2ETELU..EP71 W/POWER STEERING |
2 | ||
| 17345B - HOSE, NO.5(FOR IDLE-UP) | ||||
| 17345-11010 |
2ETELU..EP71 W/POWER STEERING |
2 | ||
| 17345C - CLIP, NO.5(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
2ETELU..EP71 W/POWER STEERING |
2 | ||
| 17345C - CLIP, NO.5(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
2ETELU..EP71 W/POWER STEERING |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
2ETELU..EP71 W/POWER STEERING |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12030 |
2ETELU..EP71 NO.1 |
1 | ||
| 90910-12029 |
2ETELU..EP71 NO.2 |
1 | ||
| 90910-12031 |
2ETELU..EP71 NO.3 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12030 |
2ETELU..EP71 NO.1 |
1 | ||
| 90910-12029 |
2ETELU..EP71 NO.2 |
1 | ||
| 90910-12031 |
2ETELU..EP71 NO.3 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12030 |
2ETELU..EP71 NO.1 |
1 | ||
| 90910-12029 |
2ETELU..EP71 NO.2 |
1 | ||
| 90910-12031 |
2ETELU..EP71 NO.3 |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 21999-11020 |
2ETELU..EP71 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11030 |
2ETELU..EP71 |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11020 |
2ETELU..EP71 |
1 | ||
| 25760-11021 |
2ETELU..EP71 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 90412-06002 | ||||
| 90413-06008 | ||||
| 90445-12164 | ||||
| 90445-12176 | ||||
| 90464-00175 | ||||
| 90464-00251 | ||||
| 90464-00328 | ||||
| 90467-07016 | ||||
| 90910-05187 | ||||
| 90999-92002 | ||||
| 91651-40816 | ||||
| 95413-49945 | ||||
| 96132-30600 | ||||
