EP71-PGPST (1986)
Toyota Starlet
ILLUST NO. 1 OF 2(8601- )2ETELU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-11010 |
2ETELU..EP71 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-14091 |
2ETELU..EP71 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-14235 |
2ETELU..EP71 BOLT SIDE |
1 | ||
| 90430-14006 |
2ETELU..EP71 OIL FILTER BRACKET SIDE |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-14235 |
2ETELU..EP71 BOLT SIDE |
1 | ||
| 90430-14006 |
2ETELU..EP71 OIL FILTER BRACKET SIDE |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-35010 |
2ETELU..EP71 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 90910-05188 |
2ETELU..EP71 |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26003 |
2ETELU..EP71 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26003 |
2ETELU..EP71 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-11150 |
2ETELU..EP71 |
1 | ||
| 17101-11151 |
2ETELU..EP71 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90345-51025 |
2EELU,2ETELU..EP71 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-11070 |
2EELU,2ETELU..EP71 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-11050 |
2ETELU..EP71 |
1 | ||
| 17141-11150 |
2ETELU..EP71 |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10121 |
2ETELU..EP71 |
4 | ||
| 17149 - EXTENSION, EXHAUST MANIFOLD | ||||
| 17149-11010 |
2ETELU..EP71 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10017 |
2E#..EP7# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92132-60825 |
2E#..EP7# INTAKE MANIFOLD |
2 | ||
| 92122-61028 |
2E#..EP7# EXHAUST MANIFOLD |
6 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92132-60825 |
2E#..EP7# INTAKE MANIFOLD |
2 | ||
| 92122-61028 |
2E#..EP7# EXHAUST MANIFOLD |
6 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-11170 |
2ETELU..EP71 |
1 | ||
| 17167-11050 |
2ETELU..EP71 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-11010 |
2ETELU..EP71 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-11030 |
2ETELU..EP71 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-11030 |
2ETELU..EP71 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-10010 |
2E#..EP7# |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-11010 |
2ETELU..EP71 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-11010 |
2ETELU..EP71 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-11020 |
2ETELU..EP71 |
1 | ||
| 17278-11010 |
2ETELU..EP71 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-11010 |
2ETELU..EP71 |
1 | ||
| 17361A - TUBE, AIR(FOR EFI) | ||||
| 17361-11060 |
2ETELU..EP71..4FC |
1 | ||
| 17361-11020 |
2ETELU..EP71 |
1 | ||
| 17361A - TUBE, AIR(FOR EFI) | ||||
| 17361-11060 |
2ETELU..EP71..4FC |
1 | ||
| 17361-11020 |
2ETELU..EP71 |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25508-11030 |
2ETELU..EP71 |
1 | ||
| 25508-11060 |
2ETELU..EP71 |
1 | ||
| 25508-11031 |
2ETELU..EP71 |
1 | ||
| 25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR | ||||
| 25586-11030 |
2ETELU..EP71 NO.1 |
1 | ||
| 25587-11030 |
2ETELU..EP71 NO.2 |
1 | ||
| 25586-11040 |
2ETELU..EP71 NO.1 |
1 | ||
| 25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR | ||||
| 25586-11030 |
2ETELU..EP71 NO.1 |
1 | ||
| 25587-11030 |
2ETELU..EP71 NO.2 |
1 | ||
| 25586-11040 |
2ETELU..EP71 NO.1 |
1 | ||
| 25576 - GASKET, MANIFOLD CONVERTER | ||||
| 25576-15010 |
2EELU,2ELU,2ETELU..EP71 |
1 | ||
| 25576-11020 |
2EELU,2ELU,2ETELU..EP71 |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-11010 |
2ETELU..EP71 |
1 | ||
| Common parts | ||||
| 90116-08347 | ||||
| 90119-10025 | ||||
| 90179-06007 | ||||
| 90179-08017 | ||||
| 90179-08040 | ||||
| 90179-08044 | ||||
| 90179-08082 | ||||
| 90179-10025 | ||||
| 90179-10028 | ||||
| 91511-60816 | ||||
| 91611-60825 | ||||
| 91651-60612 | ||||
| 91651-60814 | ||||
| 91651-60816 | ||||
| 92122-40816 | ||||
| 92122-60612 | ||||
| 92122-B0814 | ||||

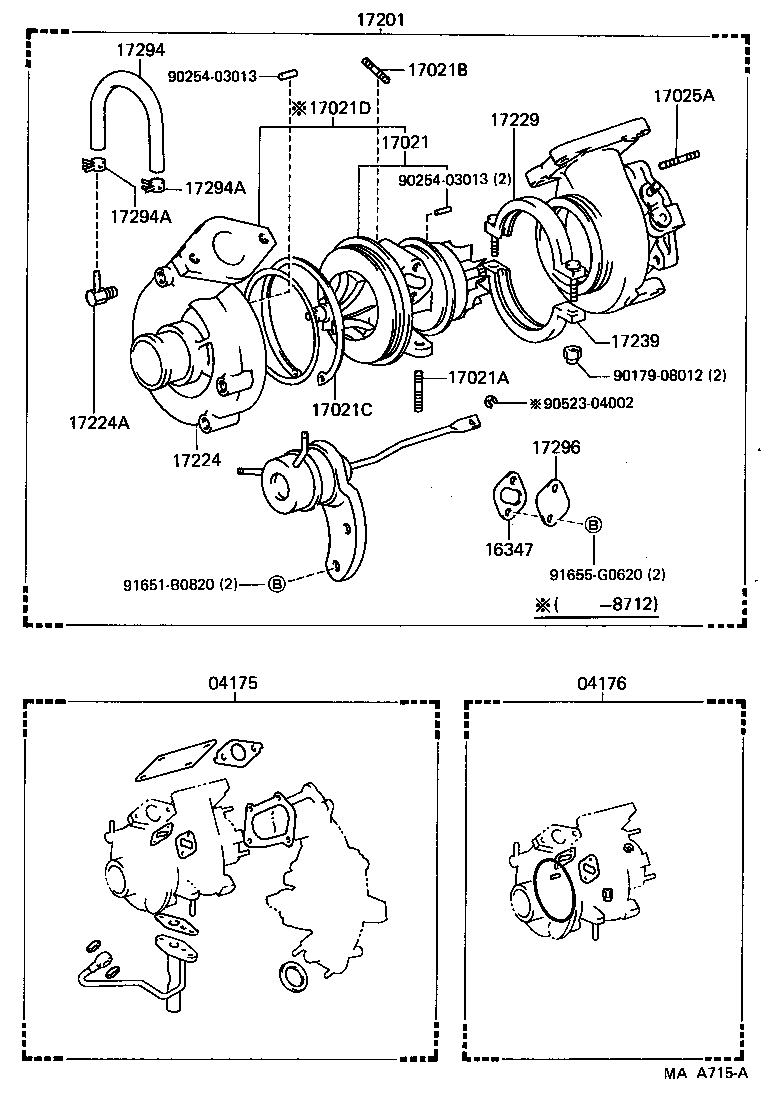

ILLUST NO. 2 OF 2(8601- )2ETELU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-11010 |
2ETELU..EP71 |
1 | ||
| 04176 - SEAL KIT, TURBOCHARGER | ||||
| 04176-70010 |
2ETELU..EP71 |
1 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-28010 |
2ETELU..EP71 |
1 | ||
| 17021 - HOUSING SUB-ASSY, BEARING | ||||
| 17021-70020 |
2ETELU..EP71 |
1 | ||
| 17021-70010 |
2ETELU..EP71 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
2ETELU..EP71 |
2 | ||
| 17021B - BOLT, STUD | ||||
| 90116-06048 |
2ETELU..EP71 |
2 | ||
| 17021C - RING, HOLE SNAP(FOR BEARING HOUSING) | ||||
| 90521-99035 |
2ETELU..EP71 |
1 | ||
| 17021D - HOUSING SUB-ASSY, BEARING, W/COMPRESSOR HOUSING | ||||
| 17021-79015 |
2ETELU..EP71 |
1 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-08200 |
2ETELU..EP71 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-11013 |
2ETELU..EP71 |
1 | ||
| 17201-11012 |
2ETELU..EP71 |
1 | ||
| 17201-11011 |
2ETELU..EP71 |
1 | ||
| 17224 - HOUSING, COMPRESSOR | ||||
| 17224-11030 |
2ETELU..EP71 |
1 | ||
| 17224A - UNION(FOR COMPRESSOR HOUSING) | ||||
| 90404-51040 |
2ETELU..EP71 |
1 | ||
| 17229 - BAND, V | ||||
| 17229-70010 |
2ETELU..EP71 |
1 | ||
| 17239 - CLAMP, V, NO.2 | ||||
| 17239-70010 |
2ETELU..EP71 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 17294-11010 |
2ETELU..EP71 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
2ETELU..EP71 |
2 | ||
| 96132-41100 |
2ETELU..EP71 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
2ETELU..EP71 |
2 | ||
| 96132-41100 |
2ETELU..EP71 |
2 | ||
| 17296 - PLATE, BEARING HOUSING, SIDE | ||||
| 17296-28010 |
2ETELU..EP71 |
1 | ||
| Common parts | ||||
| 90179-08012 | ||||
| 90254-03013 | ||||
| 90523-04002 | ||||
| 91651-B0820 | ||||
| 91655-G0620 | ||||
