EP71-PGPST (1986)

Toyota Starlet

Production Jan 1986 - Dec 1989
Engine 2ETELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601-8612)2ETELU ; (8612- )2ETELU..5F

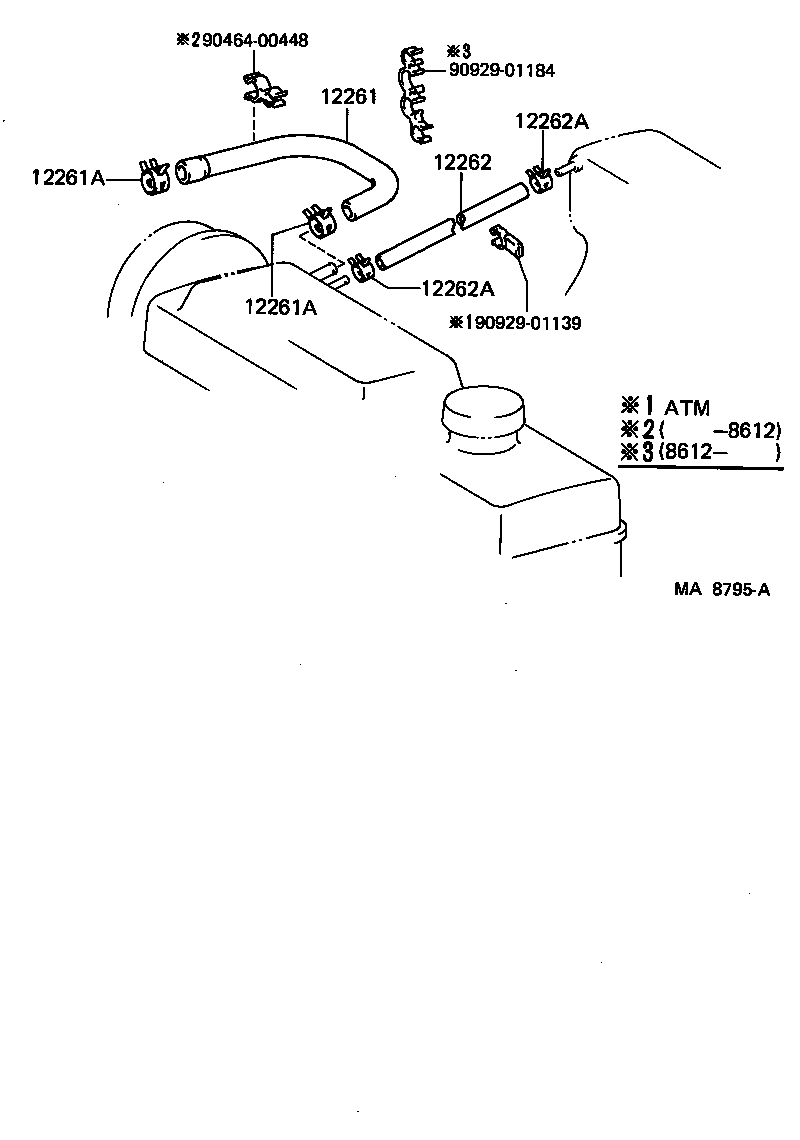

Click highlighted areas on diagram

diagram 12261 12261A 12261A 12262 12262A 12262A 9046400448 9092901139 9092901184
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-11070

2ETELU..EP71..4FC

 1
12261-11030

2ETELU..EP71

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-17006

2ETELU..EP71

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-17006

2ETELU..EP71

 2
12262 - HOSE, VENTILATION, NO.2
12262-11030

2ETELU..EP71

 1
12262-11010

2ETELU..EP71

 1
12262-11020

2ETELU..EP71..4FC

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13036

2ETELU..EP71

 4
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13036

2ETELU..EP71

 4
Common parts
90464-00448
90929-01139
90929-01184

(8612- )2ETELU..4FC

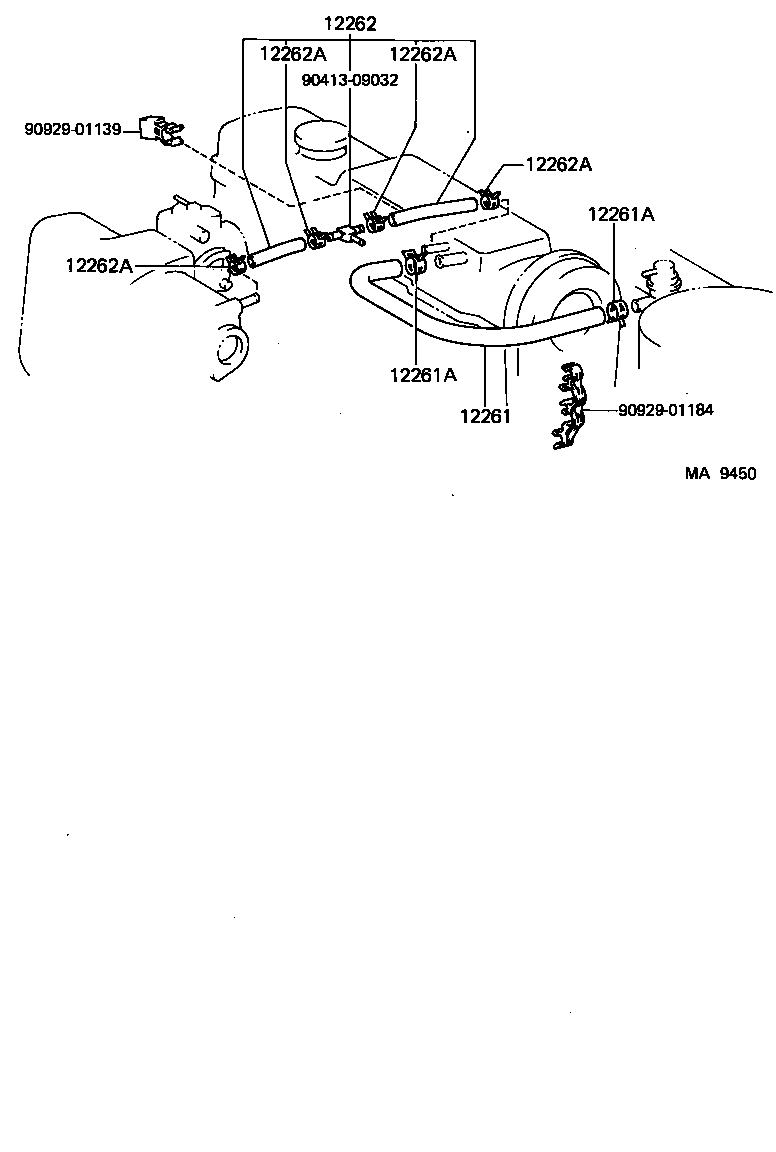

Click highlighted areas on diagram

diagram 12261 12261A 12261A 12262 12262A 12262A 12262A 12262A 9041309032 9092901139 9092901184
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-11070

2ETELU..EP71..4FC

 1
12261-11030

2ETELU..EP71

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-17006

2ETELU..EP71

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-17006

2ETELU..EP71

 2
12262 - HOSE, VENTILATION, NO.2
12262-11030

2ETELU..EP71

 1
12262-11010

2ETELU..EP71

 1
12262-11020

2ETELU..EP71..4FC

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13036

2ETELU..EP71

 4
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13036

2ETELU..EP71

 4
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13036

2ETELU..EP71

 4
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13036

2ETELU..EP71

 4
Common parts
90413-09032
90929-01139
90929-01184
