EP71-PGPST (1986)

Toyota Starlet

Production Jan 1986 - Dec 1989
Engine 2ETELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )2ETELU

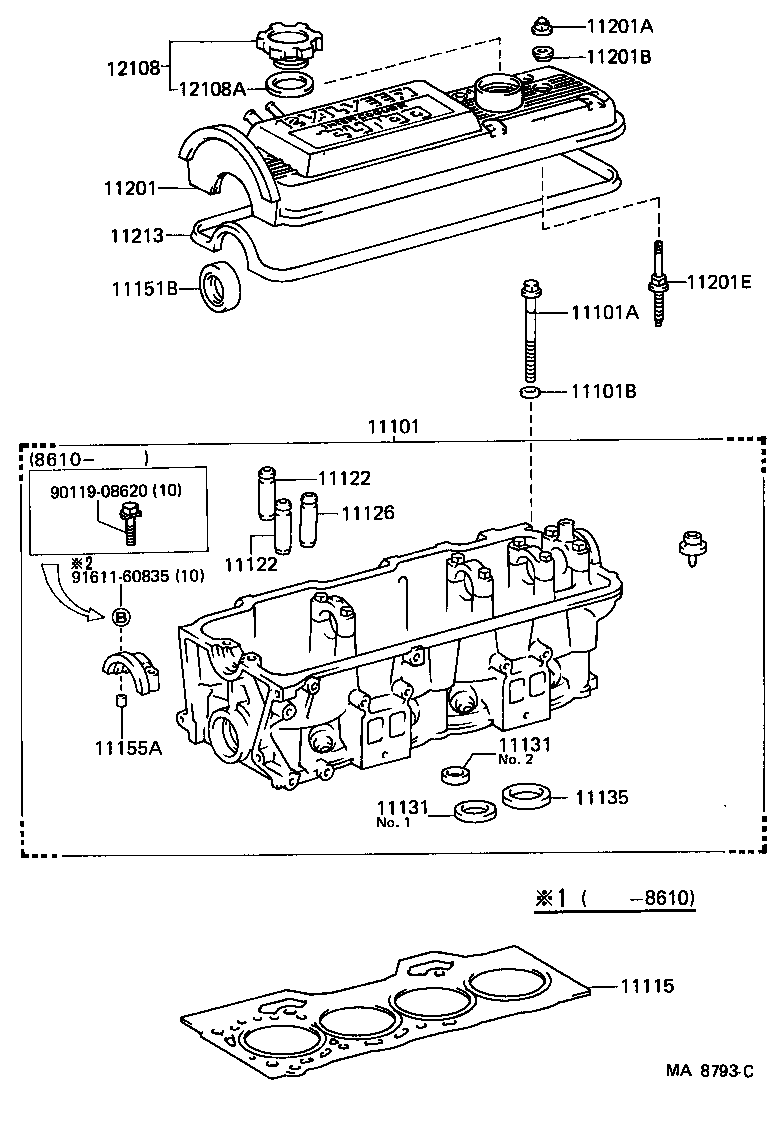

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11122 11122 11126 11131 11131 11135 11151B 11155A 11201 11201A 11201B 11201E 11213 12108 12108A 9011908620 9161160835
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-19175

2ETELU..EP71

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-09002

2E#..EP7#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-09015

2E#..EP7#

 10
11115 - GASKET, CYLINDER HEAD
11115-11030

2ETELU..EP71

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-10040

2E#..EP7#

O/S 0.05,O/S 0.05

 8
11122-10040

2E#..EP7#

STD,STD

 8
11122 - BUSH, INTAKE VALVE GUIDE
11123-10040

2E#..EP7#

O/S 0.05,O/S 0.05

 8
11122-10040

2E#..EP7#

STD,STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-10040

2E#..EP7#

STD,STD

 4
11123-10040

2E#..EP7#

O/S 0.05,O/S 0.05

 4
11131 - SEAT, INTAKE VALVE
11137-11010

2ETELU..EP71

STD,STD,NO.2

 4
11132-10020

2E#..EP7#

O/S 0.03,O/S 0.03,NO.1

 4
11138-11010

2ETELU..EP71

O/S 0.03,O/S 0.03,NO.2

 4
11131-10020

2E#..EP7#

STD,STD,NO.1

 4
11131 - SEAT, INTAKE VALVE
11137-11010

2ETELU..EP71

STD,STD,NO.2

 4
11132-10020

2E#..EP7#

O/S 0.03,O/S 0.03,NO.1

 4
11138-11010

2ETELU..EP71

O/S 0.03,O/S 0.03,NO.2

 4
11131-10020

2E#..EP7#

STD,STD,NO.1

 4
11135 - SEAT, EXHAUST VALVE
11135-11010

2ETELU..EP71

STD,STD

 4
11136-11010

2ETELU..EP71

O/S 0.03,O/S 0.03

 4
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35017

2E#..EP7#

 1
11155A - PIN, RING W/HEAD
90253-11021

2E#..EP7#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-11010

2ETELU..EP71

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06012

2ETELU..EP71

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06008

2ETELU..EP71

 4
11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET)
90109-08139

2ETELU..EP71

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-11020

2ETELU..EP71

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030

2ETELU..EP71

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2ETELU..EP71

 1
Common parts
90119-08620
91611-60835
