EP71-PGMSE (1984)
Toyota Starlet
(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19165 |
EP7#,NP7# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
EP7#,NP7# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19165 |
EP7#,NP7# |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-10030 |
EP7# |
1 | ||
| 45222-10030 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-10070 |
EP71..5F..EFI |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
EP7# |
1 | ||
| 90311-15001 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19075 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
2 | ||
| 45503-19075 |
EP7# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19075 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
2 | ||
| 45503-19075 |
EP7# |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-10050 |
EP71..5F..EFI |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-10020 |
EP7# |
1 | ||
| 45514-10030 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45514-10030 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45514-10020 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-10020 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45515-10030 |
EP7# |
1 | ||
| 45515-10030 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45515-10040 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-10040 |
EP7# |
1 | ||
| 45516-16040 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45516-10040 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45516-10050 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45516-16040 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-10060 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45517-10040 |
EP7# |
1 | ||
| 45517-10040 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45517-10030 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-10020 |
EP7# |
1 | ||
| 45518-10020 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45518-10010 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45518-10030 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-10050 |
EP71..5F..EFI |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-10050 |
EP7# |
1 | ||
| 45522-10050 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-10020 |
EP7# |
1 | ||
| 45523-10020 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26038 |
EP7# |
1 | ||
| 90501-26038 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-10020 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45524-10020 |
EP7# |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-30001 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 90179-30001 |
EP7# |
1 | ||
| 90179-30002 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-10021 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45535-10021 |
EP7# |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10646 |
EP7# ID=38 |
1 | ||
| 90461-10273 |
EP7# ID=41.5 |
1 | ||
| 90461-10273 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL ID=41.5 |
1 | ||
| 90461-10646 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL ID=38 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10646 |
EP7# ID=38 |
1 | ||
| 90461-10273 |
EP7# ID=41.5 |
1 | ||
| 90461-10273 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL ID=41.5 |
1 | ||
| 90461-10646 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL ID=38 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
2 | ||
| 90467-18003 |
EP7# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
2 | ||
| 90467-18003 |
EP7# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-10060 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45536-10060 |
EP7# |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-12002 |
EP7# |
2 | ||
| 90214-12002 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-12002 |
EP7# |
2 | ||
| 90214-12002 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-10011 |
EP71..5F..EFI |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 90363-15003 |
EP7# |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13001 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 90363-13001 |
EP7# |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45545-10010 |
EP7# |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
EP7# |
1 | ||
| 90179-38001 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| Common parts | ||||
| 90105-10155 | ||||
| 90179-10088 | ||||
| 93269-63020 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||

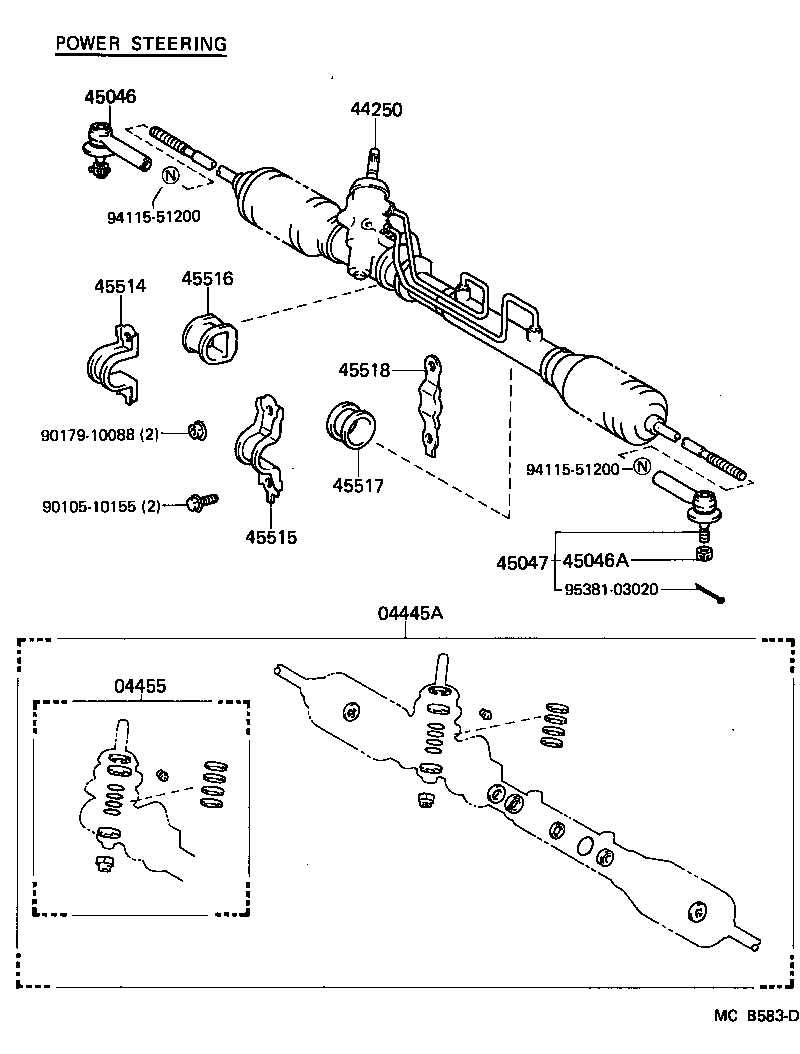

ILLUST NO. 1 OF 2(8410-8612)DX,SE,TBS,TOR,XL ; (8612- )DX,SE,SI,TBS,TOR,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-10010 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 04445-16032 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 04445-16031 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-16030 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 04455-10010 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 04455-16030 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-10010 |
EP71..DX,SE,XL |
1 | ||
| 44250-10030 |
EP71..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44250-10020 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19165 |
EP7#,NP7# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
EP7#,NP7# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19165 |
EP7#,NP7# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-10020 |
EP7# |
1 | ||
| 45514-10030 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45514-10030 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45514-10020 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-10020 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45515-10030 |
EP7# |
1 | ||
| 45515-10030 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45515-10040 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-10040 |
EP7# |
1 | ||
| 45516-16040 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45516-10040 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45516-10050 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45516-16040 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-10060 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45517-10040 |
EP7# |
1 | ||
| 45517-10040 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45517-10030 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-10020 |
EP7# |
1 | ||
| 45518-10020 |
EP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 45518-10010 |
EP71..DX,SE,TBS,TOR,XL W/POWER STEERING |
1 | ||
| 45518-10030 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90105-10155 | ||||
| 90179-10088 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||

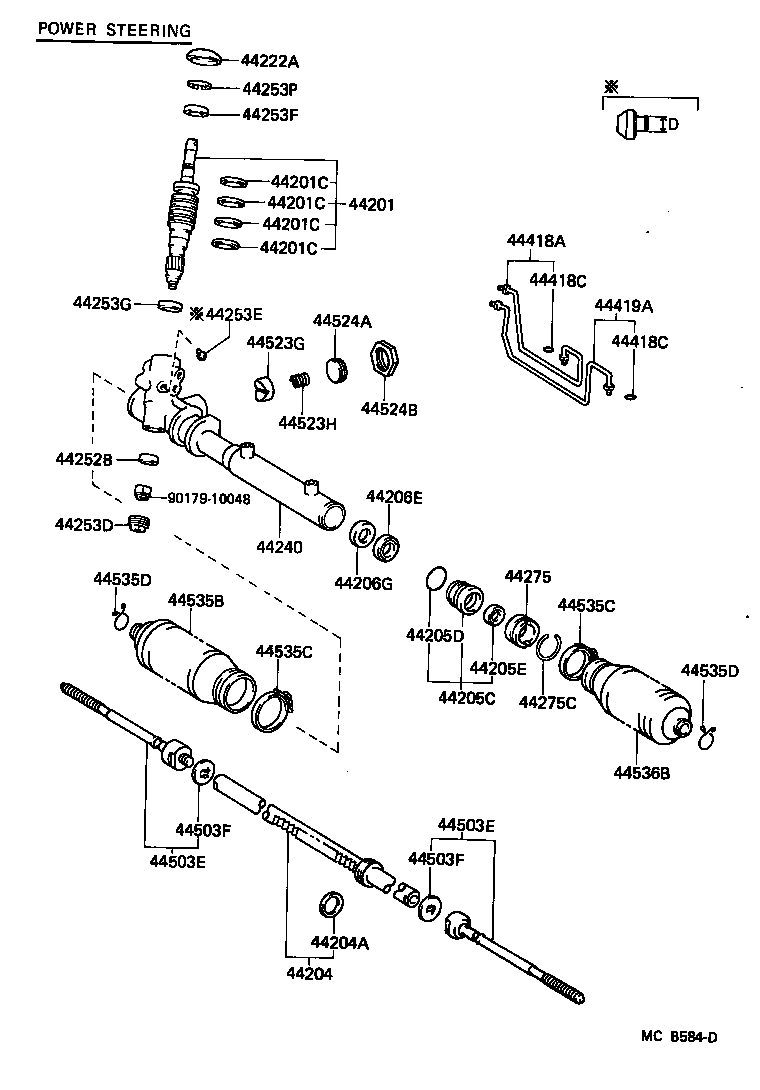

ILLUST NO. 2 OF 2(8410-8612)DX,SE,TBS,TOR,XL ; (8410- )DX,SE,SI,TBS,TOR,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-16030 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44201-10010 |
EP71..DX,SE,XL |
1 | ||
| 44201-10020 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44201-16030 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33003 |
EP71..DX,SE,TBS,TOR,XL |
4 | ||
| 90560-33003 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
4 | ||
| 90560-33003 |
EP71..DX,SE,TBS,TOR,XL |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33003 |
EP71..DX,SE,TBS,TOR,XL |
4 | ||
| 90560-33003 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
4 | ||
| 90560-33003 |
EP71..DX,SE,TBS,TOR,XL |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33003 |
EP71..DX,SE,TBS,TOR,XL |
4 | ||
| 90560-33003 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
4 | ||
| 90560-33003 |
EP71..DX,SE,TBS,TOR,XL |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33003 |
EP71..DX,SE,TBS,TOR,XL |
4 | ||
| 90560-33003 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
4 | ||
| 90560-33003 |
EP71..DX,SE,TBS,TOR,XL |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-10020 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44204-10010 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-34002 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 90562-32004 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44205C - BUSH SUB-ASSY, POWER STEERING RACK | ||||
| 44205-16020 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44205-10010 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44205D - RING, O(FOR POWER STEERING RACK BUSH) | ||||
| 96711-31030 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 90301-33004 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) | ||||
| 90311-22007 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 90311-22012 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 90311-22014 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90311-22011 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 90311-22007 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 90311-22013 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-23011 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 90560-23010 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-10040 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 45222-10040 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-10010 |
EP71..DX,SE,XL |
1 | ||
| 44240-10021 |
EP71..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44240-10010 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44240-10020 |
EP71..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-12006 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 90363-12006 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44253D - CAP, POWER STEERING RACK HOUSING | ||||
| 44283-16010 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44283-16010 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-05006 |
EP71..DX,SE,TBS,TOR,XL D=7.71-7.73 |
1 | ||
| 90410-05007 |
EP71..DX,SE,TBS,TOR,XL D=7.69-7.71 |
1 | ||
| 90410-05006 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL D=7.71-7.73 |
1 | ||
| 90410-05007 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL D=7.69-7.71 |
1 | ||
| 44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-19009 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 90311-19009 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-23004 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 90310-23004 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44253P - RING, HOLE SNAP(FOR POWER STEERING RACK HOUSING) | ||||
| 90521-40001 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 90521-40001 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-10010 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44275-16020 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-18001 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 90580-18001 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-10010 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44418-10010 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
EP71..DX,SE,TBS,TOR,XL |
4 | ||
| 90301-03001 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
EP71..DX,SE,TBS,TOR,XL |
4 | ||
| 90301-03001 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-10010 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44419-10010 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19075 |
EP71..DX,SE,TBS,TOR,XL |
2 | ||
| 45503-19075 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19075 |
EP71..DX,SE,TBS,TOR,XL |
2 | ||
| 45503-19075 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-12002 |
EP71..DX,SE,TBS,TOR,XL |
2 | ||
| 90214-12002 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-12002 |
EP71..DX,SE,TBS,TOR,XL |
2 | ||
| 90214-12002 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-10030 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 45523-10030 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23075 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 90501-23075 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-10030 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 45524-10030 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-30002 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 90179-30002 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-16020 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 45535-16020 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-56001 |
EP71..DX,SE,TBS,TOR,XL BOOT NO.1 |
1 | ||
| 90460-46001 |
EP71..DX,SE,TBS,TOR,XL BOOT NO.2 |
1 | ||
| 90460-56001 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL BOOT NO.1 |
1 | ||
| 90460-48002 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL BOOT NO.2 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-56001 |
EP71..DX,SE,TBS,TOR,XL BOOT NO.1 |
1 | ||
| 90460-46001 |
EP71..DX,SE,TBS,TOR,XL BOOT NO.2 |
1 | ||
| 90460-56001 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL BOOT NO.1 |
1 | ||
| 90460-48002 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL BOOT NO.2 |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
2 | ||
| 90467-18003 |
EP71..DX,SE,TBS,TOR,XL |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
2 | ||
| 90467-18003 |
EP71..DX,SE,TBS,TOR,XL |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45536-10070 |
EP71..DX,SE,TBS,TOR,XL |
1 | ||
| 45536-10070 |
EP71,NP70..DX,SE,SI,TBS,TOR,XL |
1 | ||
| Common parts | ||||
| 90179-10048 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
