EP71-PGMSE (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
2EELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )MTM

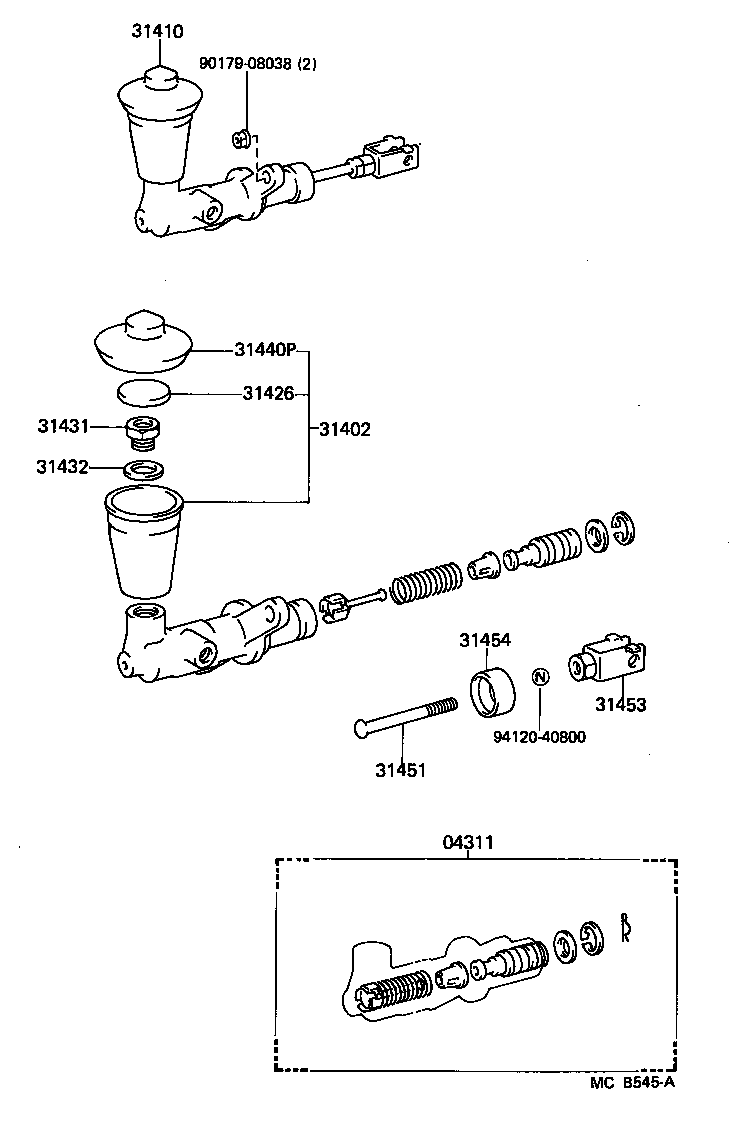

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-14030 |
EP7#..MTM |
1 | ||
| 04311-17030 |
EP7#..MTM |
1 | ||
| 04311-14041 |
EP7#,NP7#..MTM |
1 | ||
| 04311-14040 |
EP7#,NP7#..MTM |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-30060 |
EP7#,NP7#..MTM |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-10012 |
EP7#..MTM |
1 | ||
| 31410-10010 |
EP7#..MTM |
1 | ||
| 31410-10013 |
EP7#..MTM |
1 | ||
| 31410-10011 |
EP7#..MTM |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
EP7#,NP7#..MTM |
1 | ||
| 31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
EP7#,NP7#..MTM |
1 | ||
| 31432 - WASHER, CLUTCH RESERVOIR SET BOLT | ||||
| 47232-30010 |
EP7#,NP7#..MTM |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
EP7#,NP7#..MTM |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-22060 |
EP7#..MTM |
1 | ||
| 31451-20050 |
EP7#..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-10010 |
EP7#..MTM |
1 | ||
| 31453-10020 |
EP7#..MTM |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
EP7#..MTM |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 94120-40800 | ||||
