EP71-PGKRS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )CBR,DSL,EFI

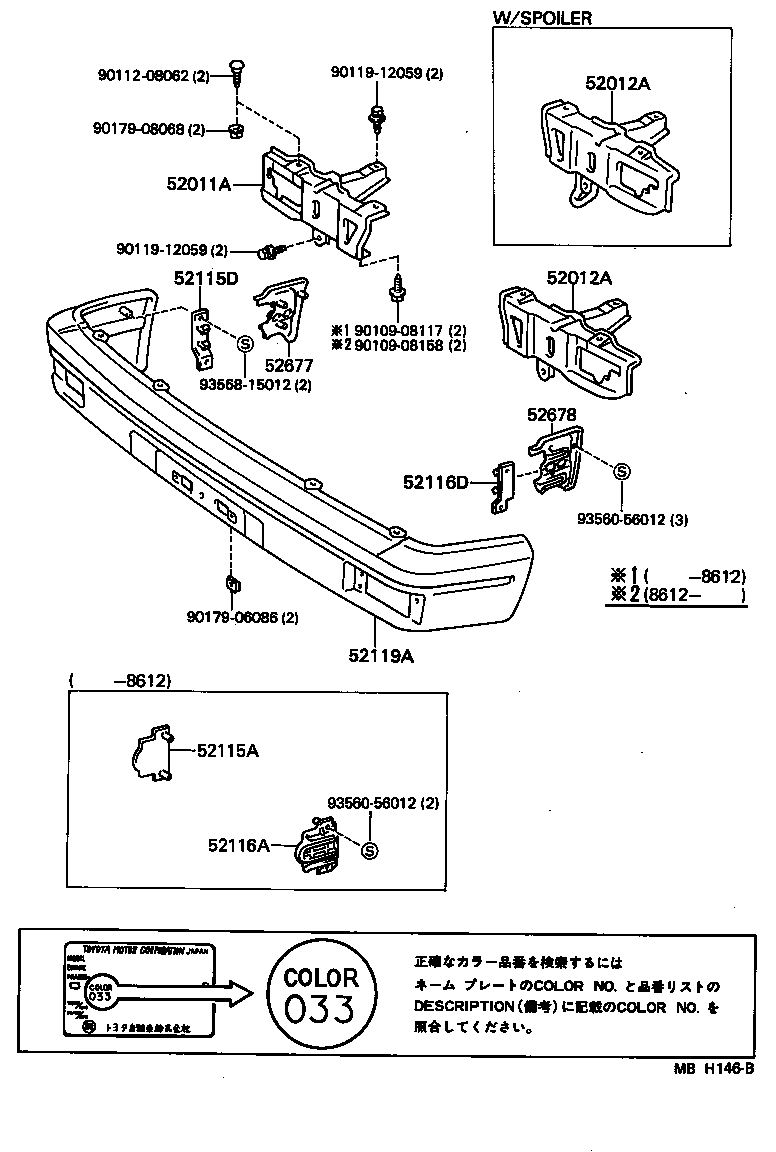

Click highlighted areas on diagram

diagram 52011A 52012A 52012A 52115A 52115D 52116A 52116D 52119A 52677 52678 9010908117 9010908158 9011208062 9011912059 9011912059 9017906086 9017908068 9356056012 9356056012 9356815012
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-10090

EP7#..CBR,EFI

 1
52011-10110

EP7#,NP7#..CBR,DSL,EFI

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-10120

EP7#,NP7#..CBR,DSL,EFI

 1
52012-10090

EP7#..CBR,EFI

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-10120

EP7#,NP7#..CBR,DSL,EFI

 1
52012-10090

EP7#..CBR,EFI

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52167-10020

EP7#..CBR,EFI

 1
52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH
52157-10020

EP7#..CBR,EFI

 1
52115-10070

EP7#,NP7#..CBR,DSL,EFI

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52167-10020

EP7#..CBR,EFI

 1
52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH
52116-10060

EP7#,NP7#..CBR,DSL,EFI

 1
52157-10020

EP7#..CBR,EFI

 1
52119A - COVER, FRONT BUMPER
52119-10060

EP7#..CBR,EFI

 1
52119-1012002

EP71,NP70..SE

RED,RED,3E6

 1
52119-10110

EP7#,NP7#..CD,CS,DX,RI,SI,STD,XL

BLACK

 1
52119-1012008

EP71,NP70..SE

WHITE,WHITE,041

 1
52119-1012003

EP71,NP70..SE

MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157

 1
52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52677-10010

EP7#,NP7#..CBR,DSL,EFI

 1
52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52678-10010

EP7#,NP7#..CBR,DSL,EFI

 1
Common parts
90109-08117
90109-08158
90112-08062
90119-12059
90179-06086
90179-08068
93560-56012
93568-15012
