EP71-PGKNS (1984)
Toyota Starlet

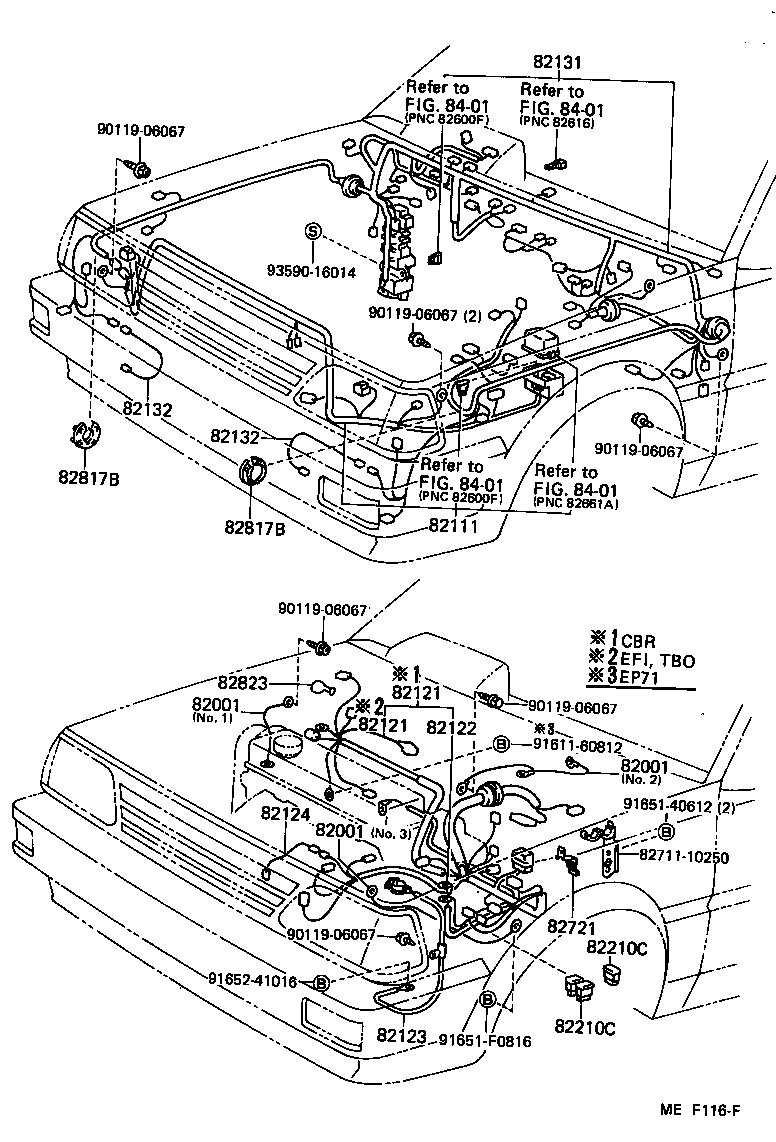

ILLUST NO. 1 OF 6(8410- )EP7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07241 |
EP7#,NP7# NO.1 |
1 | ||
| 90980-07242 |
EP7#,NP7# NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07241 |
EP7#,NP7# NO.1 |
1 | ||
| 90980-07242 |
EP7#,NP7# NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07241 |
EP7#,NP7# NO.1 |
1 | ||
| 90980-07242 |
EP7#,NP7# NO.2 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-10010 |
EP7#,NP7# |
1 | ||
| 82111-10010 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-10030 |
EP71..MTM..CBR |
1 | ||
| 82121-10040 |
EP71..MTM..CBR COLD SPEC |
1 | ||
| 82121-10250 |
EP71..MTM..CBR COLD SPEC |
1 | ||
| 82121-10251 |
EP71..MTM..CBR COLD SPEC |
1 | ||
| 82121-10240 |
EP71..MTM..CBR |
1 | ||
| 82121-10241 |
EP71..MTM..CBR |
1 | ||
| 82121-10252 |
EP71..MTM..CBR COLD SPEC |
1 | ||
| 82121-10242 |
EP71..MTM..CBR |
1 | ||
| 82121-10350 |
EP71..MTM..CBR COLD SPEC |
1 | ||
| 82121-10340 |
EP71..MTM..CBR |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-10030 |
EP71..MTM..CBR |
1 | ||
| 82121-10040 |
EP71..MTM..CBR COLD SPEC |
1 | ||
| 82121-10250 |
EP71..MTM..CBR COLD SPEC |
1 | ||
| 82121-10251 |
EP71..MTM..CBR COLD SPEC |
1 | ||
| 82121-10240 |
EP71..MTM..CBR |
1 | ||
| 82121-10241 |
EP71..MTM..CBR |
1 | ||
| 82121-10252 |
EP71..MTM..CBR COLD SPEC |
1 | ||
| 82121-10242 |
EP71..MTM..CBR |
1 | ||
| 82121-10350 |
EP71..MTM..CBR COLD SPEC |
1 | ||
| 82121-10340 |
EP71..MTM..CBR |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-10010 |
EP7# |
1 | ||
| 82122-10020 |
EP7# COLD SPEC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-10030 |
EP7# |
1 | ||
| 82123-10031 |
EP7# |
1 | ||
| 82123-10010 |
EP7#..CBR,EFI |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-10050 |
EP71..XL W/*RW & W/O *RCM |
1 | ||
| 82131-10020 |
EP71..XL |
1 | ||
| 82131-10090 |
EP71..SE,XL W/*SNR,W/*FRC,W/*RW & *DRC |
1 | ||
| 82131-10080 |
EP71..SE |
1 | ||
| 82131-10060 |
EP71..XL W/*DRC & W/O *RW |
1 | ||
| 82131-10061 |
EP71..XL W/*DRC & W/O *RW |
1 | ||
| 82131-10051 |
EP71..XL W/*RW & W/O *RCM |
1 | ||
| 82131-10021 |
EP71..XL |
1 | ||
| 82131-10091 |
EP71..SE,XL W/*SNR,W/*FRC,W/*RW & *DRC |
1 | ||
| 82131-10730 |
EP71..XL W/*RW & *DRC |
1 | ||
| 82131-10730 |
EP71..SE |
1 | ||
| 82131-10740 |
EP71..SE,XL W/*PW OR *SNR |
1 | ||
| 82131-10082 |
EP71..SE |
1 | ||
| 82131-10690 |
EP71..XL |
1 | ||
| 82131-10710 |
EP71..XL W/*RW |
1 | ||
| 82131-10731 |
EP71..SE |
1 | ||
| 82131-10720 |
EP71..XL W/*DRC |
1 | ||
| 82131-10731 |
EP71..XL W/*RW & *DRC |
1 | ||
| 82131-10741 |
EP71..SE,XL W/*PW OR *SNR |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
EP7#,NP7# 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A |
2 | ||
| 90982-08190 |
EP7#,NP7# 60A,ﾒｽ端子,黄,60A |
3 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
EP7#,NP7# 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A |
2 | ||
| 90982-08190 |
EP7#,NP7# 60A,ﾒｽ端子,黄,60A |
3 | ||
| 82721 - BRACKET, WIRING HARNESS, NO.1 | ||||
| 82822-10010 |
EP71..MTM..(CBR,EFI) |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-22280 |
EP7#,NP7# |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-22280 |
EP7#,NP7# |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
EP7#,NP7# ALTERNATOR |
1 | ||
| 82823-20040 |
EP7# |
1 | ||
| Common parts | ||||
| 82711-10250 | ||||
| 90119-06067 | ||||
| 91611-60812 | ||||
| 91651-40612 | ||||
| 91651-F0816 | ||||
| 91652-41016 | ||||
| 93590-16014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

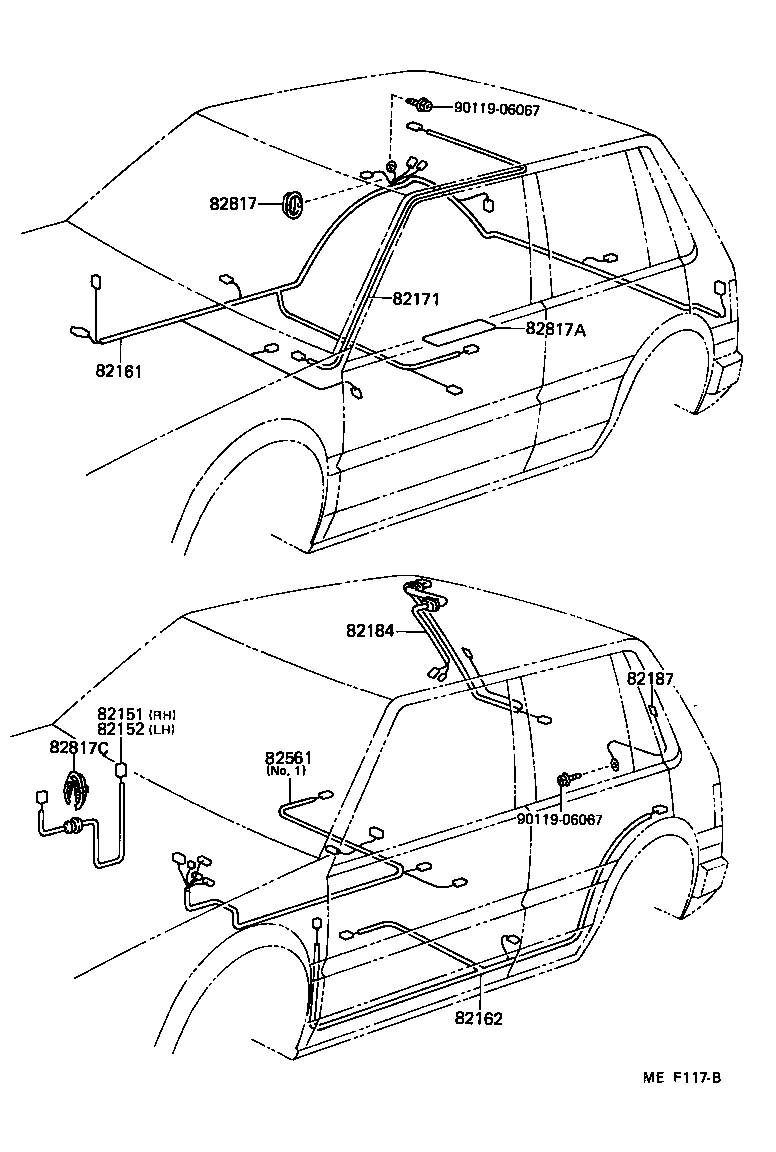

ILLUST NO. 2 OF 6(8410-8612)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-10021 |
EP71..3D..(RI,SI,TBS,TOR,XL) |
1 | ||
| 82151-10030 |
EP71..3D..(SI,TBS,XL) W/*DRC |
1 | ||
| 82151-10020 |
EP71..3D..(RI,SI,TBS,TOR,XL) |
1 | ||
| 82151-10040 |
EP71..3D..(SI,TBS,XL) W/*PW,W/*PW & *DRC |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-10020 |
EP71..3D..(SI,TBS,XL) W/*PW & *DRC |
1 | ||
| 82151-10030 |
EP71..3D..(SI,TBS,XL) W/*DRC |
1 | ||
| 82151-10020 |
EP71..3D..(RI,SI,TBS,TOR,XL) |
1 | ||
| 82151-10021 |
EP71..3D..(RI,SI,TBS,TOR,XL) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-10021 |
EP7#..CD,DX,SE,XL W/*RW,W/*RWD & *RW |
1 | ||
| 82161-10210 |
EP7#..CD,CS,DX,STD,XL W/*RWD |
1 | ||
| 82161-10020 |
EP7#..CD,DX,SE,XL W/*RW,W/*RWD & *RW |
1 | ||
| 82161-10240 |
EP7#,NP70 W/*RW |
1 | ||
| 82161-10211 |
EP7#..CD,CS,DX,STD,XL W/*RWD |
1 | ||
| 82161-10241 |
EP7#,NP70 W/*RW |
1 | ||
| 82161-10240 |
EP71,NP70..SE |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-10010 |
EP7#..(2D,3D)..MTM..(CD,DX,RI,SI,TBS,TOR,XL) |
1 | ||
| 82162-10120 |
EP7#,NP7#..(2D,3D)..MTM..(CD,DX,RI,SI,TBS,TOR,XL) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-10030 |
EP71..RI,SE,SI,TBS,TOR W/SUN ROOF |
1 | ||
| 82171-10010 |
EP7#,NP7# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-10010 |
EP7#..CD,CS,DX,RI,STD,XL W/*RWD |
1 | ||
| 82184-10011 |
EP7#..CD,CS,DX,RI,STD,TOR,XL W/*RWD |
1 | ||
| 82184-10040 |
EP7#,NP7#..CD,CS,DX,RI,STD,TOR,XL W/*RWD |
1 | ||
| 82184-10020 |
EP7#..CD,DX,RI,SE,SI,XL W/*RWD & *RW |
1 | ||
| 82184-10021 |
EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL W/*RWD & *RW |
1 | ||
| 82184-10050 |
EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL W/*RWD & *RW |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-10010 |
EP7#,NP7# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10140 |
EP7#,NP7# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16010 |
EP7#,NP7# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-22290 |
EP71..RI,SE,SI,TBS,TOR,XL |
2 | ||
| 82817-22290 |
EP71,NP70..SE,SI,TBS,XL |
2 | ||
| Common parts | ||||
| 90119-06067 | ||||

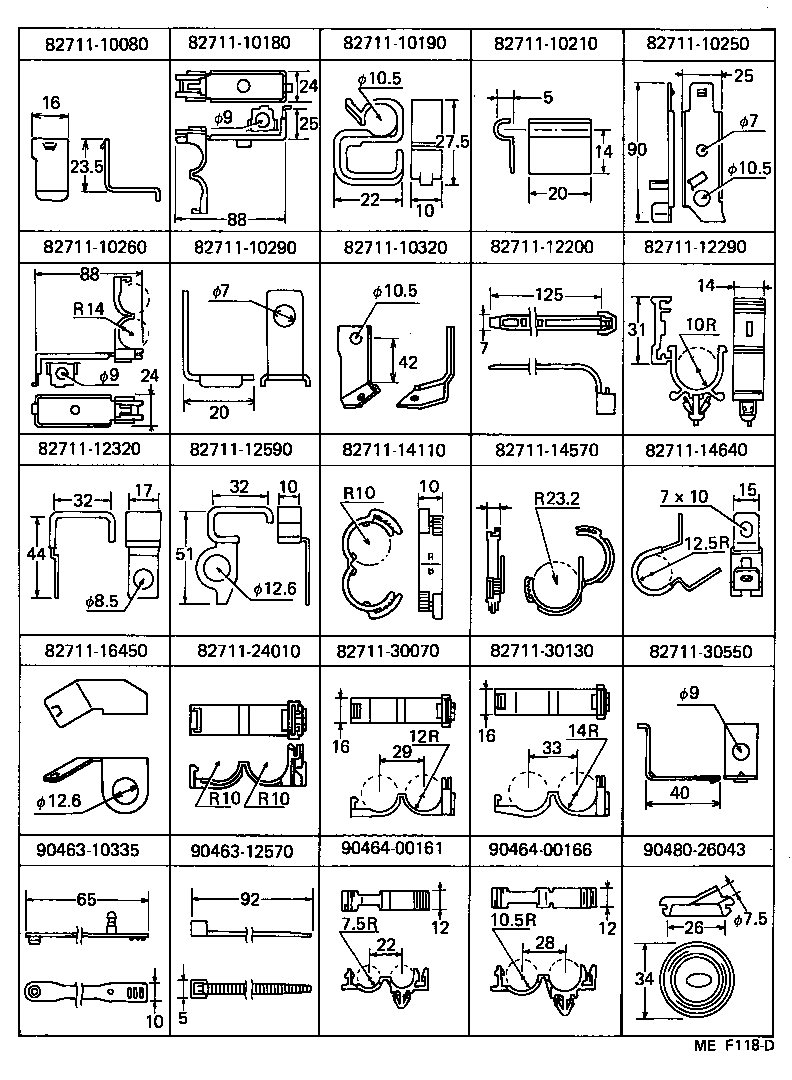

ILLUST NO. 3 OF 6(8410- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10080 | ||||
| 82711-10180 | ||||
| 82711-10190 | ||||
| 82711-10210 | ||||
| 82711-10250 | ||||
| 82711-10260 | ||||
| 82711-10290 | ||||
| 82711-10320 | ||||
| 82711-12200 | ||||
| 82711-12290 | ||||
| 82711-12320 | ||||
| 82711-12590 | ||||
| 82711-14110 | ||||
| 82711-14570 | ||||
| 82711-14640 | ||||
| 82711-16450 | ||||
| 82711-24010 | ||||
| 82711-30070 | ||||
| 82711-30130 | ||||
| 82711-30550 | ||||
| 90463-10335 | ||||
| 90463-12570 | ||||
| 90464-00161 | ||||
| 90464-00166 | ||||
| 90480-26043 | ||||
ILLUST NO. 5 OF 6(8410- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-22010 |
EP7#,NP7# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82985-12010 |
EP7#,NP7# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22040 |
EP7#..CBR,EFI |
1 | ||
| 82983-10020 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 82983-10020 |
EP7#,NP7# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22040 |
EP7#..CBR,EFI |
1 | ||
| 82983-10020 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 82983-10020 |
EP7#,NP7# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
EP7#,NP7# |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-16010 |
EP7#,NP7# |
1 | ||
| Common parts | ||||
| 82981-22010 | ||||
| 82983-10010 | ||||
| 82983-22040 | ||||
| 82984-22010 | ||||
| 82985-12010 | ||||
| 82985-16010 | ||||

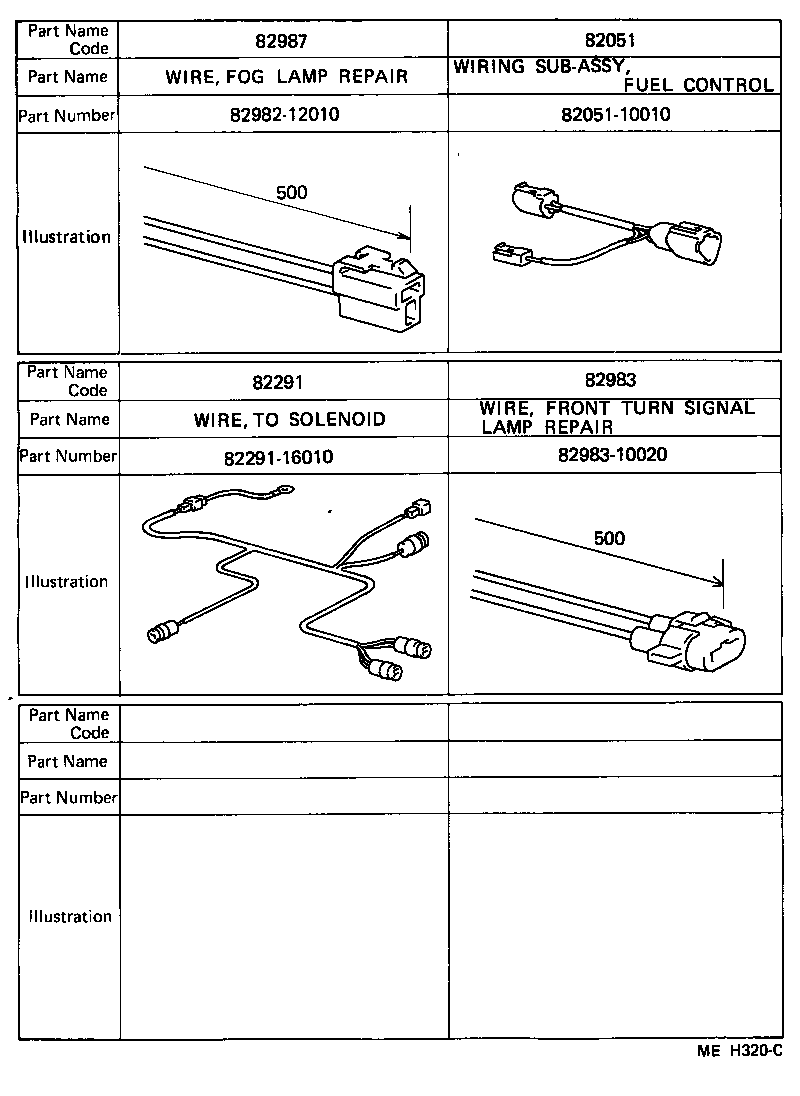

ILLUST NO. 6 OF 6(8410- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82051 - HARNESS ASSY, FUEL CONTROL | ||||
| 82051-10010 |
EP71..CBR |
1 | ||
| 82291 - WIRING, TO SOLENOID | ||||
| 82291-16010 |
EP71..CBR |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22040 |
EP7#..CBR,EFI |
1 | ||
| 82983-10020 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 82983-10020 |
EP7#,NP7# |
1 | ||
| Common parts | ||||
| 82051-10010 | ||||
| 82291-16010 | ||||
| 82982-12010 | ||||
| 82983-10020 | ||||

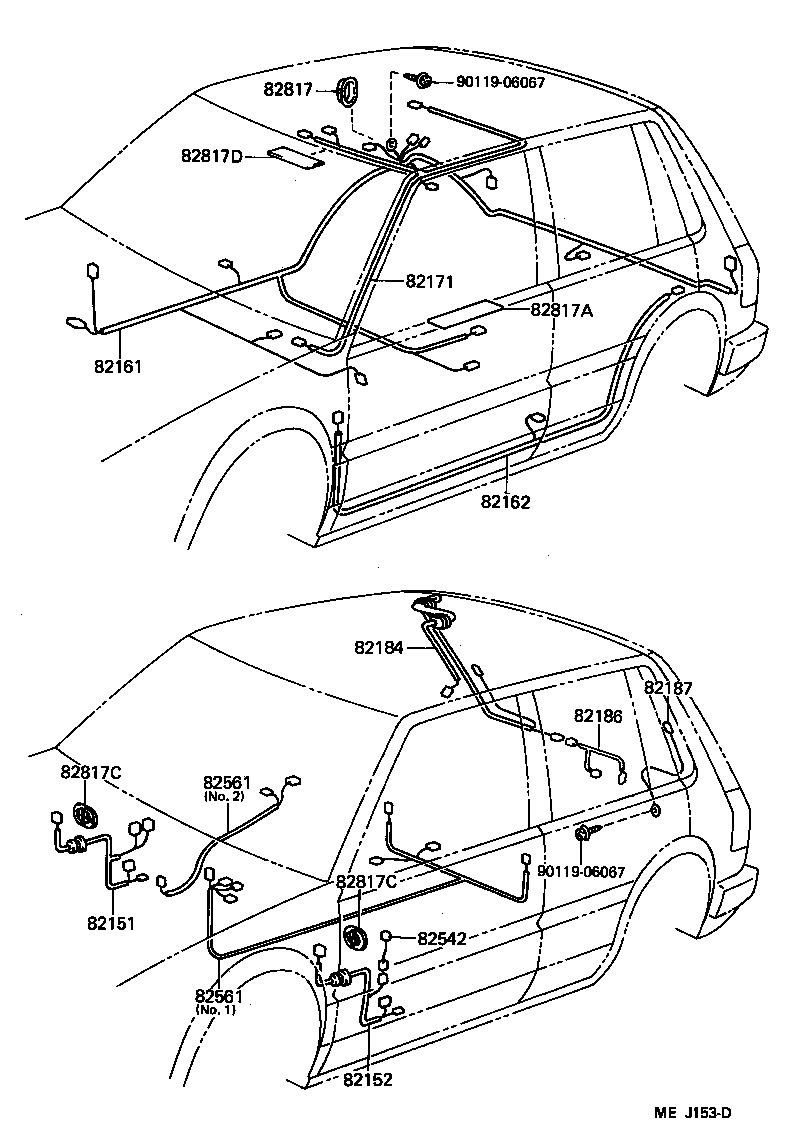

ILLUST NO. 2 OF 6(8612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-10021 |
EP71..3D..(RI,SI,TBS,TOR,XL) |
1 | ||
| 82151-10030 |
EP71..3D..(SI,TBS,XL) W/*DRC |
1 | ||
| 82151-10020 |
EP71..3D..(RI,SI,TBS,TOR,XL) |
1 | ||
| 82151-10040 |
EP71..3D..(SI,TBS,XL) W/*PW,W/*PW & *DRC |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-10020 |
EP71..3D..(SI,TBS,XL) W/*PW & *DRC |
1 | ||
| 82151-10030 |
EP71..3D..(SI,TBS,XL) W/*DRC |
1 | ||
| 82151-10020 |
EP71..3D..(RI,SI,TBS,TOR,XL) |
1 | ||
| 82151-10021 |
EP71..3D..(RI,SI,TBS,TOR,XL) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-10021 |
EP7#..CD,DX,SE,XL W/*RW,W/*RWD & *RW |
1 | ||
| 82161-10210 |
EP7#..CD,CS,DX,STD,XL W/*RWD |
1 | ||
| 82161-10020 |
EP7#..CD,DX,SE,XL W/*RW,W/*RWD & *RW |
1 | ||
| 82161-10240 |
EP7#,NP70 W/*RW |
1 | ||
| 82161-10211 |
EP7#..CD,CS,DX,STD,XL W/*RWD |
1 | ||
| 82161-10241 |
EP7#,NP70 W/*RW |
1 | ||
| 82161-10240 |
EP71,NP70..SE |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-10010 |
EP7#..(2D,3D)..MTM..(CD,DX,RI,SI,TBS,TOR,XL) |
1 | ||
| 82162-10120 |
EP7#,NP7#..(2D,3D)..MTM..(CD,DX,RI,SI,TBS,TOR,XL) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-10030 |
EP71..RI,SE,SI,TBS,TOR W/SUN ROOF |
1 | ||
| 82171-10010 |
EP7#,NP7# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-10010 |
EP7#..CD,CS,DX,RI,STD,XL W/*RWD |
1 | ||
| 82184-10011 |
EP7#..CD,CS,DX,RI,STD,TOR,XL W/*RWD |
1 | ||
| 82184-10040 |
EP7#,NP7#..CD,CS,DX,RI,STD,TOR,XL W/*RWD |
1 | ||
| 82184-10020 |
EP7#..CD,DX,RI,SE,SI,XL W/*RWD & *RW |
1 | ||
| 82184-10021 |
EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL W/*RWD & *RW |
1 | ||
| 82184-10050 |
EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL W/*RWD & *RW |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-10010 |
EP7#,NP7# |
1 | ||
| 82542 - WIRING ASSY, POWER WINDOW, FRONT RH | ||||
| 82542-10010 |
EP71,NP70..SE,SI,TBS,XL |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10140 |
EP7#,NP7# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16010 |
EP7#,NP7# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-22290 |
EP71..RI,SE,SI,TBS,TOR,XL |
2 | ||
| 82817-22290 |
EP71,NP70..SE,SI,TBS,XL |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-22290 |
EP71..RI,SE,SI,TBS,TOR,XL |
2 | ||
| 82817-22290 |
EP71,NP70..SE,SI,TBS,XL |
2 | ||
| Common parts | ||||
| 90119-06067 | ||||
ILLUST NO. 4 OF 6(8410- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10310 | ||||
| 82711-20880 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
