EP71-PGKNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

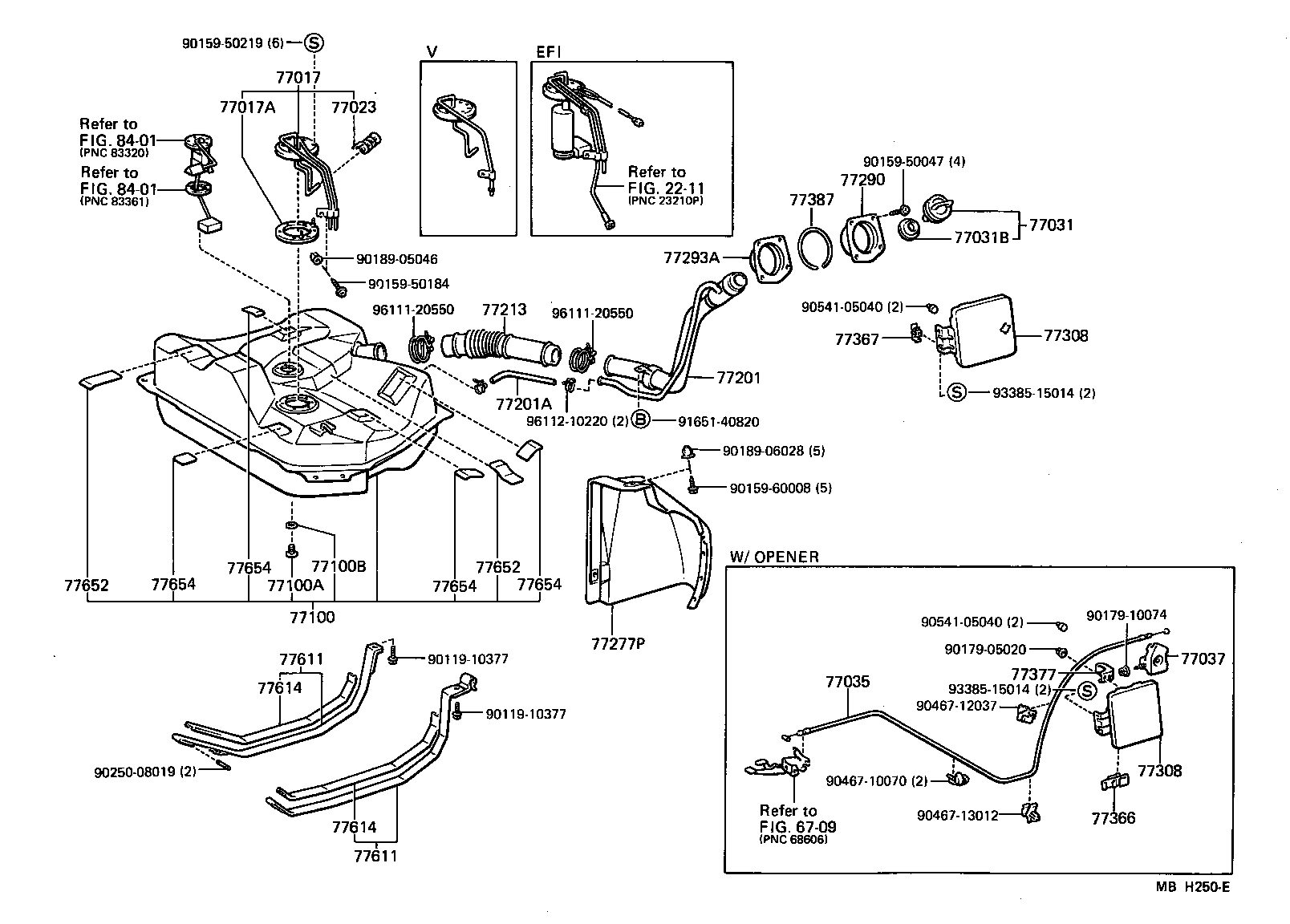

ILLUST NO. 1 OF 2(8410- )

Click highlighted areas on diagram

diagram 2211 6709 77017 77017A 77023 77031 77031B 77035 77037 77100 77100A 77100B 77201 77201A 77213 77277P 77290 77293A 77308 77308 77366 77367 77377 77387 77611 77611 77614 77614 77652 77652 77654 77654 77654 77654 8401 8401 9011910377 9011910377 9015950047 9015950184 9015950219 9015960008 9017905020 9017910074 9018905046 9018906028 9025008019 9046710070 9046712037 9046713012 9054105040 9054105040 9165140820 9338515014 9338515014 9611120550 9611120550 9611210220
Part # Description Qty Price
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-10010

EP71..CBR

 1
77017A - GASKET, FUEL TANK VENT
77169-32010

EP7#,NP7#..CBR,DSL

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-14030

EP7#..CBR

 1
77031 - CAP ASSY, FUEL TANK
77310-12100

EP7#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

EP7#,NP7#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-10020

EP71,NP70..SE,SI,TBS,XL

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-12040

EP71,NP70..SE,SI,TBS,XL

 1
77100 - TANK ASSY, FUEL
77001-10914

EP7#..CBR

COLD SPEC

 1
77001-10912

EP7#..CBR

 1
77001-10918

EP7#..CBR

COLD SPEC

 1
77001-10918

EP7#..CBR

 1
77100A - PLUG(FOR FUEL TANK)
90341-20004

EP7#

COLD SPEC

 1
90341-20003

EP7#

COLD SPEC

 1
77100B - GASKET(FOR FUEL TANK)
90430-20006

EP7#

COLD SPEC

 1
90430-20007

EP7#

COLD SPEC

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-10100

EP7#,NP7#

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
90445-22913

EP7#,NP7#

長さ=300

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-10060

EP7#,NP7#

 1
77277P - PROTECTOR(FOR FUEL RETURN HOSE)
77277-10020

EP7#,NP7#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-16010

EP7#,NP7#

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-16010

EP7#,NP7#

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-10040

EP71,NP70..SE,SI,TBS,XL

 1
77350-10030

EP7#

 1
77350-10031

EP7#

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-10040

EP71,NP70..SE,SI,TBS,XL

 1
77350-10030

EP7#

 1
77350-10031

EP7#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-10010

EP71..SE,SI,TBS,XL

 1
77367 - STOPPER, FUEL FILLER OPENING LID
77358-10010

EP7#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20030

EP71,NP70..SE,SI,TBS,XL

 1
77387 - RING, FUEL INLET BOX
77391-14020

EP7#,NP7#

 1
77611 - BAND, FUEL TANK
77601-10060

EP7#,NP7#..CBR,DSL

RH

 1
77602-10060

EP7#,NP7#

LH

 1
77611 - BAND, FUEL TANK
77601-10060

EP7#,NP7#..CBR,DSL

RH

 1
77602-10060

EP7#,NP7#

LH

 1
77614 - SEAT, FUEL TANK BAND
77681-10010

EP7#,NP7#

 2
77682-10010

EP7#

LH

 1
77681-10010

EP7#

RH

 1
77614 - SEAT, FUEL TANK BAND
77681-10010

EP7#,NP7#

 2
77682-10010

EP7#

LH

 1
77681-10010

EP7#

RH

 1
77652 - CUSHION, FUEL TANK, NO.1
77651-10050

EP7#,NP7#

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-10050

EP7#,NP7#

 2
77654 - CUSHION, FUEL TANK, NO.2
77652-10060

EP7#,NP7#

 4
77654 - CUSHION, FUEL TANK, NO.2
77652-10060

EP7#,NP7#

 4
77654 - CUSHION, FUEL TANK, NO.2
77652-10060

EP7#,NP7#

 4
77654 - CUSHION, FUEL TANK, NO.2
77652-10060

EP7#,NP7#

 4
Common parts
90119-10377
90159-50047
90159-50184
90159-50219
90159-60008
90179-05020
90179-10074
90189-05046
90189-06028
90250-08019
90467-10070
90467-12037
90467-13012
90541-05040
91651-40820
93385-15014
96111-20550
96112-10220
Linked diagrams
2211
6709
8401

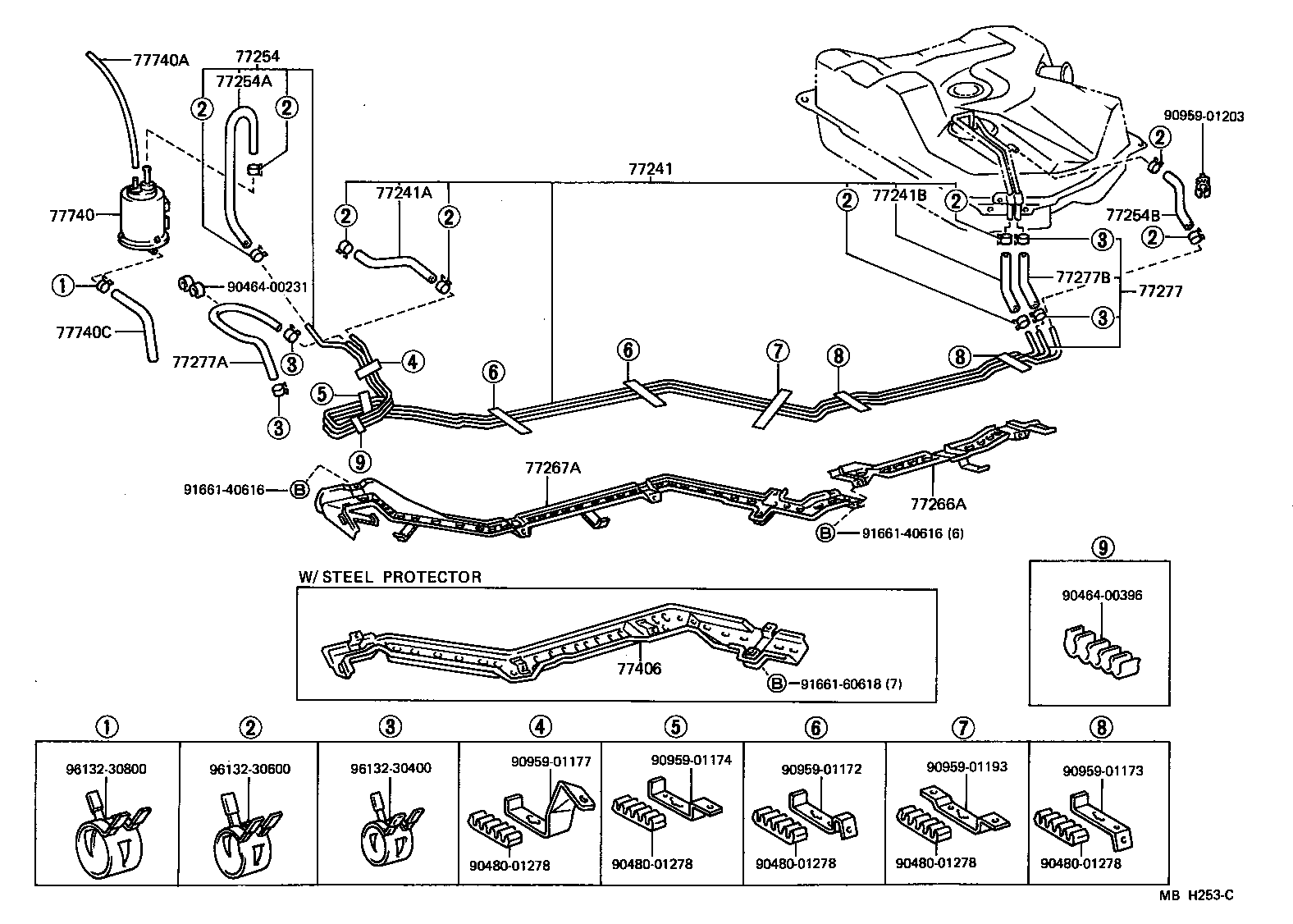

ILLUST NO. 2 OF 2(8410- )EP71..CBR

Click highlighted areas on diagram

diagram 77241 77241A 77241B 77254 77254A 77254B 77266A 77267A 77277 77277A 77277B 77406 77740 77740A 77740C 9046400231 9046400396 9048001278 9048001278 9048001278 9048001278 9048001278 9095901172 9095901173 9095901174 9095901177 9095901193 9095901203 9166140616 9166140616 9166160618 9613230400 9613230600 9613230800
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77205-10100

EP7#..CBR

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06020

EP7#..CBR

*H,L=160

 1
95333-06016

EP7#..CBR

*H,L=160

 1
95333-06020

EP7#..CBR

*H,L=200

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-06020

EP7#..CBR

*H,L=120

 1
95333-06020

EP7#..CBR

*H,L=120

 1
95333-06020

EP7#..CBR

*H,L=120

 1
77254 - TUBE, FUEL EMISSION, NO.1
77019-10010

EP7#

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77249-10040

EP7#

 1
95332-06030

EP7#

*H,L=240

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95333-06030

EP7#

*H,L=260

 1
95332-06030

EP7#

*H,L=260

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-10020

EP7#,NP7#

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-10040

EP7#,NP7#

 1
77277 - TUBE, FUEL RETURN, NO.1
77207-10060

EP71..CBR

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-04038

EP71..CBR

*H,L=380

 1
95332-04040

EP71..CBR

*H,L=360

 1
95333-04040

EP71..CBR

*H,L=380

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-04020

EP71..CBR

*H,長さ=120,ID=4

 1
95333-04020

EP71..CBR

*H,L=120

 1
95332-04020

EP71..CBR

*H,L=110

 1
95333-04012

EP71..CBR

*H,L=120

 1
77406 - PROTECTOR SUB-ASSY, FUEL TUBE
77406-10010

EP7#,NP7#

 1
77740 - CANISTER ASSY, CHARCOAL
77704-14230

EP7#

 1
77704-10120

EP7#

 1
77704-10110

EP7#

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92002

EP7#..CBR

*H,L=100

 1
95411-19930

EP7#..CBR

*H,L=100,ﾏｰｸ=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
95332-08030

EP7#

*H,L=240,内径=7.6

 1
95333-08030

EP7#

*H,L=240

 1
Common parts
90464-00231
90464-00396
90480-01278
90959-01172
90959-01173
90959-01174
90959-01177
90959-01193
90959-01203
91661-40616
91661-60618
96132-30400
96132-30600
96132-30800
