EP71-PGKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )MTM

Click highlighted areas on diagram

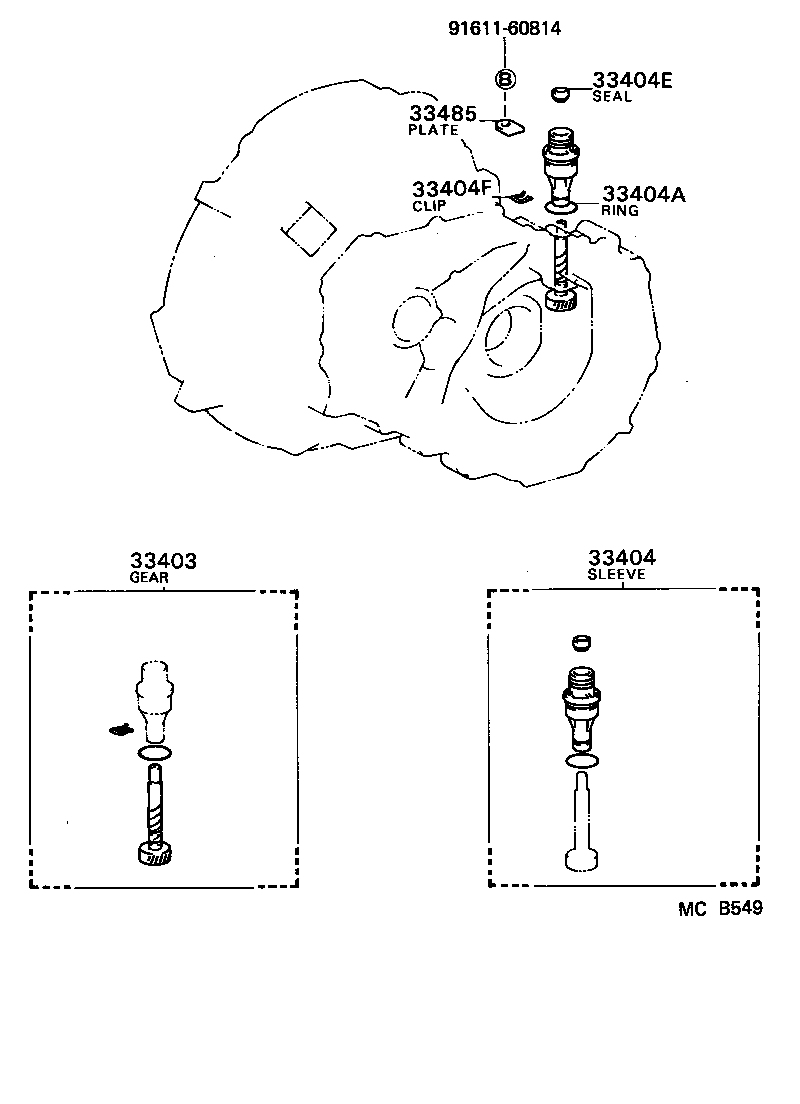

diagram 33403 33404 33404A 33404E 33404F 33485 9161160814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19355

EP7#..MTM..(CD,CS,DX,RI,SE,SI,TBS,TOR,XL)

歯数=31,ﾏｰｸ 31:34,N=31

 1
33403-19355

EP76,NP7#..MTM;EP71..3D..4F..DX;EP71..MTM..(RI,SE,SI,TBS,TOR,XL)

歯数=31,ﾏｰｸ 31:34,N=31

 1
33403-19365

EP71..4F..(DX,STD)

歯数=32,ﾏｰｸ 32:34,N=32,135SR13 TIRE

 1
33403-19365

EP71..MTM..CBR

歯数=32,ﾏｰｸ 32:34,N=32,135SR13 TIRE

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-12030

EP7#,NP7#..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96711-24030

EP7#,NP7#..MTM

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

EP7#,NP7#..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

EP7#,NP7#..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

EP7#,NP7#..MTM

 1
Common parts
91611-60814
