EP71-PGHDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )SE

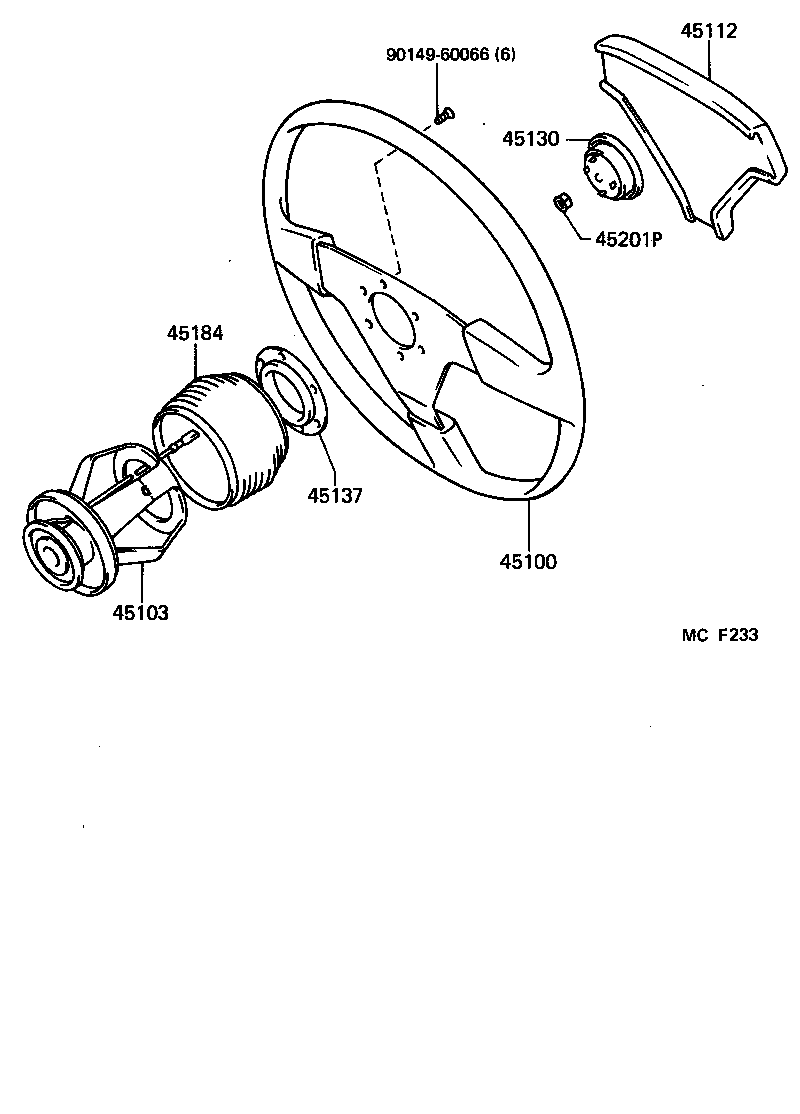

Click highlighted areas on diagram

diagram 45100 45105 45130 45180 45201P 9331914010 9351015014 9351015014 9354044016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1025004

EP71..SE

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUE,BLUE,TRIM8#

 1
45100-1027002

EP71..DX

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,SOLEIL-L,MAROON,MAROON,TRIM3#

 1
45100-1027001

EP7#..CD,CS,DX,STD,XL

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLACK,BLACK,TRIM1#,8#

 1
45100-1029001

EP7#,NP7#..CD,CS,DX,STD,XL

BLACK,BLACK,TRIM1#

 1
45100-1025001

EP71,NP70..SE

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,BLACK,TRIM1#

 1
45100-1025016

EP71,NP70..SE

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BROWN,BROWN,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-10010

EP7#,NP7#..CD,CS,DX,RI,SI,STD,XL

 1
45105-10020

EP71,NP70..SE

 1
45130 - BUTTON ASSY, HORN
45130-1006001

EP71..SE

BLACK,BLACK,TRIM1#

 1
45130-1006004

EP71..SE

BLUE,BLUE,TRIM8#

 1
45130-1012001

EP71,NP70..SE

BLACK,BLACK,TRIM1#

 1
45130-1012006

EP71,NP70..SE

BROWN,BROWN,TRIM4#

 1
45130-1010001

EP7#,NP7#..CD,CS,DX,STD,XL

BLACK,BLACK,TRIM1#

 1
45130-1008001

EP7#..CD,CS,DX,STD,XL

BLACK,BLACK,TRIM1#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1601001

EP71,NP70..SE

BLACK,BLACK,TRIM1#

 1
45180-1601016

EP71,NP70..SE

BROWN,BROWN,TRIM4#

 1
45180-1601004

EP71..SE

BLUE,BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

EP7#,NP7#

 1
Common parts
93319-14010
93510-15014
93540-44016

(8410- )CD,CS,DX,RI,SI,STD,XL

Click highlighted areas on diagram

diagram 45100 45105 45130 45201P 45207 9351015014 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1025004

EP71..SE

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUE,BLUE,TRIM8#

 1
45100-1027002

EP71..DX

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,SOLEIL-L,MAROON,MAROON,TRIM3#

 1
45100-1027001

EP7#..CD,CS,DX,STD,XL

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLACK,BLACK,TRIM1#,8#

 1
45100-1029001

EP7#,NP7#..CD,CS,DX,STD,XL

BLACK,BLACK,TRIM1#

 1
45100-1025001

EP71,NP70..SE

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,BLACK,TRIM1#

 1
45100-1025016

EP71,NP70..SE

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BROWN,BROWN,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-10010

EP7#,NP7#..CD,CS,DX,RI,SI,STD,XL

 1
45105-10020

EP71,NP70..SE

 1
45130 - BUTTON ASSY, HORN
45130-1006001

EP71..SE

BLACK,BLACK,TRIM1#

 1
45130-1006004

EP71..SE

BLUE,BLUE,TRIM8#

 1
45130-1012001

EP71,NP70..SE

BLACK,BLACK,TRIM1#

 1
45130-1012006

EP71,NP70..SE

BROWN,BROWN,TRIM4#

 1
45130-1010001

EP7#,NP7#..CD,CS,DX,STD,XL

BLACK,BLACK,TRIM1#

 1
45130-1008001

EP7#..CD,CS,DX,STD,XL

BLACK,BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

EP7#,NP7#

 1
45207 - RING, HORN CONTACT
45176-35020

EP7#,NP7#..CD,CS,DX,RI,SI,STD,XL

 1
Common parts
93510-15014

(8708-8709) ; (8901-8903)

Click highlighted areas on diagram

TURBO S LIMITED

diagram 45100 45103 45112 45130 45137 45184 45201P 9014960066
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1025004

EP71..SE

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUE,BLUE,TRIM8#

 1
45100-1027002

EP71..DX

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,SOLEIL-L,MAROON,MAROON,TRIM3#

 1
45100-1027001

EP7#..CD,CS,DX,STD,XL

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLACK,BLACK,TRIM1#,8#

 1
45100-1029001

EP7#,NP7#..CD,CS,DX,STD,XL

BLACK,BLACK,TRIM1#

 1
45100-1025001

EP71,NP70..SE

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,BLACK,TRIM1#

 1
45100-1025016

EP71,NP70..SE

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BROWN,BROWN,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-1006001

EP71..SE

BLACK,BLACK,TRIM1#

 1
45130-1006004

EP71..SE

BLUE,BLUE,TRIM8#

 1
45130-1012001

EP71,NP70..SE

BLACK,BLACK,TRIM1#

 1
45130-1012006

EP71,NP70..SE

BROWN,BROWN,TRIM4#

 1
45130-1010001

EP7#,NP7#..CD,CS,DX,STD,XL

BLACK,BLACK,TRIM1#

 1
45130-1008001

EP7#..CD,CS,DX,STD,XL

BLACK,BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

EP7#,NP7#

 1
Common parts
90149-60066
