AE92-BCPXF (1987)
Toyota Sprinter Trueno
Production
May 1987
-
May 1989
Engine
4AGE
Transmission
EFI GTV
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )

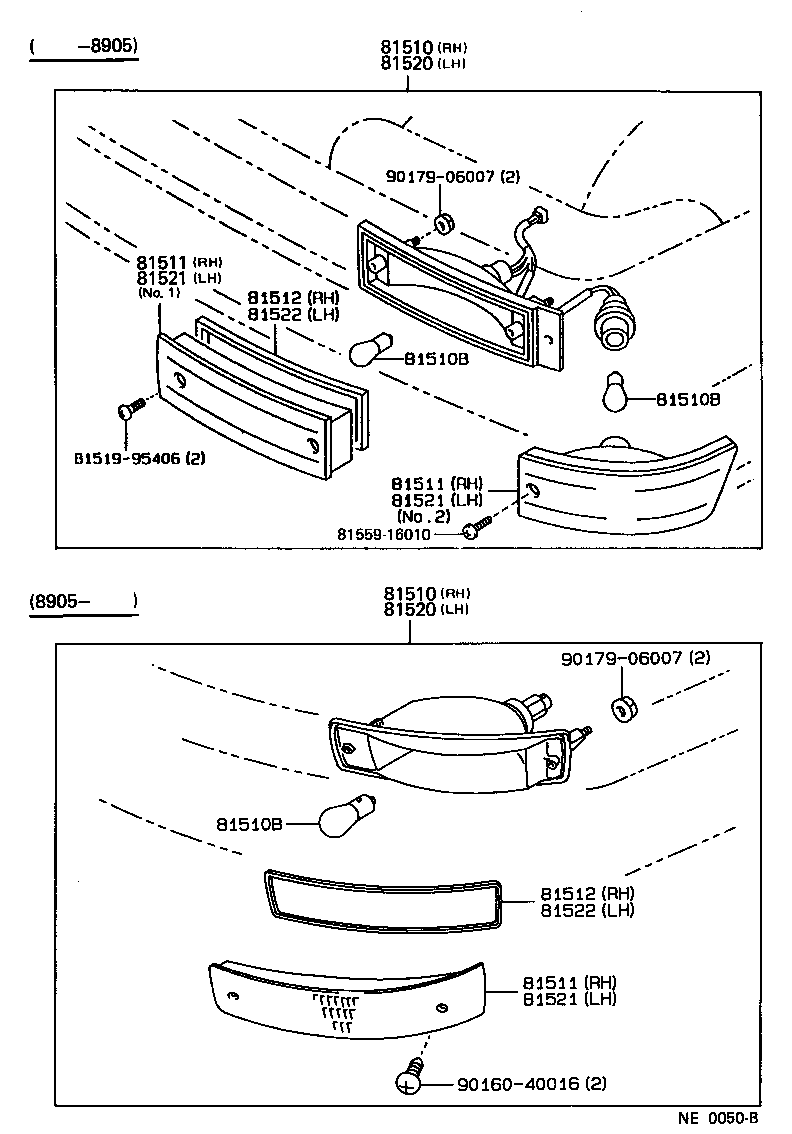

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80052 |
AE9# |
1 | ||
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80052 |
AE9# |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-13037 |
AE9# 12V 35W,CORNERING |
2 | ||
| 99132-11210 |
AE9# 12V 21W,TURN |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-13037 |
AE9# 12V 35W,CORNERING |
2 | ||
| 99132-11210 |
AE9# 12V 21W,TURN |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-13037 |
AE9# 12V 35W,CORNERING |
2 | ||
| 99132-11210 |
AE9# 12V 21W,TURN |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-12550 |
AE9# NO.2 |
1 | ||
| 81514-12550 |
AE9# NO.1 |
1 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-12550 |
AE9# NO.2 |
1 | ||
| 81514-12550 |
AE9# NO.1 |
1 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-12550 |
AE9# NO.2 |
1 | ||
| 81514-12550 |
AE9# NO.1 |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-12550 |
AE9# |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-12550 |
AE9# |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80052 |
AE9# |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80052 |
AE9# |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81524-12550 |
AE9# NO.1 |
1 | ||
| 81521-12550 |
AE9# NO.2 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81524-12550 |
AE9# NO.1 |
1 | ||
| 81521-12550 |
AE9# NO.2 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81524-12550 |
AE9# NO.1 |
1 | ||
| 81521-12550 |
AE9# NO.2 |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-12550 |
AE9# |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-12550 |
AE9# |
1 | ||
| Common parts | ||||
| 81519-95406 | ||||
| 81559-16010 | ||||
| 90160-40016 | ||||
| 90179-06007 | ||||
