AE92-BCPVF (1987)

Toyota Sprinter Trueno

Production May 1987 - Jun 1991
Engine 4AGE
Transmission EFI GT
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

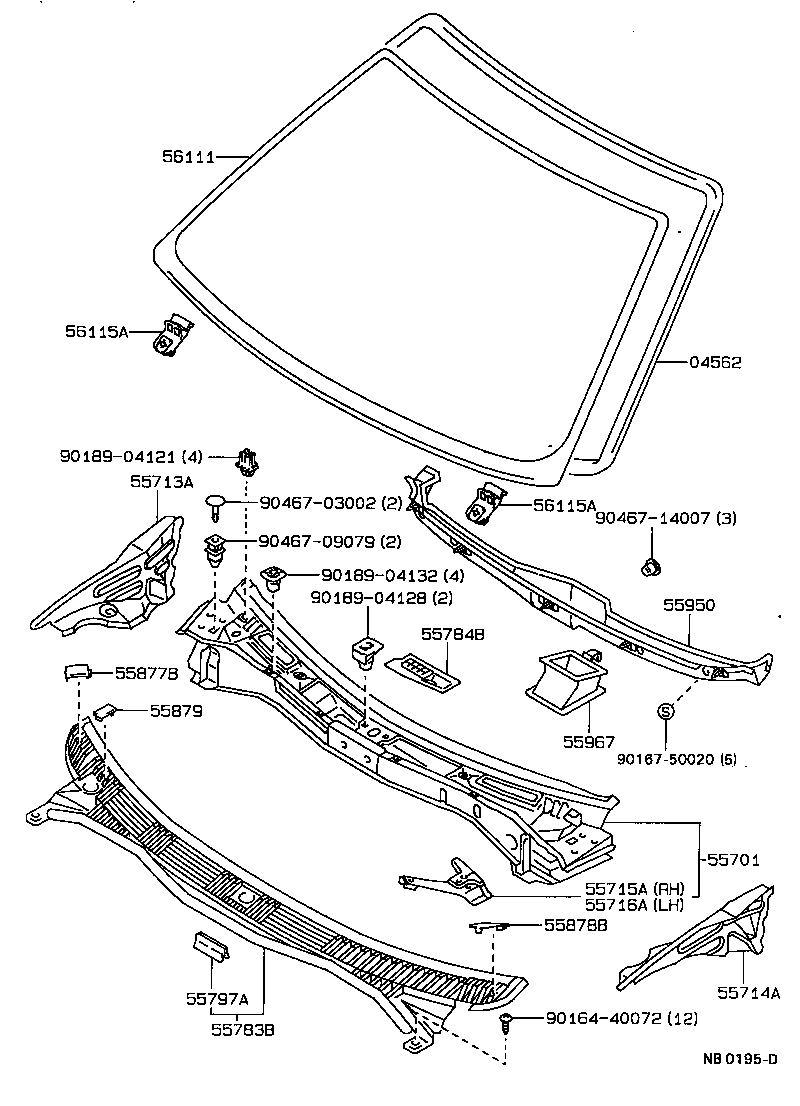

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55715A 55716A 55783B 55784B 55797A 55877B 55878B 55879 55950 55967 56111 56115A 56115A 9016440072 9016750020 9018904121 9018904128 9018904132 9046703002 9046709079 9046714007
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

AE9#

 1
55701 - PANEL SUB-ASSY, COWL
55700-12590

AE92

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-12070

AE9#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-12070

AE9#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-12090

AE9#

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-12090

AE9#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55708-12040

AE9#

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-12070

AE9#

 1
55797A - SEAL, COWL WATER EXTRACT
55797-12010

AE9#

 1
55877B - COVER, COWL VENT, RH
55877-12060

AE9#

 1
55878B - COVER, COWL VENT, LH
55878-12020

AE9#

 1
55879 - PACKING, FRONT VENTILATOR
55879-12050

AE9#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-12120

AE9#

 1
55967 - NOZZLE, DEFROSTER, LOWER
55967-12030

AE9#

 1
56111 - GLASS, WINDSHIELD
56111-1A170

AE9#..G,GT,GTV,GTZ,L,XI

*TL,T=5.3,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-12850

AE9#..G,GT,GTV,GTZ,L,XI

*TL,T=5.3

 1
56111-12870

AE9#

*LAM,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56111-12850

AE9#..G,GT,L

*TL,T=5.3

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12030

AE9#

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12030

AE9#

 2
Common parts
90164-40072
90167-50020
90189-04121
90189-04128
90189-04132
90467-03002
90467-09079
90467-14007
