AE92-BCMZF (1987)

Toyota Sprinter Trueno

Production May 1987 - Jun 1991
Engine 4AGE
Transmission EFI GTAPX
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

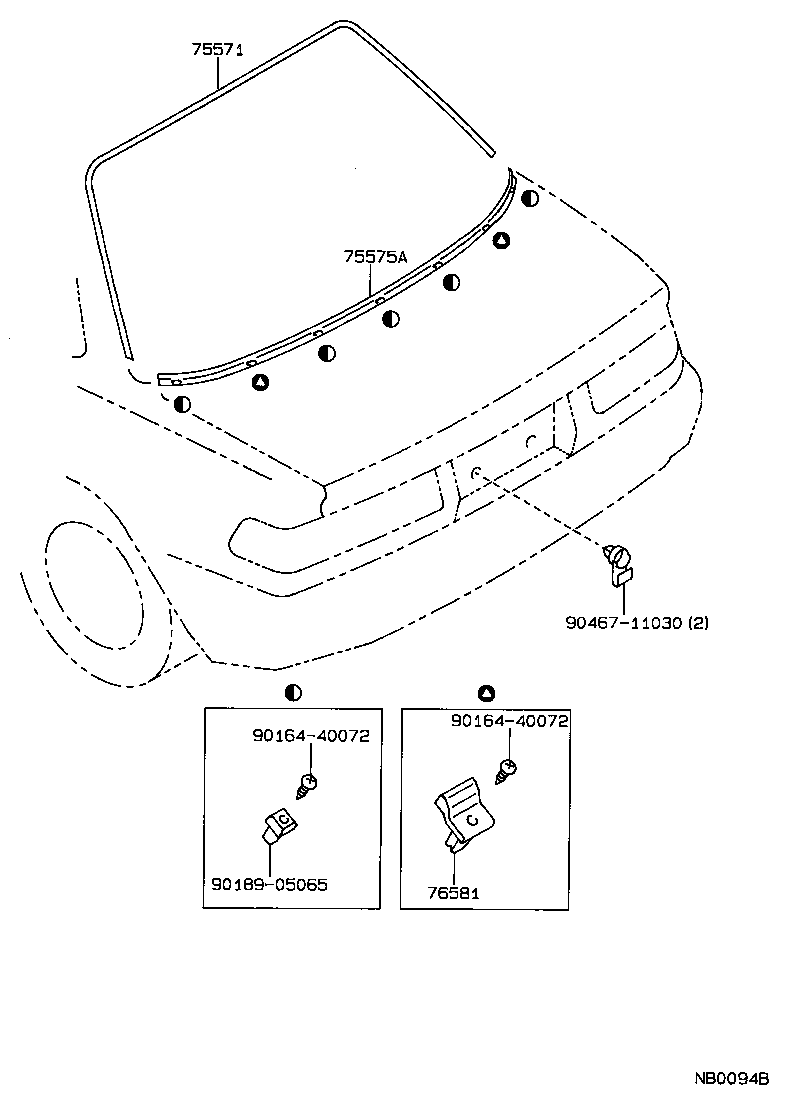

Click highlighted areas on diagram

diagram 75571 75575A 76581 9016440072 9016440072 9018905065 9046711030
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12280

AE9#..G,GTAPX,L,XI,XS

 1
75571-12270

AE92..GT,GTV,GTZ

 1
75571-12270

AE92..GTAPX

APEX ﾘﾐﾃﾂﾄﾞ

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-12280

AE92..GT,GTV,GTZ

 1
75575-12290

AE9#..G,GTAPX,L,XI,XS

 1
75575-12280

AE92..GTAPX

APEX ﾘﾐﾃﾂﾄﾞ

 1
75575-12320

AE9#..G,GTAPX,L,XS

ｶｺﾞｼﾏ ｼﾖｳ

 1
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76581-12010

AE9#

 2
Common parts
90164-40072
90189-05065
90467-11030
