AE92-BCMXR (1987)

Toyota Sprinter Trueno

Production May 1987 - Jun 1991
Engine 4AGZE
Transmission SPC GTZ
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

Click highlighted areas on diagram

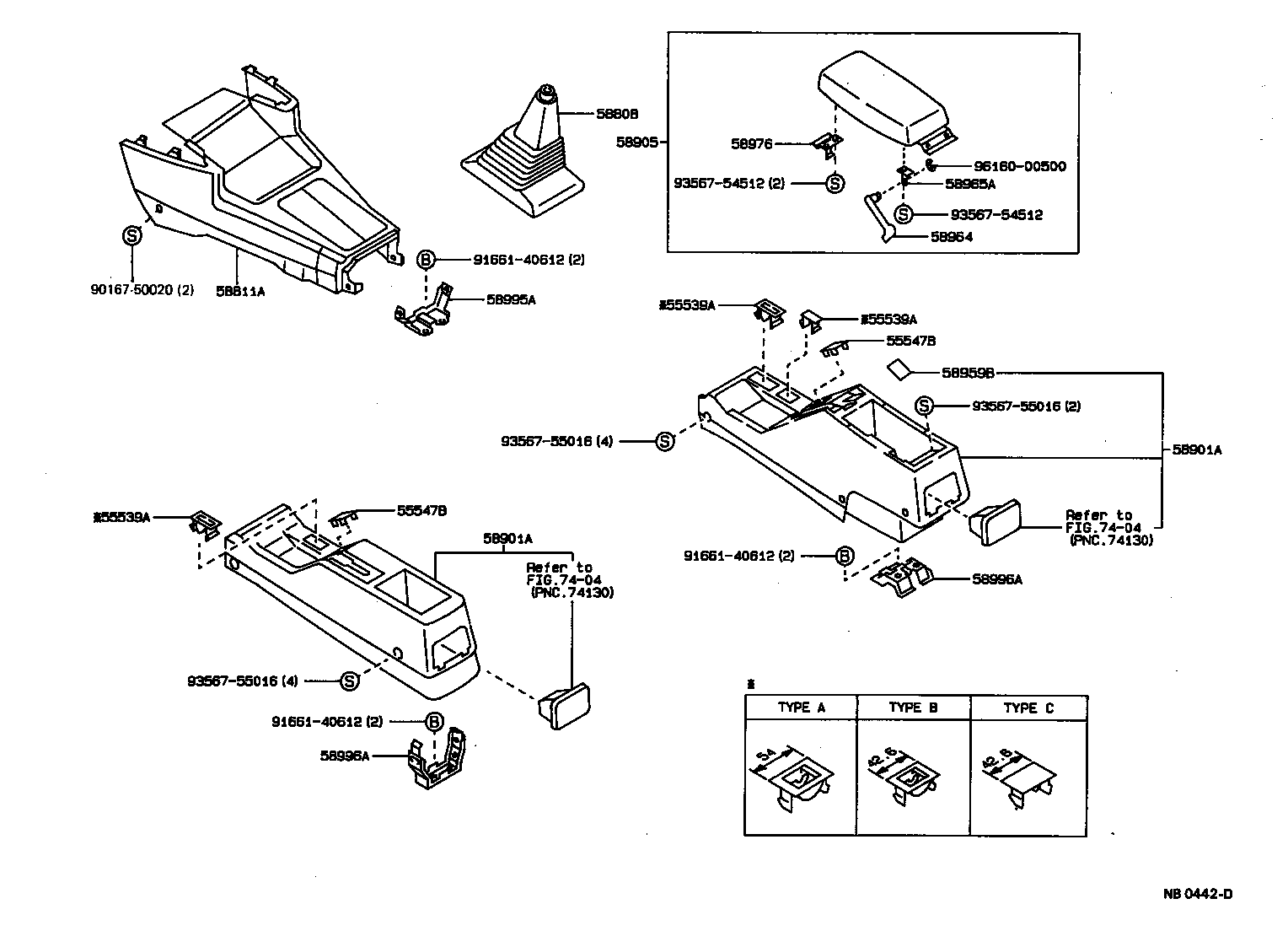

diagram 55539A 55539A 55539A 55547B 55547B 58808 58811A 58901A 58901A 58905 58959B 58964 58965A 58976 58995A 58996A 58996A 7404 7404 9016750020 9166140612 9166140612 9166140612 9356754512 9356754512 9356755016 9356755016 9356756016 9616000500
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-2003003

AE9#

GRAY,TRIM1#,ﾀｲﾌﾟ C

 1
55539-1207003

AE9#..G,GTV,GTZ,XI

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
55539-2003003

AE9#..G,GTV,GTZ,XI

GRAY,TRIM1#,ﾀｲﾌﾟ C

 1
55539-20020J0

AE9#..GT,GTAPX,L

DARK BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
55539-2002034

AE9#..GT,GTAPX,L

DARK BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
55539-1207004

AE9#..G,GT,GTAPX,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-2002003

AE9#..GT,GTAPX,L

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ B

 1
55539-2003014

AE9#..G,GTV,GTZ,XI

DARK BLUE,TRIM8#,ﾀｲﾌﾟ C

 1
55539-1207004

AE9#..G,GTV,GTZ,XI

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-2003014

AE9#..G,GT,GTAPX,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ C

 1
55539-1207004

AE9#..G,GT,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-1207003

AE9#

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
55539-2003014

AE9#..G,GT,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ C

 1
55539-1207003

AE9#..G,GT,GTZ,L,XS

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
55539A - COVER, SPARE SWITCH HOLE
55539-1207003

AE9#..G,GTV,GTZ,XI

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
55539-2003003

AE9#..G,GTV,GTZ,XI

GRAY,TRIM1#,ﾀｲﾌﾟ C

 1
55539-20020J0

AE9#..GT,GTAPX,L

DARK BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
55539-2002034

AE9#..GT,GTAPX,L

DARK BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
55539-2003003

AE9#

GRAY,TRIM1#,ﾀｲﾌﾟ C

 1
55539-1207004

AE9#..G,GT,GTAPX,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-2002003

AE9#..GT,GTAPX,L

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ B

 1
55539-2003014

AE9#..G,GTV,GTZ,XI

DARK BLUE,TRIM8#,ﾀｲﾌﾟ C

 1
55539-1207004

AE9#..G,GTV,GTZ,XI

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-2003014

AE9#..G,GT,GTAPX,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ C

 1
55539-1207004

AE9#..G,GT,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-1207003

AE9#

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
55539-2003014

AE9#..G,GT,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ C

 1
55539-1207003

AE9#..G,GT,GTZ,L,XS

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
55539A - COVER, SPARE SWITCH HOLE
55539-2003003

AE9#

GRAY,TRIM1#,ﾀｲﾌﾟ C

 1
55539-1207003

AE9#..G,GTV,GTZ,XI

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
55539-2003003

AE9#..G,GTV,GTZ,XI

GRAY,TRIM1#,ﾀｲﾌﾟ C

 1
55539-20020J0

AE9#..GT,GTAPX,L

DARK BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
55539-2002034

AE9#..GT,GTAPX,L

DARK BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
55539-1207004

AE9#..G,GT,GTAPX,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-2002003

AE9#..GT,GTAPX,L

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ B

 1
55539-2003014

AE9#..G,GTV,GTZ,XI

DARK BLUE,TRIM8#,ﾀｲﾌﾟ C

 1
55539-1207004

AE9#..G,GTV,GTZ,XI

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-2003014

AE9#..G,GT,GTAPX,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ C

 1
55539-1207004

AE9#..G,GT,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-1207003

AE9#

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
55539-2003014

AE9#..G,GT,GTZ,XS

DARK BLUE,TRIM8#,ﾀｲﾌﾟ C

 1
55539-1207003

AE9#..G,GT,GTZ,L,XS

SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
55547B - COVER, REMOTE CONTROL MIRROR HOLE
55547-2002014

AE9#..GT,L

DARK BLUE,TRIM8#

 1
55547-2002003

AE9#..GT,L

SHADOW GRAY,TRIM1#

 1
55547B - COVER, REMOTE CONTROL MIRROR HOLE
55547-2002014

AE9#..GT,L

DARK BLUE,TRIM8#

 1
55547-2002003

AE9#..GT,L

SHADOW GRAY,TRIM1#

 1
58811A - BOX, CONSOLE, FRONT
58811-1241004

AE9#

DARK BLUE,TRIM8#

 1
58811-1245003

AE92

SHADOW GRAY,TRIM1#

 1
58811-1245004

AE92

DARK BLUE,TRIM8#

 1
58811-1241003

AE9#

SHADOW GRAY,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-1214004

AE9#..GT,L

DARK BLUE,TRIM8#

 1
58901-12140J0

AE9#..GT,L

DARK BLUE,TRIM8#

 1
58901-1214003

AE9#..GT,L

SHADOW GRAY,TRIM1#

 1
58901-12150J0

AE9#..G,GT,GTAPX,GTZ,XS

DARK BLUE,TRIM8#

 1
58901-1215003

AE9#

SHADOW GRAY,TRIM1#

 1
58901-12150B1

AE9#

SHADOW GRAY,TRIM1#

 1
58901-1215004

AE9#..G,GTAPX,GTV,GTZ,XI

DARK BLUE,TRIM8#

 1
58901-1215004

AE9#..G,GT,GTAPX,GTZ,XS

DARK BLUE,TRIM8#

 1
58901-1215003

AE9#..G,GTAPX,GTV,GTZ,XI

SHADOW GRAY,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-1214004

AE9#..GT,L

DARK BLUE,TRIM8#

 1
58901-12140J0

AE9#..GT,L

DARK BLUE,TRIM8#

 1
58901-1214003

AE9#..GT,L

SHADOW GRAY,TRIM1#

 1
58901-12150J0

AE9#..G,GT,GTAPX,GTZ,XS

DARK BLUE,TRIM8#

 1
58901-1215003

AE9#

SHADOW GRAY,TRIM1#

 1
58901-12150B1

AE9#

SHADOW GRAY,TRIM1#

 1
58901-1215004

AE9#..G,GTAPX,GTV,GTZ,XI

DARK BLUE,TRIM8#

 1
58901-1215004

AE9#..G,GT,GTAPX,GTZ,XS

DARK BLUE,TRIM8#

 1
58901-1215003

AE9#..G,GTAPX,GTV,GTZ,XI

SHADOW GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-1207003

AE9#..G,GTAPX,GTV,GTZ,XI

SHADOW GRAY,TRIM1#

 1
58905-1207004

AE9#..G,GT,GTAPX,GTZ,XS

DARK BLUE,TRIM8#

 1
58905-1207003

AE9#

SHADOW GRAY,TRIM1#

 1
58905-1207004

AE9#..G,GTAPX,GTV,GTZ,XI

DARK BLUE,TRIM8#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-16010

AE9#..G,GTAPX,GTV,GTZ,XI

 2
58959-16010

AE9#

 2
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30030

AE9#..G,GTAPX,GTV,GTZ,XI

 1
58964-20020

AE9#

 1
58964-30060

AE9#..G,GTAPX,GTV,GTZ,XI

 1
58964-20020

AE9#..G,GTAPX,GTV,GTZ,XI

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-12010

AE9#

 1
58965-12010

AE9#..G,GTAPX,GTV,GTZ,XI

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

AE9#..G,GTAPX,GTV,GTZ,XI

 1
58976-22020

AE9#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-12060

AE9#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-12030

AE9#..GT,L

 1
58996-12050

AE9#..G,GTAPX,GTV,GTZ,XI

 1
58996-12050

AE9#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-12030

AE9#..GT,L

 1
58996-12050

AE9#..G,GTAPX,GTV,GTZ,XI

 1
58996-12050

AE9#

 1
Common parts
90167-50020
91661-40612
93567-54512
93567-55016
93567-56016
96160-00500
