AE91-BCPGU (1987)
Toyota Sprinter Trueno

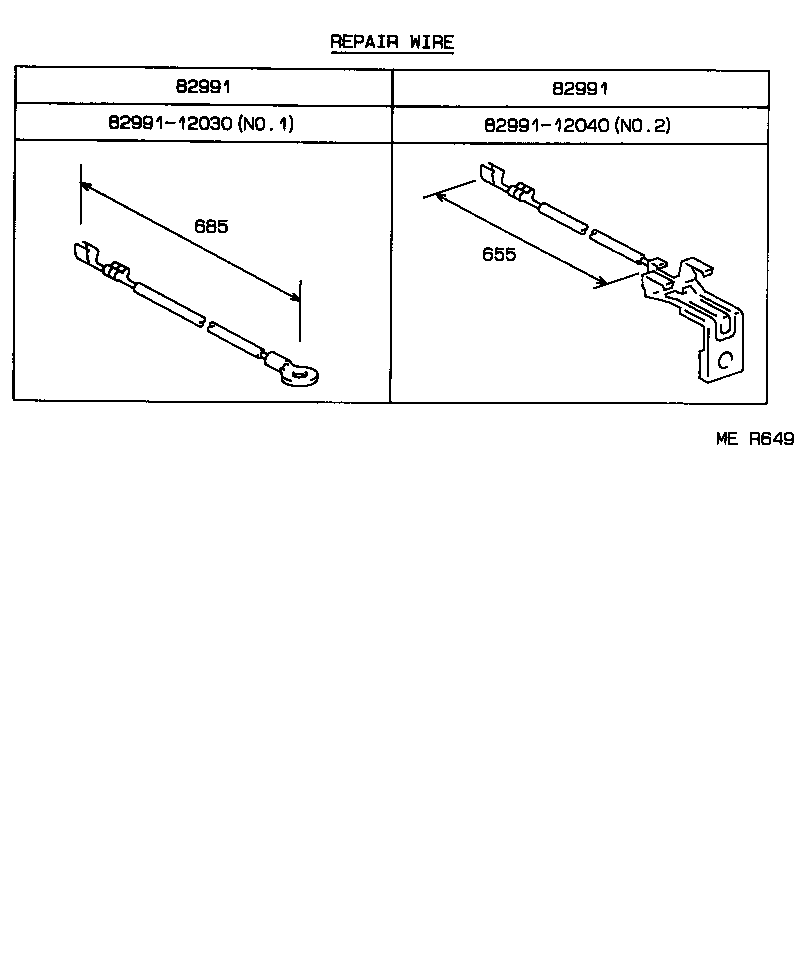

ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12030 |
AE9# NO.1 |
1 | ||
| 82991-12040 |
AE9# NO.2 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12030 |
AE9# NO.1 |
1 | ||
| 82991-12040 |
AE9# NO.2 |
1 | ||
| Common parts | ||||
| 82991-12030 | ||||
| 82991-12040 | ||||

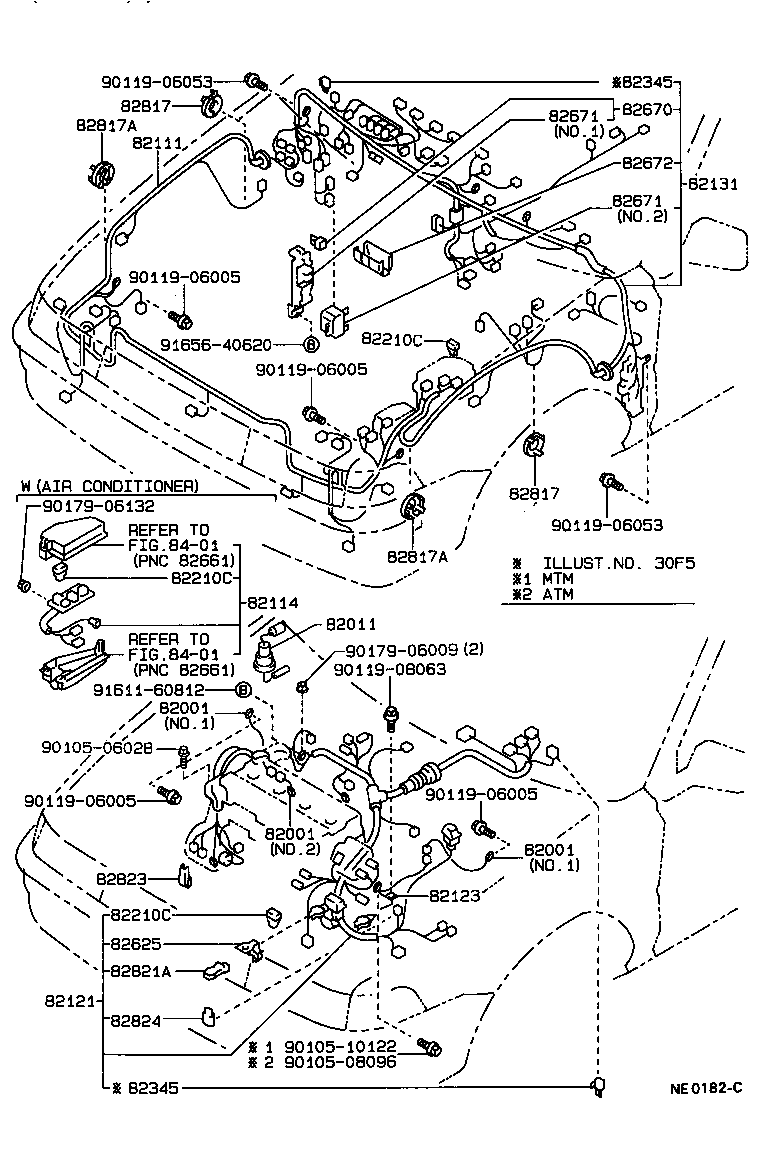

ILLUST NO. 1 OF 5(8705-8905)CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1A380 |
AE91..CBR |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-12040 |
AE91..CBR,EFIS;AE9#..GT,GTAPX,GTV,GTZ,XI |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1E240 |
AE91..G |
1 | ||
| 82131-1E242 |
AE91..G ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82131-1E241 |
AE91..G |
1 | ||
| 82131-1E242 |
AE91..G |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
AE91 NO.5 |
2 | ||
| 82345-12010 |
AE91..CBR NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
AE91 NO.5 |
2 | ||
| 82345-12010 |
AE91..CBR NO.1 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12090 |
AE91..G |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12020 |
AE91;AE92..4FC;AE92..5F..(GTAPX,GTV,GTZ) NO.2 |
1 | ||
| 82671-12030 |
AE91..CBR NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12020 |
AE91;AE92..4FC;AE92..5F..(GTAPX,GTV,GTZ) NO.2 |
1 | ||
| 82671-12030 |
AE91..CBR NO.1 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12100 |
AE9# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9# |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AE9# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
AE9# |
1 | ||
| Common parts | ||||
| 90105-06028 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08063 | ||||
| 90179-06009 | ||||
| 90179-06132 | ||||
| 91611-60812 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||

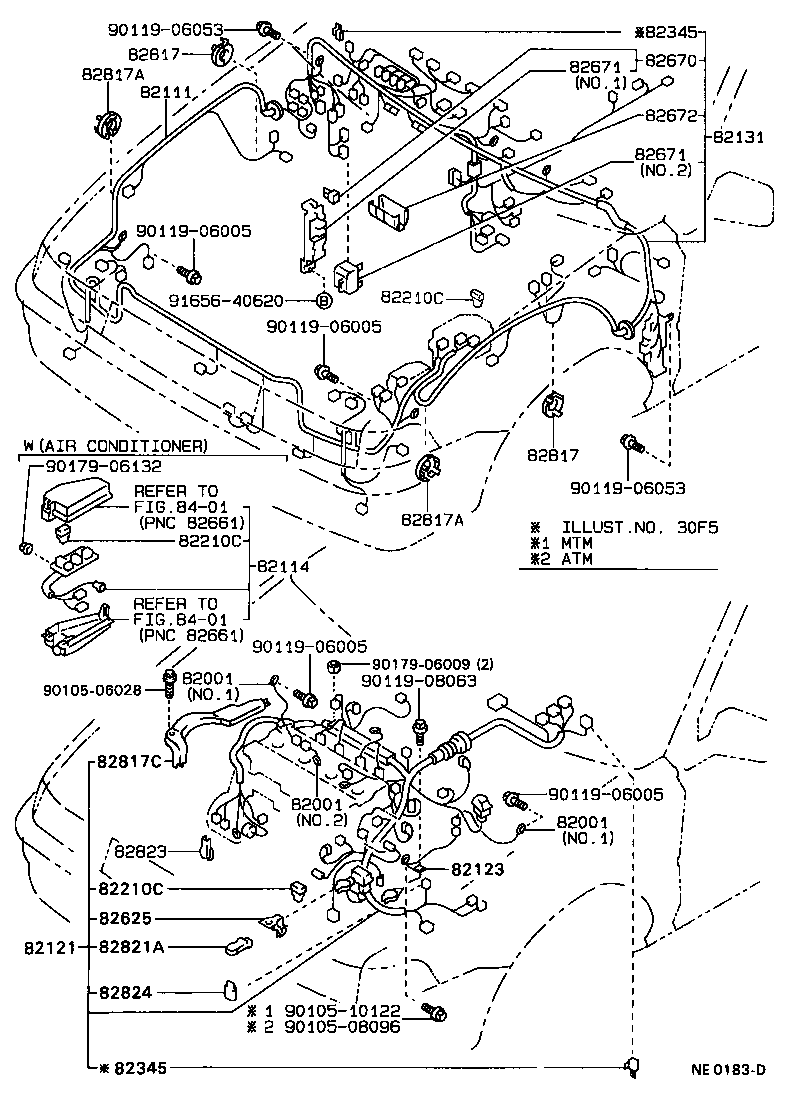

ILLUST NO. 1 OF 5(8705-8905)AE91..EFI ; (8905- )AE91
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1A380 |
AE91..CBR |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-12040 |
AE91..CBR,EFIS;AE9#..GT,GTAPX,GTV,GTZ,XI |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1E240 |
AE91..G |
1 | ||
| 82131-1E242 |
AE91..G ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82131-1E241 |
AE91..G |
1 | ||
| 82131-1E242 |
AE91..G |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
AE91 NO.5 |
2 | ||
| 82345-12010 |
AE91..CBR NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
AE91 NO.5 |
2 | ||
| 82345-12010 |
AE91..CBR NO.1 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12090 |
AE91..G |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12020 |
AE91;AE92..4FC;AE92..5F..(GTAPX,GTV,GTZ) NO.2 |
1 | ||
| 82671-12030 |
AE91..CBR NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12020 |
AE91;AE92..4FC;AE92..5F..(GTAPX,GTV,GTZ) NO.2 |
1 | ||
| 82671-12030 |
AE91..CBR NO.1 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12100 |
AE9# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9# |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AE9# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
AE9# |
1 | ||
| Common parts | ||||
| 90105-06028 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08063 | ||||
| 90179-06009 | ||||
| 90179-06132 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12300 | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-1A330 | ||||
| 82711-1A400 | ||||
| 82711-1A410 | ||||
| 82711-1A420 | ||||
| 82711-1A430 | ||||
| 82711-1A440 | ||||
| 82711-1A450 | ||||
| 82711-1A500 | ||||
| 82711-1A510 | ||||
| 82711-1A540 | ||||
| 82711-1A630 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-24210 | ||||
| 82711-30130 | ||||
| 82711-95718 | ||||

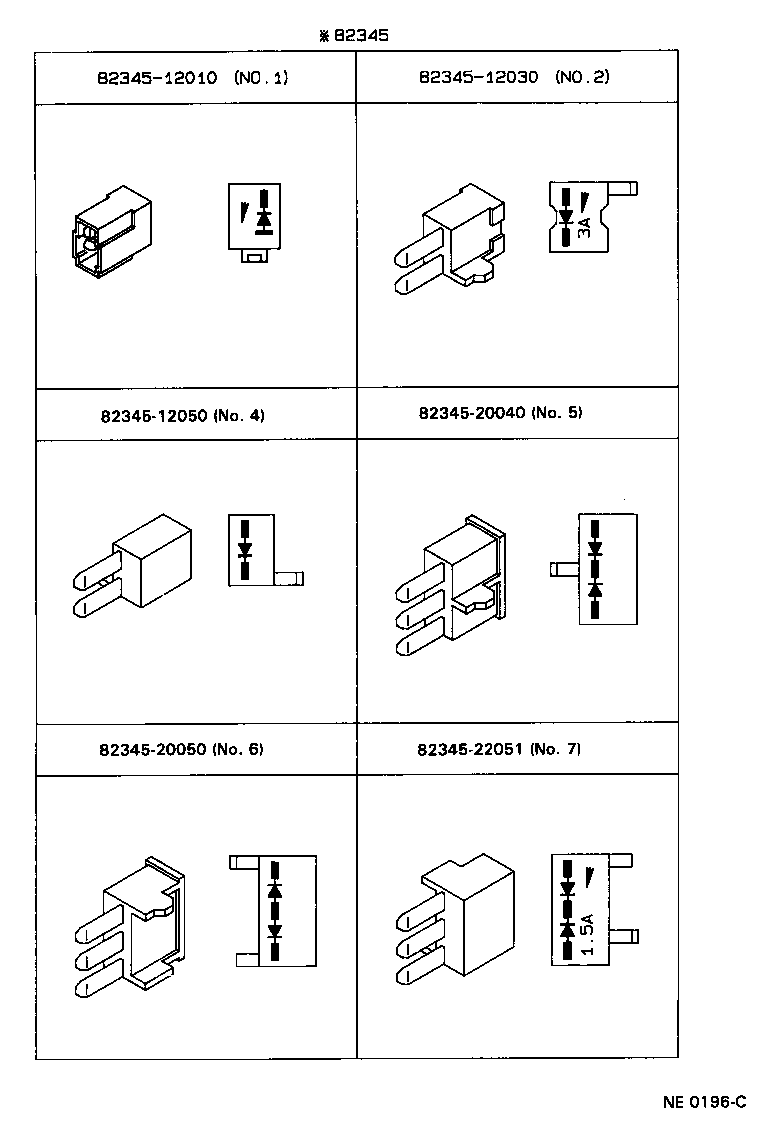

ILLUST NO. 3 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-20040 |
AE91 NO.5 |
2 | ||
| 82345-12010 |
AE91..CBR NO.1 |
1 | ||
| Common parts | ||||
| 82345-12010 | ||||
| 82345-12030 | ||||
| 82345-12050 | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-22051 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16470 | ||||
| 82711-1A620 | ||||
| 82711-22270 | ||||
| 82715-12010 | ||||
| 82715-12020 | ||||
| 82715-12030 | ||||
| 82715-89113 | ||||

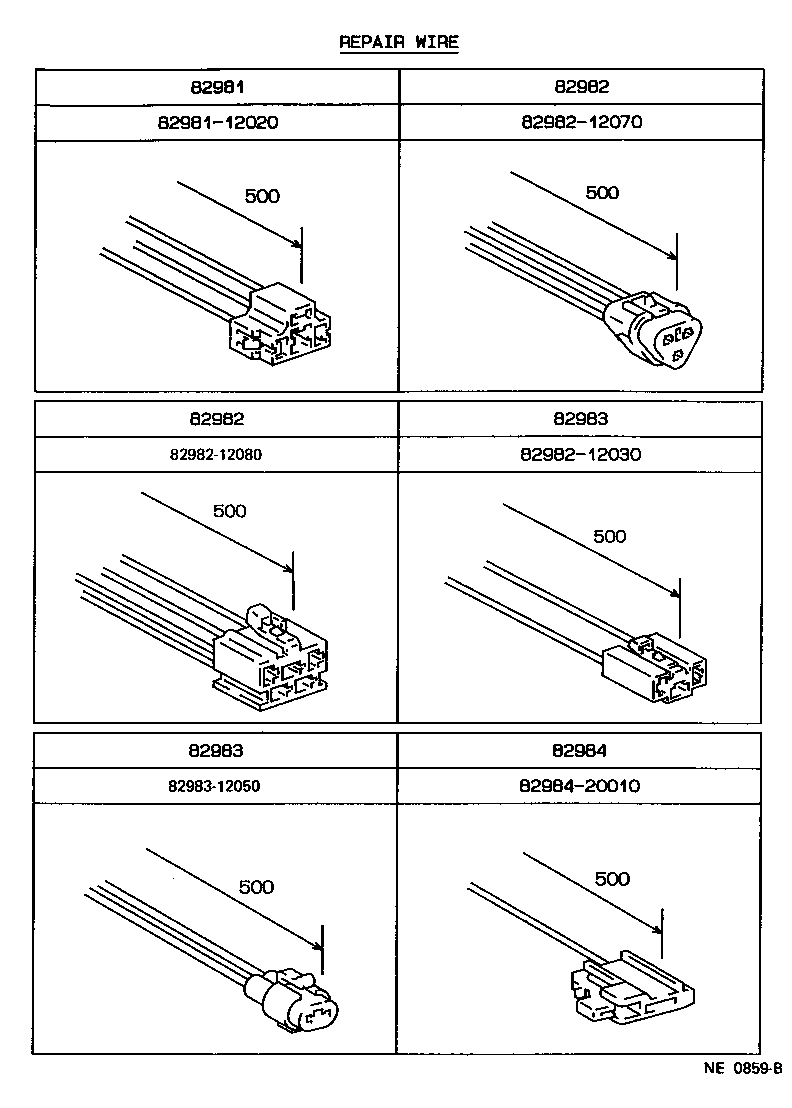

ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-12020 |
AE9# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-12070 |
AE9# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-12070 |
AE9# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82982-12030 |
AE9# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82982-12030 |
AE9# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AE9# |
1 | ||
| Common parts | ||||
| 82981-12020 | ||||
| 82982-12030 | ||||
| 82982-12070 | ||||
| 82982-12080 | ||||
| 82983-12050 | ||||
| 82984-20010 | ||||
ILLUST NO. 2 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12410 |
AE9#..G,GTAPX,GTV,GTZ,L,XI |
1 | ||
| 82151-12420 |
AE9#..G,GTAPX,XI ｱﾘ(*PW) |
1 | ||
| 82151-12420 |
AE9#..G,GTAPX,GTZ,XI ｱﾘ(*PW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12330 |
AE9#..G,GTAPX,GTV,GTZ,L,XI |
1 | ||
| 82152-12340 |
AE9#..G,GTAPX,GTZ,XI ｱﾘ(*PW) |
1 | ||
| 82152-12340 |
AE9#..G,GTAPX,XI ｱﾘ(*PW) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1A490 |
AE91..G |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12230 |
AE9#..G,GT,GTAPX,GTV,GTZ,XI ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 82171-12220 |
AE9# |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-20010 |
AE9#..G,GT,GTAPX,GTV,GTZ,XI,XS |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-12130 |
AE9#..G,GT,GTV,GTZ,L,XI |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE9# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
