AE91-BCPGK (1987)
Toyota Sprinter Trueno

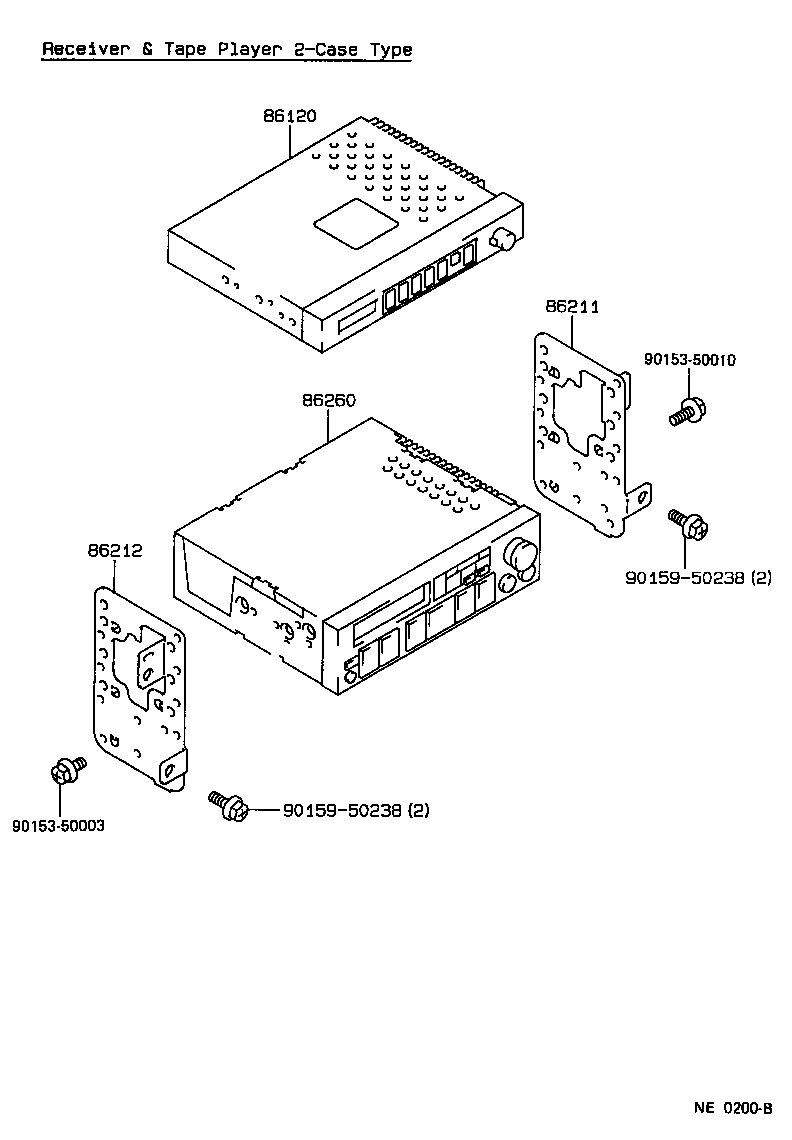

ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-12410 |
AE9#..G,GT,L |
1 | ||
| 86120-12420 |
AE9#..GTAPX,XI |
1 | ||
| 86120-32180 |
AE9#..EFI,SPC AM/FM MPX ETR,CASSETTE 2-DIN/4-AMP |
1 | ||
| 86120-12540 |
AE9# FUJITSU TEN,AM/FM MPX ETR,CASSETTE/4-AMP |
1 | ||
| 86120-12420 |
AE9#..G,GT,GTV,GTZ,L AM/FM,ETR/2-AMP |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12240 |
AE9# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12220 |
AE9# |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-19125 |
AE9#..G,GT,GTAPX,L,XI ﾌｴﾀﾞ- ｺﾝﾄﾛ-ﾙ ﾂｷ ｶｾﾂﾄ,TEN |
1 | ||
| 86260-19145 |
AE9#..G,GT,GTAPX,L,XI ｵ-ﾄ ﾘﾊﾞ-ｽ ｶｾﾂﾄ,MATSUSHITA |
1 | ||
| 86260-19115 |
AE9#..G,GT,L FM MPX ﾂｷ ｶｾﾂﾄ,TEN |
1 | ||
| 86260-19135 |
AE9#..G,GT,GTAPX,L,XI ｲｺﾗｲｻﾞ ﾂｷ ｶｾﾂﾄ,TEN |
1 | ||
| 86260-19165 |
AE9#..G,GT,GTAPX,L,XI ｲｺﾗｲｻﾞ ﾂｷ ｶｾﾂﾄ,MATSUSHITA |
1 | ||
| 86260-19155 |
AE9#..G,GT,GTAPX,L,XI ﾌｴﾀﾞ- ｺﾝﾄﾛ-ﾙ ﾂｷ ｶｾﾂﾄ,MATSUSHITA |
1 | ||
| 86260-19105 |
AE9#..G,GT,GTAPX,L,XI ｵ-ﾄ ﾘﾊﾞ-ｽ ｶｾﾂﾄ,TEN |
1 | ||
| 86260-19175 |
AE9#..G,GT,L FM MPX ﾂｷ ｶｾﾂﾄ,MATSUSHITA |
1 | ||
| Common parts | ||||
| 90153-50003 | ||||
| 90153-50010 | ||||
| 90159-50238 | ||||
ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-12410 |
AE9#..G,GT,L |
1 | ||
| 86120-12420 |
AE9#..GTAPX,XI |
1 | ||
| 86120-32180 |
AE9#..EFI,SPC AM/FM MPX ETR,CASSETTE 2-DIN/4-AMP |
1 | ||
| 86120-12540 |
AE9# FUJITSU TEN,AM/FM MPX ETR,CASSETTE/4-AMP |
1 | ||
| 86120-12420 |
AE9#..G,GT,GTV,GTZ,L AM/FM,ETR/2-AMP |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-12410 |
AE9#..G,GT,L |
1 | ||
| 86120-12420 |
AE9#..GTAPX,XI |
1 | ||
| 86120-32180 |
AE9#..EFI,SPC AM/FM MPX ETR,CASSETTE 2-DIN/4-AMP |
1 | ||
| 86120-12540 |
AE9# FUJITSU TEN,AM/FM MPX ETR,CASSETTE/4-AMP |
1 | ||
| 86120-12420 |
AE9#..G,GT,GTV,GTZ,L AM/FM,ETR/2-AMP |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12240 |
AE9# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12240 |
AE9# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12220 |
AE9# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12220 |
AE9# |
1 | ||
| 86270A - DISC PLAYER ASSY | ||||
| 86270-12020 |
AE9#..G,GT,GTAPX,GTV,GTZ,XI |
1 | ||
| 86270-12020 |
AE9# |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-12060 |
AE9# |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50238 | ||||
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011C - FILTER, NOISE | ||||
| 90980-05049 |
AE9#..GTAPX,XI ﾌﾛﾝﾄ ﾜｲﾊﾟ ﾓ-ﾀ |
1 | ||
| 90980-05049 |
AE9#..G,GT,GTV,GTZ,L ﾌﾛﾝﾄ ﾜｲﾊﾟ ﾓ-ﾀ |
1 | ||
| 90980-05073 |
AE9# ｽﾄﾂﾌﾟ ｽｲﾂﾁ |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05049 |
AE9#..GTAPX,XI ﾌﾛﾝﾄ ﾜｲﾊﾟ ﾓ-ﾀ |
1 | ||
| 90980-05049 |
AE9#..G,GT,GTV,GTZ,L ﾌﾛﾝﾄ ﾜｲﾊﾟ ﾓ-ﾀ |
1 | ||
| 90980-05073 |
AE9# ｽﾄﾂﾌﾟ ｽｲﾂﾁ |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05049 |
AE9#..GTAPX,XI ﾌﾛﾝﾄ ﾜｲﾊﾟ ﾓ-ﾀ |
1 | ||
| 90980-05049 |
AE9#..G,GT,GTV,GTZ,L ﾌﾛﾝﾄ ﾜｲﾊﾟ ﾓ-ﾀ |
1 | ||
| 90980-05073 |
AE9# ｽﾄﾂﾌﾟ ｽｲﾂﾁ |
1 | ||
