AE91-BCMGU (1987)

Toyota Sprinter Trueno

Production May 1987 - May 1989
Engine 5AF
Transmission CBR G
Displacement 2500cc
Power 168 HP (125 kW)

(8705-8905)5AF

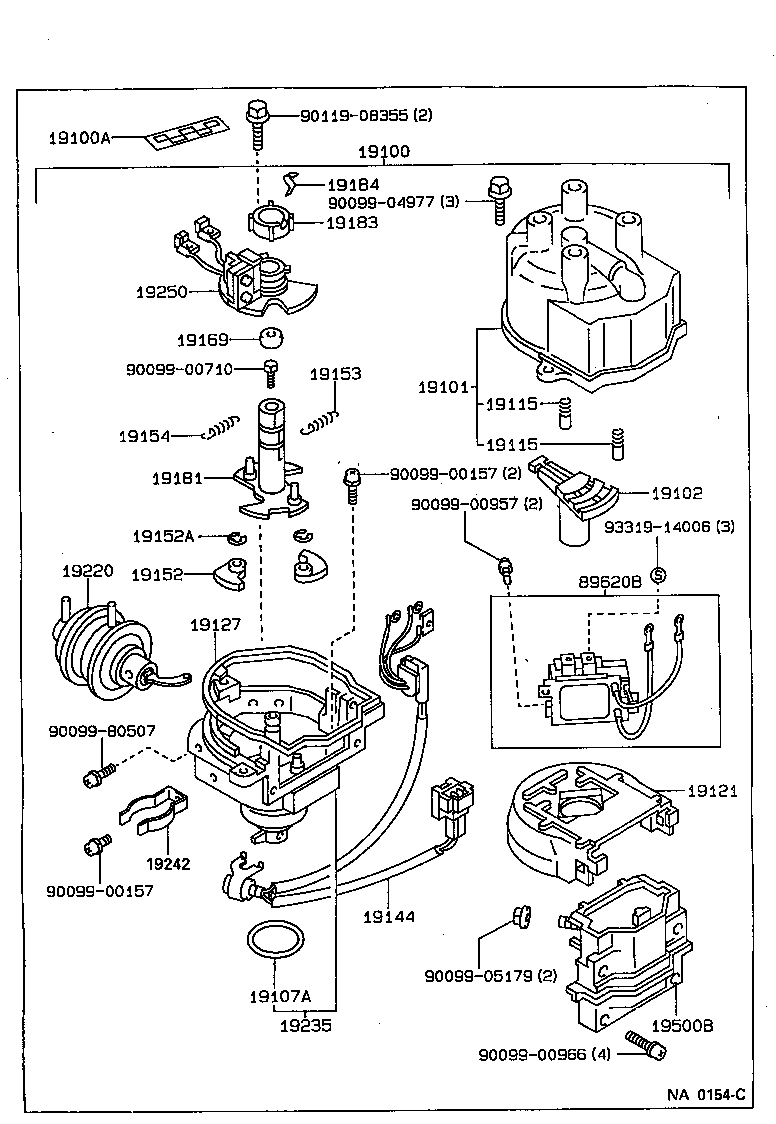

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19115 19121 19127 19144 19152 19152A 19153 19154 19169 19181 19183 19184 19220 19235 19242 19250 19500B 89620B 9009900157 9009900157 9009900710 9009900957 9009900966 9009904977 9009905179 9009980507 9011908355 9331914006
Part # Description Qty Price
19100A - TAPE, SEALING
90919-24004

4AG#,5AF#..AE9#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-15120

5AF..AE91

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11010

5AF#..AE91

 1
19107A - RING, O, DISTRIBUTOR HOUSING
96711-35030

4AG#,5AF#..AE9#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

5AF#..AE91

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

5AF#..AE91

 2
19121 - COVER, DUST PROOF
19121-11080

5AF..AE91

 1
19127 - PACKING, DUST PROOF
19127-15120

5AF..AE91

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-15120

5AF..AE91

 1
19152 - WEIGHT, GOVERNOR
19152-15160

5AF..AE91

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

5AF..AE91

 2
19153 - SPRING, GOVERNOR, A
19153-15290

5AF..AE91

 1
19154 - SPRING, GOVERNOR, B
19154-15130

5AF..AE91

 1
19169 - STOPPER, CAM GREASE
19169-63011

5AF..AE91

 1
19183 - ROTOR, SIGNAL
19183-15010

5AF..AE91

 1
19184 - SPRING, ROTOR SET
19184-63010

5AF..AE91

 1
19235 - HOUSING, DISTRIBUTOR
19235-15120

5AF..AE91

 1
19242 - CLAMP, CORD
19242-15120

5AF..AE91

 1
19250 - GENERATOR ASSY, SIGNAL
19251-16100

5AF..AE91

 1
19251-15091

5AF..AE91

 1
19500B - COIL ASSY, IGNITION
90919-02164

5AF..AE91

 1
89620B - IGNITER ASSY
89620-12340

AE91..CBR

MATSUSHITA

 1
89620-10120

AE91..CBR

NIPPONDENSO

 1
Common parts
90099-00157
90099-00710
90099-00957
90099-00966
90099-04977
90099-05179
90099-80507
90119-08355
93319-14006
