AE91-BCMGK (1989)

Toyota Sprinter Trueno

Production May 1989 - Jun 1991
Engine 5AFE
Transmission EFI G
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 5(8905- )

Click highlighted areas on diagram

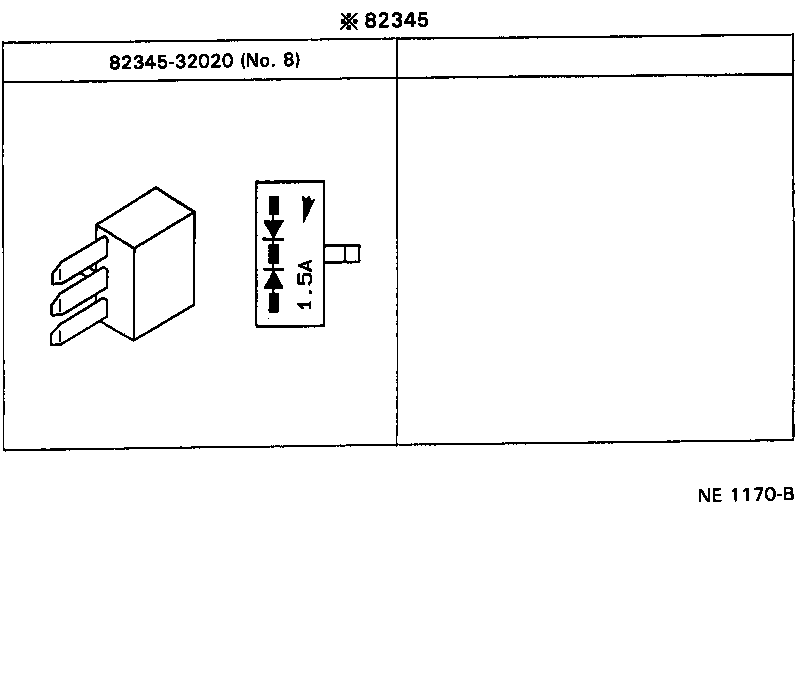

diagram 82345 8234532020
Part # Description Qty Price
82345 - DIODE
82345-20040

AE91

NO.5

 2
82345-12050

AE9#..G,GT,L,XS;AE92..5F..GTAPX

NO.4

 1
82345-32020

AE91..EFI

NO.8

 2
Common parts
82345-32020
