AE91-BCMGK (1987)
Toyota Sprinter Trueno
ILLUST NO. 1 OF 4(8705- )AE91
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

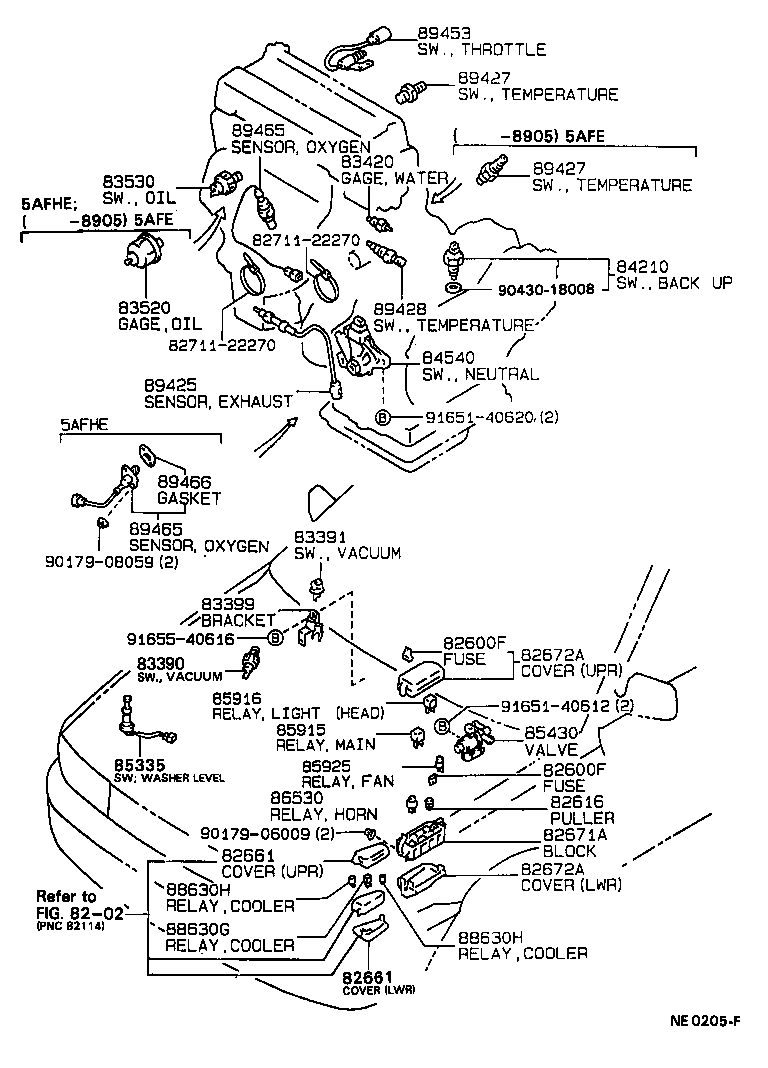

| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE9# 15A |
1 | ||
| 90982-09002 |
AE9# 10A |
1 | ||
| 90982-07011 |
AE9# 30A,緑 |
1 | ||
| 90982-09005 |
AE9# 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE9# 15A |
1 | ||
| 90982-09002 |
AE9# 10A |
1 | ||
| 90982-07011 |
AE9# 30A,緑 |
1 | ||
| 90982-09005 |
AE9# 7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE9# 上側 |
1 | ||
| 82661-12160 |
AE9# 下側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE9# 上側 |
1 | ||
| 82661-12160 |
AE9# 下側 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12080 |
AE9# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12070 |
AE9# 下側 |
1 | ||
| 82672-12020 |
AE9# 上側 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12070 |
AE9# 下側 |
1 | ||
| 82672-12020 |
AE9# 上側 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE91 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14023 |
AE9#..GTAPX,GTV,GTZ,XI |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9# HEAD |
1 | ||
| 90987-02004 |
AE9# NIPPONDENSO,TAIL |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE9# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
AE9# NIPPONDENSO |
1 | ||
| 90987-02002 |
AE9# MARUKO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE9#..G,GT,GTAPX,GTV,GTZ,XI |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE9#..G,GT,GTAPX,GTV,GTZ,XI |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE9#..G,GT,GTAPX,GTV,GTZ,XI |
2 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12210 |
AE91..CBR,EFI |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE9# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-32060 |
AE91..EFI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-32060 |
AE91..EFI |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90179-06009 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 4 OF 4(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80070 |
AE9#..EFI,SPC PLANT NO.M12 |
1 | ||
| 83320-80072 |
AE91..G PLANT NO.A31,A32 |
1 | ||
| 83320-80071 |
AE9#..GTAPX,XI ｱﾘ(*DS) |
1 | ||
| 83320-80073 |
AE9#..EFI,SPC PLANT NO.A31,A32 |
1 | ||
| 83320-80069 |
AE91..G |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE9# |
1 | ||
| 83361-32010 |
AE9#..GTAPX,XI,XS ｱﾘ(*DS) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-24010 |
AE9# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20110 |
AE9#..G,GTAPX,GTV,GTZ,XI,XS |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9# |
1 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-12010 |
AE9#..G,GTAPX,XI |
1 | ||
| 84535-12010 |
AE9#..G,GTAPX,GTZ,XI |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9# |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-20020 |
AE9#..G,GT,GTAPX,GTV,GTZ,XI,XS |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006014 |
AE9#..G,GTAPX,GTZ,XI DARK BLUE,TRIM8# |
1 | ||
| 84810-2006003 |
AE9#..G,GTAPX,GTZ,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84810-2006003 |
AE9#..G,GTAPX,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84810-20060J0 |
AE9#..G,GTAPX,GTZ,XI DARK BLUE,TRIM8# |
1 | ||
| 84810-2006014 |
AE9#..G,GTAPX,XI DARK BLUE,TRIM8# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006014 |
AE9#..G,GTAPX,GTZ,XI DARK BLUE,TRIM8# |
1 | ||
| 84810-2006003 |
AE9#..G,GTAPX,GTZ,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84810-2006003 |
AE9#..G,GTAPX,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84810-20060J0 |
AE9#..G,GTAPX,GTZ,XI DARK BLUE,TRIM8# |
1 | ||
| 84810-2006014 |
AE9#..G,GTAPX,XI DARK BLUE,TRIM8# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1219004 |
AE9#..G,GTAPX,GTZ,XI DARK BLUE,TRIM8# |
1 | ||
| 84820-1219003 |
AE9#..G,GTAPX,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84820-1219003 |
AE9#..G,GTAPX,GTZ,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84820-1219004 |
AE9#..G,GTAPX,XI DARK BLUE,TRIM8# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1219004 |
AE9#..G,GTAPX,GTZ,XI DARK BLUE,TRIM8# |
1 | ||
| 84820-1219003 |
AE9#..G,GTAPX,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84820-1219003 |
AE9#..G,GTAPX,GTZ,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84820-1219004 |
AE9#..G,GTAPX,XI DARK BLUE,TRIM8# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
AE9#..G,GTAPX,GTV,GTZ,XI |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601014 |
AE9#..G,GTAPX,GTZ,XI DARK BLUE,TRIM8# |
1 | ||
| 84930-1601003 |
AE9#..G,GTAPX,GTZ,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
AE9#..G,GTAPX,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84930-16010J0 |
AE9#..G,GTAPX,GTZ,XI DARK BLUE,TRIM8# |
1 | ||
| 84930-1601014 |
AE9#..G,GTAPX,XI DARK BLUE,TRIM8# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601014 |
AE9#..G,GTAPX,GTZ,XI DARK BLUE,TRIM8# |
1 | ||
| 84930-1601003 |
AE9#..G,GTAPX,GTZ,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
AE9#..G,GTAPX,XI SHADOW GRAY,TRIM1# |
1 | ||
| 84930-16010J0 |
AE9#..G,GTAPX,GTZ,XI DARK BLUE,TRIM8# |
1 | ||
| 84930-1601014 |
AE9#..G,GTAPX,XI DARK BLUE,TRIM8# |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-12010 |
AE9#..G,GT,GTAPX,GTV,GTZ,XI,XS |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-12050 |
AE9#..G,GTAPX,GTZ,XI |
1 | ||
| 85930-12050 |
AE9#..G,GTAPX,XI |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-16060 |
AE9#..GTAPX,XI |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12210 |
AE91..CBR,EFI |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06005 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 94120-41000 | ||||
ILLUST NO. 2 OF 4(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

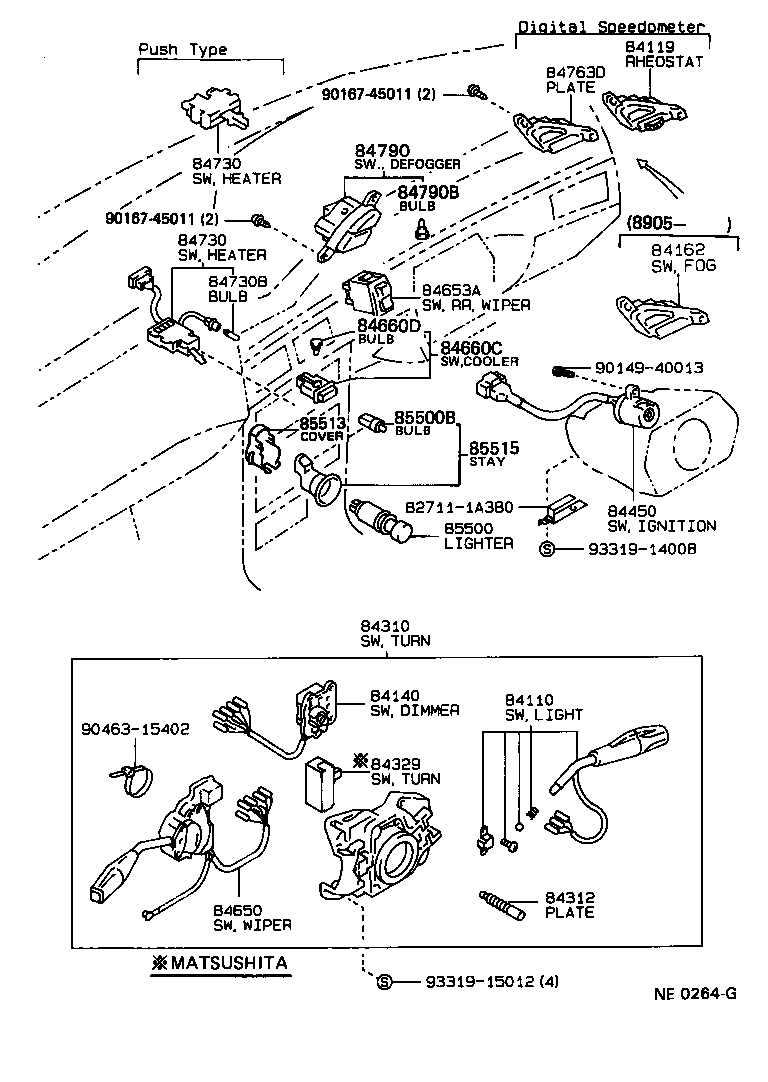

| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19885 |
AE9# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12100 |
AE9#..GTAPX,XI |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12240 |
AE9# 東海理化 |
1 | ||
| 84140-12210 |
AE9# MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A320 |
AE91..G,XI |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AE9# 東海理化 |
1 | ||
| 84312-12050 |
AE9# MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12020 |
AE9# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12700 |
AE91..G,XI 東海理化 |
1 | ||
| 84652-12470 |
AE91..G,XI MATSUSHITA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE9#..G,GT,GTV,GTZ,L,XI ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE9#..G,GT,GTV,GTZ,XI ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12230 |
AE9#..G,GT,GTV,GTZ,L,XI |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE9#..G,GT,GTV,GTZ,L,XI ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE9#..G,GT,GTV,GTZ,XI ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12230 |
AE9#..G,GT,GTV,GTZ,L,XI |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE9#..G,GT,GTV,GTZ,L,XI 14V 1.4W |
1 | ||
| 84763D - PLATE, SWITCH | ||||
| 84763-12050 |
AE9# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12200 |
AE9#..CBR,EFI,EFIS |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10090 |
AE9# 12V 1.8W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12020 |
AE9# |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-45011 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
ILLUST NO. 3 OF 4(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

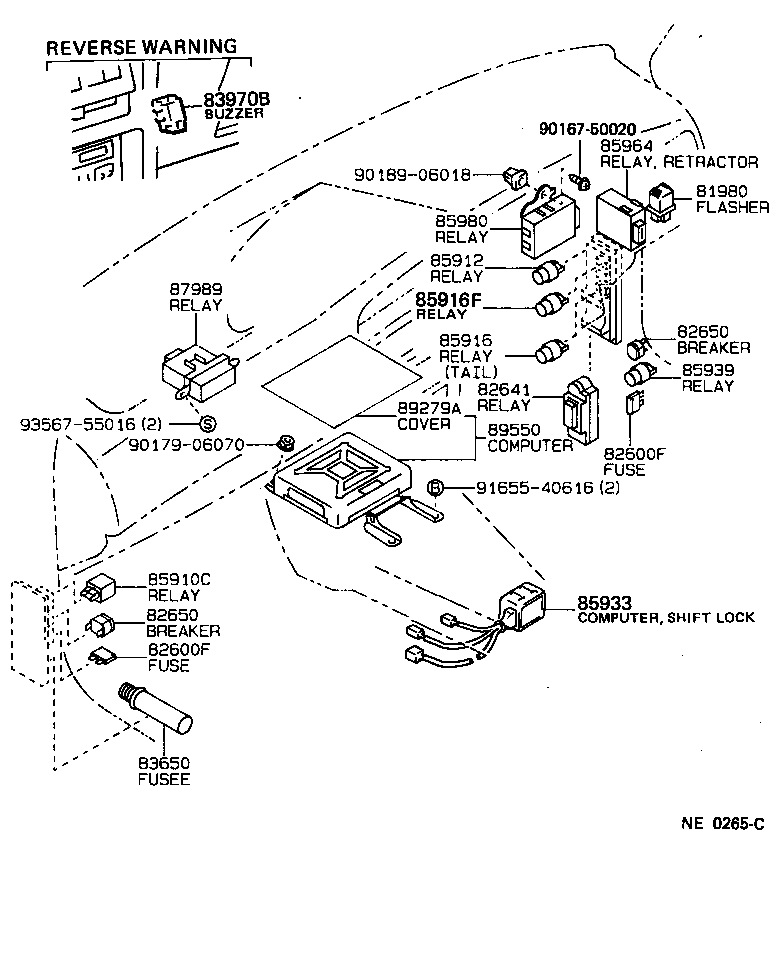

| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE9# 15A |
1 | ||
| 90982-09002 |
AE9# 10A |
1 | ||
| 90982-07011 |
AE9# 30A,緑 |
1 | ||
| 90982-09005 |
AE9# 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE9# 15A |
1 | ||
| 90982-09002 |
AE9# 10A |
1 | ||
| 90982-07011 |
AE9# 30A,緑 |
1 | ||
| 90982-09005 |
AE9# 7.5A |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12010 |
AE9#..G,GTAPX,XI |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE9# 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE9# 30A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE9# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9# HEAD |
1 | ||
| 90987-02004 |
AE9# NIPPONDENSO,TAIL |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02002 |
AE9# MARUKO |
1 | ||
| 90987-02004 |
AE9# NIPPONDENSO |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02004 |
AE9#..G,GTAPX,XI NIPPONDENSO |
1 | ||
| 90987-02002 |
AE9#..G,GTAPX,XI MARUKO |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-17010 |
AE9# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12040 |
AE9#..G,GTAPX,GTZ,XI |
1 | ||
| 85980-12040 |
AE9#..G,GTAPX,XI |
1 | ||
| Common parts | ||||
| 90167-50020 | ||||
| 90179-06070 | ||||
| 90189-06018 | ||||
| 91655-40616 | ||||
| 93567-55016 | ||||
