AE91-BCMGH (1989)

Toyota Sprinter Trueno

Production May 1989 - Jun 1991
Engine 5AFHE
Transmission EFIS XS
Displacement 2500cc
Power 168 HP (125 kW)

(8905- )5AFHE

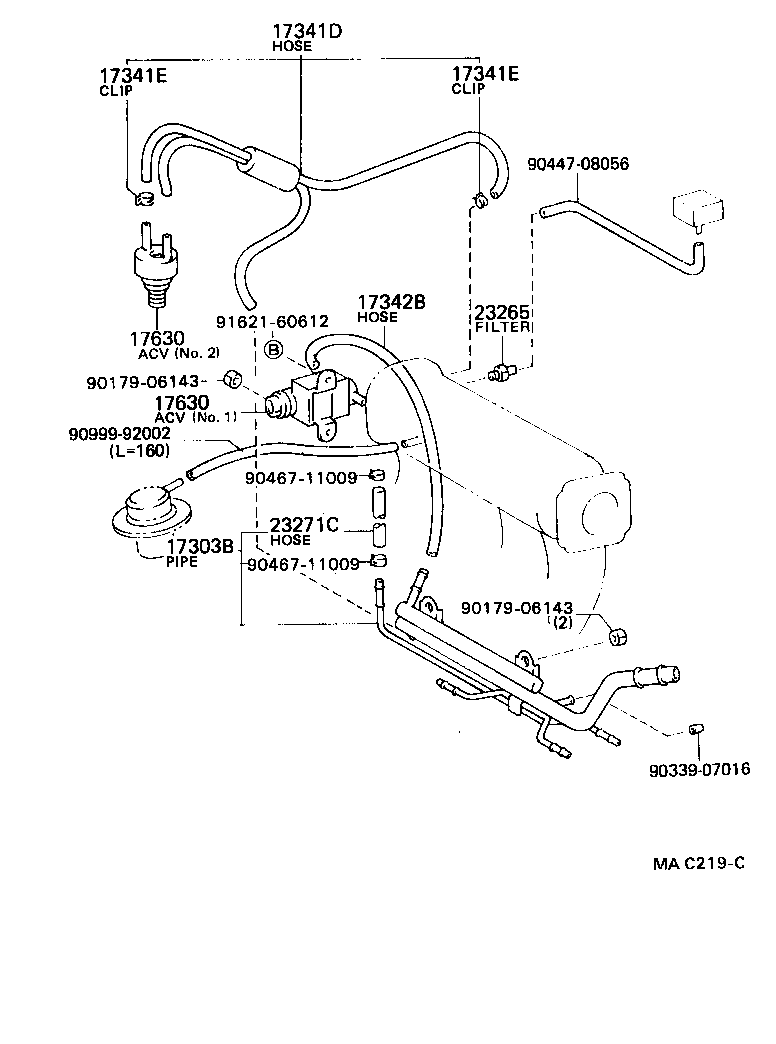

Click highlighted areas on diagram

diagram 17303B 17341D 17341E 17341E 17342B 17630 17630 23265 23271C 9017906143 9017906143 9033907016 9044708056 9046711009 9046711009 9099992002 9162160612
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-16131

5AF#..AE91

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17302-16010

5AF#..AE91

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

5AF#..AE91

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

5AF#..AE91

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-10029

5AF#..AE91

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15050

5AFE,5AFHE..AE91..L,XI,XS

NO.2

 1
17630-15021

5AF..AE91

 1
17630-15070

5AF#..AE91

NO.1

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15050

5AFE,5AFHE..AE91..L,XI,XS

NO.2

 1
17630-15021

5AF..AE91

 1
17630-15070

5AF#..AE91

NO.1

 1
23265 - FILTER, GAS, NO.1
90917-11027

4AGE,5AF..AE9#

 1
90917-11022

5AF#..AE91

 1
23271C - HOSE, FUEL
95333-06020

5AF#..AE91

 1
Common parts
90179-06143
90339-07016
90447-08056
90467-11009
90999-92002
91621-60612
