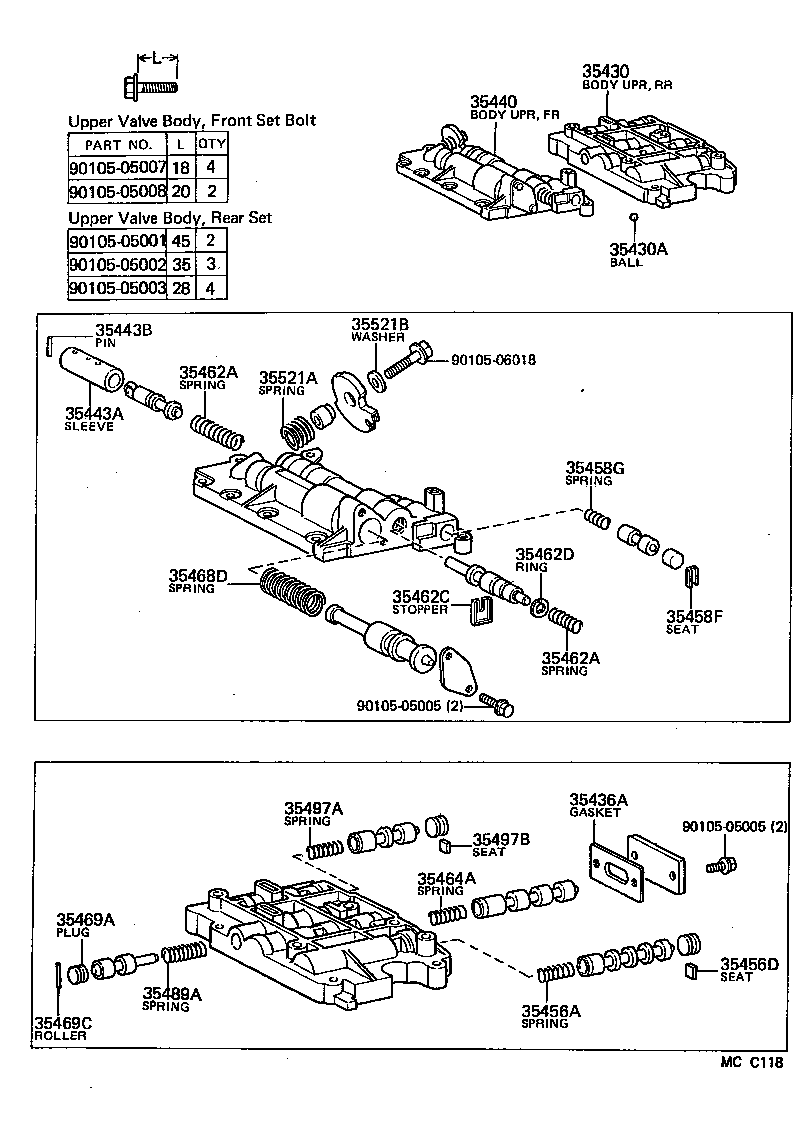

ILLUST NO. 1 OF 3(8505- )AE86..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-30120 |
AE86..4FC |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06023 |
AE8#..4FC 外径=5.56,STEEL,OD=5.56,STEEL |
6 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-30050 |
AE86..4FC |
1 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-22110 |
AE86..4FC |
1 | ||
| 35440-22111 |
AE86..4FC |
1 | ||
| 35443A - SLEEVE, DOWN SHIFT PLUG | ||||
| 35443-30010 |
AE86..4FC |
1 | ||
| 35443B - PIN (FOR DOWN SHIFT PLUG SLEEVE) | ||||
| 90250-03034 |
AE86..4FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09028 |
AE86..4FC |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-30030 |
AE86..4FC |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
AE8#..4FC |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06022 |
AE86..4FC |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
AE8#..4FC 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 90501-11011 |
AE86..4FC PRIMARY |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
AE8#..4FC 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 90501-11011 |
AE86..4FC PRIMARY |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
AE8#..4FC |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
AE8#..4FC |
6 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09028 |
AE86..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
AE8#..4FC |
1 | ||
| 35469A - PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE | ||||
| 35469-30020 |
AE86..4FC |
1 | ||
| 35469C - ROLLER, SHIFT VALVE PLUG | ||||
| 90361-02051 |
AE86..4FC |
1 | ||
| 35489A - SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90501-12726 |
AE86..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09028 |
AE86..4FC |
1 | ||
| 35497B - SEAT, SHIFT VALVE PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 35493-30030 |
AE86..4FC |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
AE8#..4FC |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
AE8#..4FC |
1 | ||
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05007 | ||||
| 90105-05008 | ||||
| 90105-06018 | ||||

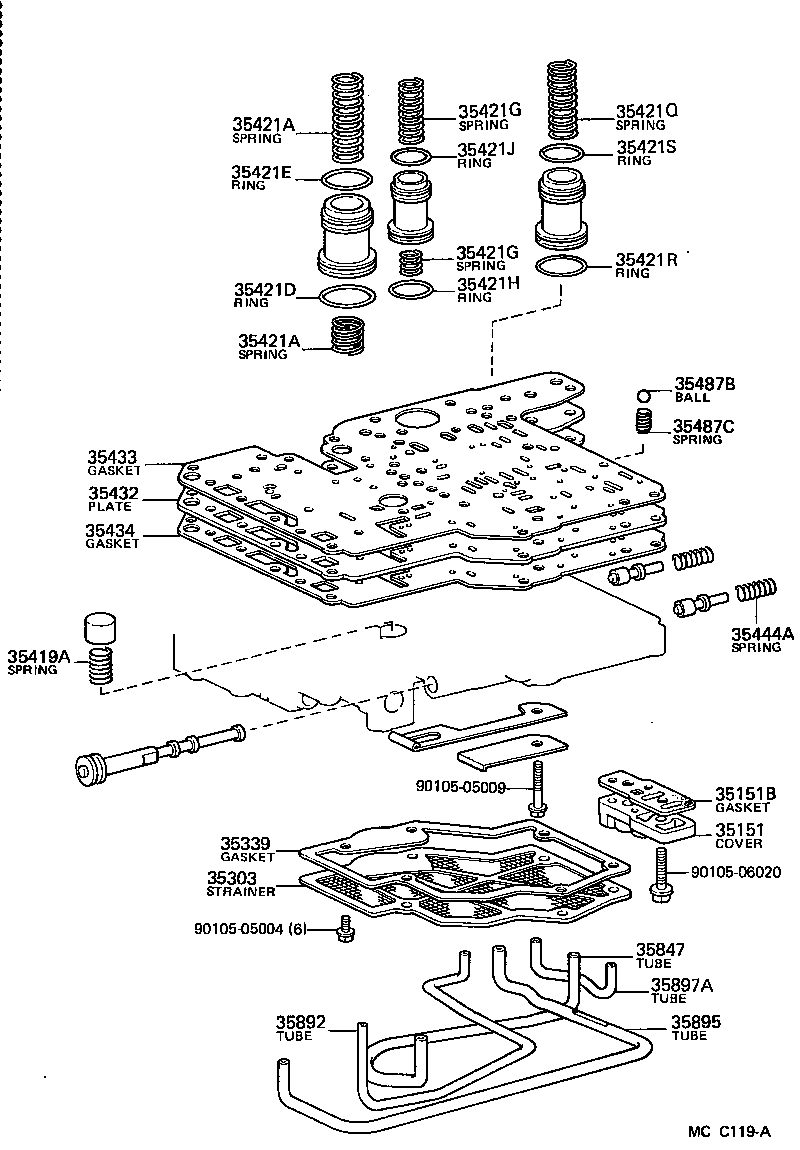

ILLUST NO. 2 OF 3(8505- )AE86..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35151 - COVER, TRANSMISSION CASE, LOWER | ||||
| 35151-30020 |
AE86..4FC |
1 | ||
| 35151B - GASKET, TRANSMISSION CASE LOWER COVER | ||||
| 35153-30010 |
AE86..4FC |
1 | ||
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30060 |
AE86..4FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-30060 |
AE86..4FC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-13003 |
AE8#..4FC |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-13012 |
AE86..4FC LWR |
1 | ||
| 90501-23083 |
AE86..4FC UPR |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-13012 |
AE86..4FC LWR |
1 | ||
| 90501-23083 |
AE86..4FC UPR |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
AE8#..4FC |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
AE8#..4FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-25002 |
AE8#..4FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-25002 |
AE8#..4FC |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
AE8#..4FC |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
AE8#..4FC |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-20063 |
AE86..4FC |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
AE8#..4FC |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
AE8#..4FC |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-12110 |
AE86..4FC |
1 | ||
| 35432-12111 |
AE86..4FC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-30072 |
AE86..4FC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-30062 |
AE86..4FC |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-08725 |
AE86..4FC LWR |
1 | ||
| 90501-09686 |
AE86..4FC INTERMEDIATE |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-30010 |
AE86..4FC |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-30030 |
AE86..4FC |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-30030 |
AE86..4FC |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30010 |
AE86..4FC |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90105-05009 | ||||
| 90105-06020 | ||||

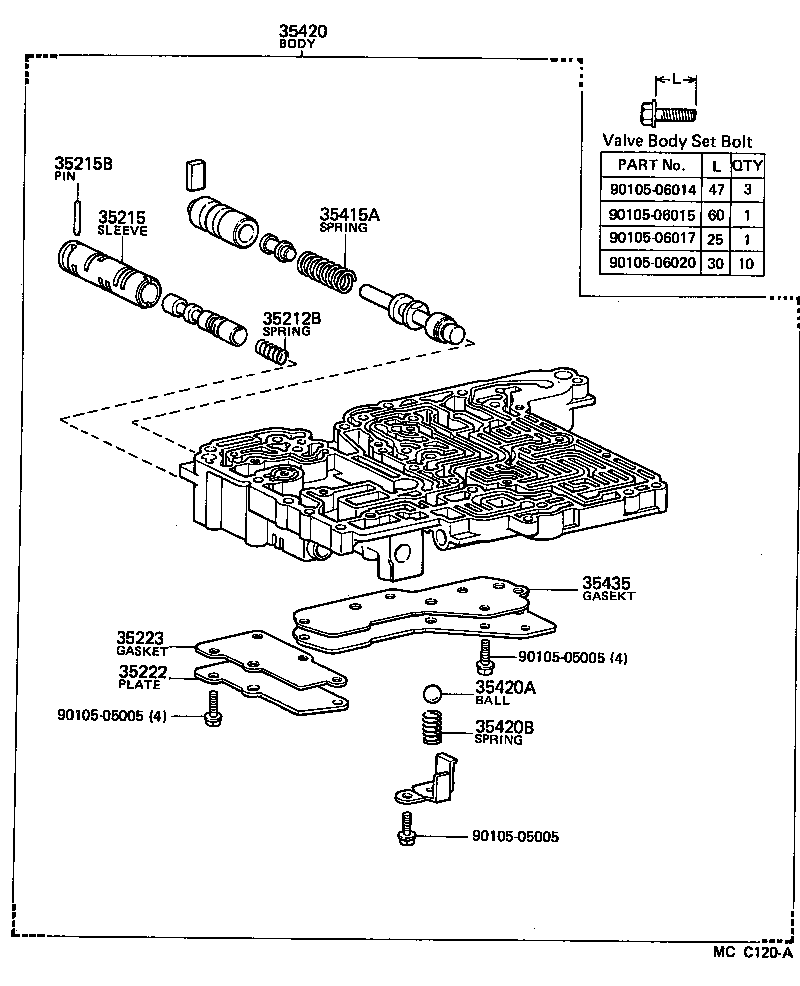

ILLUST NO. 3 OF 3(8505- )AE86..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-10113 |
AE86..4FC |
1 | ||
| 35215 - SLEEVE, LOCK UP RELAY VALVE | ||||
| 35215-30013 |
AE86..4FC |
1 | ||
| 35215-12030 |
AE86..4FC |
1 | ||
| 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) | ||||
| 90250-04027 |
AE86..4FC |
1 | ||
| 35222 - PLATE, LOCK UP RELAY VALVE BODY | ||||
| 35222-30010 |
AE86..4FC |
1 | ||
| 35223 - GASKET, LOCK UP RELAY VALVE BODY | ||||
| 35223-30010 |
AE86..4FC |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-18039 |
AE86..4FC |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-30171 |
AE86..4FC |
1 | ||
| 35420-12071 |
AE86..4FC |
1 | ||
| 35420-12070 |
AE86..4FC |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
AE8#..4FC |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
AE8#..4FC |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-30040 |
AE86..4FC |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06014 | ||||
| 90105-06015 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
