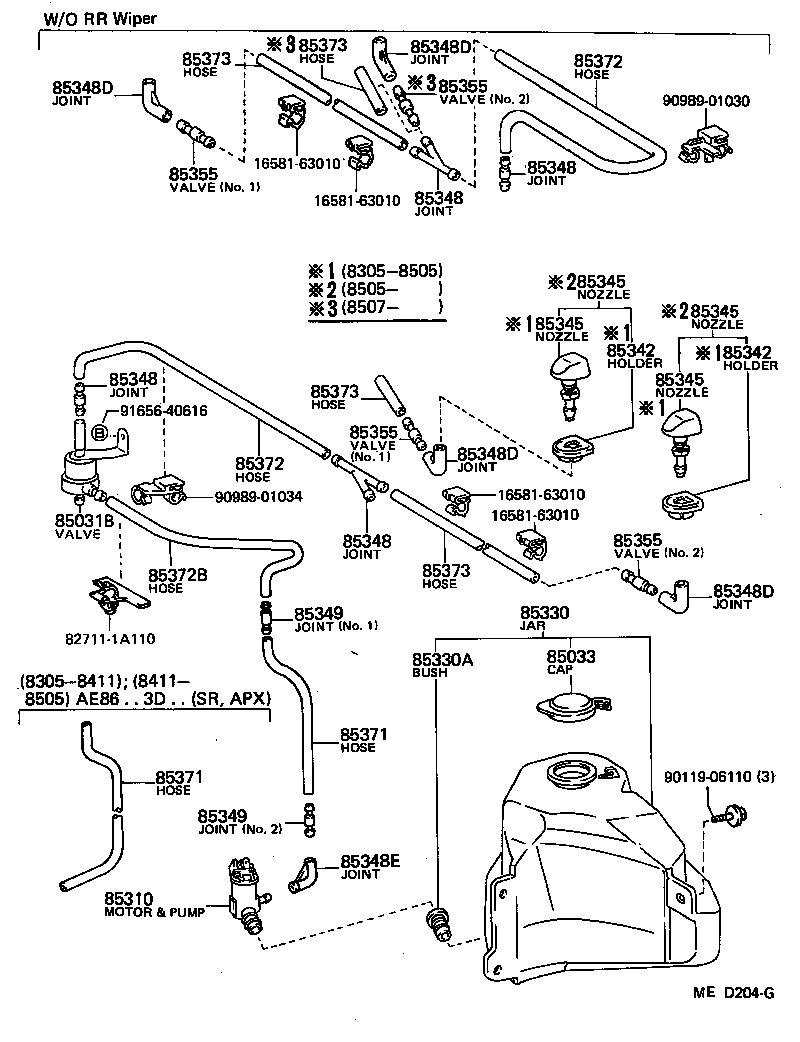

AE86-FSMVF (1983)
Toyota Sprinter Trueno
(8305- )AE86
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-12320 |
AE8# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
AE8# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-12340 |
AE86..2D |
1 | ||
| 85331-12340 |
AE86..2D;AE86..GTV |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AE8# |
1 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
AE8# |
2 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
AE8# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12250 |
AE8# |
2 | ||
| 85035-12150 |
AE8# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12250 |
AE8# |
2 | ||
| 85035-12150 |
AE8# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12250 |
AE8# |
2 | ||
| 85035-12150 |
AE8# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12250 |
AE8# |
2 | ||
| 85035-12150 |
AE8# |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE8# 3-WAY |
1 | ||
| 85348-12250 |
AE86..2D 3-WAY |
1 | ||
| 85355-87201 |
AE86..2D;AE8#..GTV,SE,SR,XL 2-WAY |
1 | ||
| 85349-89122 |
AE8# 2-WAY |
1 | ||
| 85355-87201 |
AE86..2D 2-WAY |
1 | ||
| 85348-12250 |
AE8# 3-WAY |
1 | ||
| 85355-87201 |
AE8# 2-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE8# 3-WAY |
1 | ||
| 85348-12250 |
AE86..2D 3-WAY |
1 | ||
| 85355-87201 |
AE86..2D;AE8#..GTV,SE,SR,XL 2-WAY |
1 | ||
| 85349-89122 |
AE8# 2-WAY |
1 | ||
| 85355-87201 |
AE86..2D 2-WAY |
1 | ||
| 85348-12250 |
AE8# 3-WAY |
1 | ||
| 85355-87201 |
AE8# 2-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE8# 3-WAY |
1 | ||
| 85348-12250 |
AE86..2D 3-WAY |
1 | ||
| 85355-87201 |
AE86..2D;AE8#..GTV,SE,SR,XL 2-WAY |
1 | ||
| 85349-89122 |
AE8# 2-WAY |
1 | ||
| 85355-87201 |
AE86..2D 2-WAY |
1 | ||
| 85348-12250 |
AE8# 3-WAY |
1 | ||
| 85355-87201 |
AE8# 2-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE8# 3-WAY |
1 | ||
| 85348-12250 |
AE86..2D 3-WAY |
1 | ||
| 85355-87201 |
AE86..2D;AE8#..GTV,SE,SR,XL 2-WAY |
1 | ||
| 85349-89122 |
AE8# 2-WAY |
1 | ||
| 85355-87201 |
AE86..2D 2-WAY |
1 | ||
| 85348-12250 |
AE8# 3-WAY |
1 | ||
| 85355-87201 |
AE8# 2-WAY |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE8# |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE8# |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE8# |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE8# |
2 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-14481 |
AE86..2D;AE86..GTV |
1 | ||
| 85355-14481 |
AE86 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AE86 NO.2 |
1 | ||
| 85349-89122 |
AE86..2D;AE86..GTV NO.2 |
1 | ||
| 85355-87201 |
AE8# NO.1 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AE86 NO.2 |
1 | ||
| 85349-89122 |
AE86..2D;AE86..GTV NO.2 |
1 | ||
| 85355-87201 |
AE8# NO.1 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-14080 |
AE8# NO.1 |
1 | ||
| 85355-87201 |
AE86 NO.2 |
1 | ||
| 85031-12250 |
AE8# NO.1 & NO.2 |
2 | ||
| 85031-14080 |
AE86..2D NO.1 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-14080 |
AE8# NO.1 |
1 | ||
| 85355-87201 |
AE86 NO.2 |
1 | ||
| 85031-12250 |
AE8# NO.1 & NO.2 |
2 | ||
| 85031-14080 |
AE86..2D NO.1 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-14080 |
AE8# NO.1 |
1 | ||
| 85355-87201 |
AE86 NO.2 |
1 | ||
| 85031-12250 |
AE8# NO.1 & NO.2 |
2 | ||
| 85031-14080 |
AE86..2D NO.1 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-14080 |
AE8# NO.1 |
1 | ||
| 85355-87201 |
AE86 NO.2 |
1 | ||
| 85031-12250 |
AE8# NO.1 & NO.2 |
2 | ||
| 85031-14080 |
AE86..2D NO.1 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06013 |
AE86..2D;AE86..GTV *H,L=200 |
1 | ||
| 90099-33080 |
AE86..2D;AE86..GTV *H,L=200 |
1 | ||
| 90099-33080 |
AE86..2D *H,L=200 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06013 |
AE86..2D;AE86..GTV *H,L=200 |
1 | ||
| 90099-33080 |
AE86..2D;AE86..GTV *H,L=200 |
1 | ||
| 90099-33080 |
AE86..2D *H,L=200 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
AE85;AE86..2D *H,L=450 |
1 | ||
| 90099-33299 |
AE85;AE86..2D *H,L=410 |
1 | ||
| 90099-33299 |
AE86..2D;AE8#..GTV,SE,SR,XL *H,L=450 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
AE85;AE86..2D *H,L=450 |
1 | ||
| 90099-33299 |
AE85;AE86..2D *H,L=410 |
1 | ||
| 90099-33299 |
AE86..2D;AE8#..GTV,SE,SR,XL *H,L=450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
AE86..2D;AE8#..GTV,SE,SR,XL *H,L=490 |
1 | ||
| 90446-06013 |
AE85;AE86..2D *H,L=490 |
1 | ||
| 90446-06013 |
AE85;AE86..2D *H,L=530 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
AE86..2D;AE8#..GTV,SE,SR,XL *H,L=490 |
1 | ||
| 90446-06013 |
AE85;AE86..2D *H,L=490 |
1 | ||
| 90446-06013 |
AE85;AE86..2D *H,L=530 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
AE86..2D;AE8#..GTV,SE,SR,XL *H,L=490 |
1 | ||
| 90446-06013 |
AE85;AE86..2D *H,L=490 |
1 | ||
| 90446-06013 |
AE85;AE86..2D *H,L=530 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
AE86..2D;AE8#..GTV,SE,SR,XL *H,L=490 |
1 | ||
| 90446-06013 |
AE85;AE86..2D *H,L=490 |
1 | ||
| 90446-06013 |
AE85;AE86..2D *H,L=530 |
1 | ||
| Common parts | ||||
| 16581-63010 | ||||
| 82711-1A110 | ||||
| 90119-06110 | ||||
| 90989-01030 | ||||
| 90989-01034 | ||||
| 91656-40616 | ||||
