AE86-FSMQF (1983)
Toyota Sprinter Trueno
Production
May 1983
-
Apr 1987
Engine
4AGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )5F

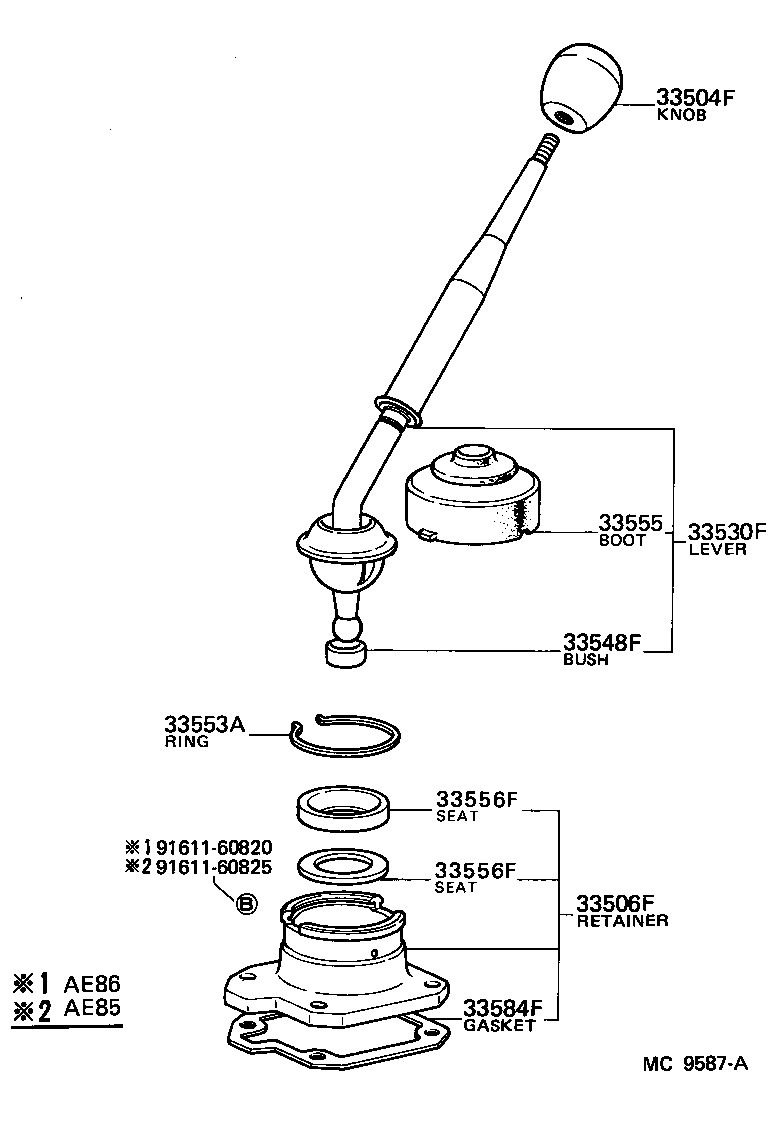

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-1215001 |
AE86 LEATHER,BLACK,BLACK,TRIM2# |
1 | ||
| 33504-2401001 |
AE8#..5F..(GT,GTV,SE,SR) BLACK,BLACK,TRIM2# |
1 | ||
| 33504-2401001 |
AE8#..5F..(APX,GT,GTV,SE,SR) BLACK,BLACK,TRIM2# |
1 | ||
| 33504-1215001 |
AE8#..5F..(APX,GT,GTV,SR) LEATHER,BLACK,BLACK,TRIM2# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-14021 |
AE8#..5F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12450 |
AE86..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-14010 |
AE8#..5F |
1 | ||
| 33553A - RING, SNAP (FOR SHIFT LEVER SPRING SHEET) | ||||
| 90521-49003 |
AE8#..5F |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-12090 |
AE8#..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-14020 |
AE8#..5F T=3.0 |
1 | ||
| 33556-14010 |
AE8#..5F T=13.5 |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-14020 |
AE8#..5F T=3.0 |
1 | ||
| 33556-14010 |
AE8#..5F T=13.5 |
1 | ||
| 33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT) | ||||
| 33584-20010 |
AE8#..5F |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
