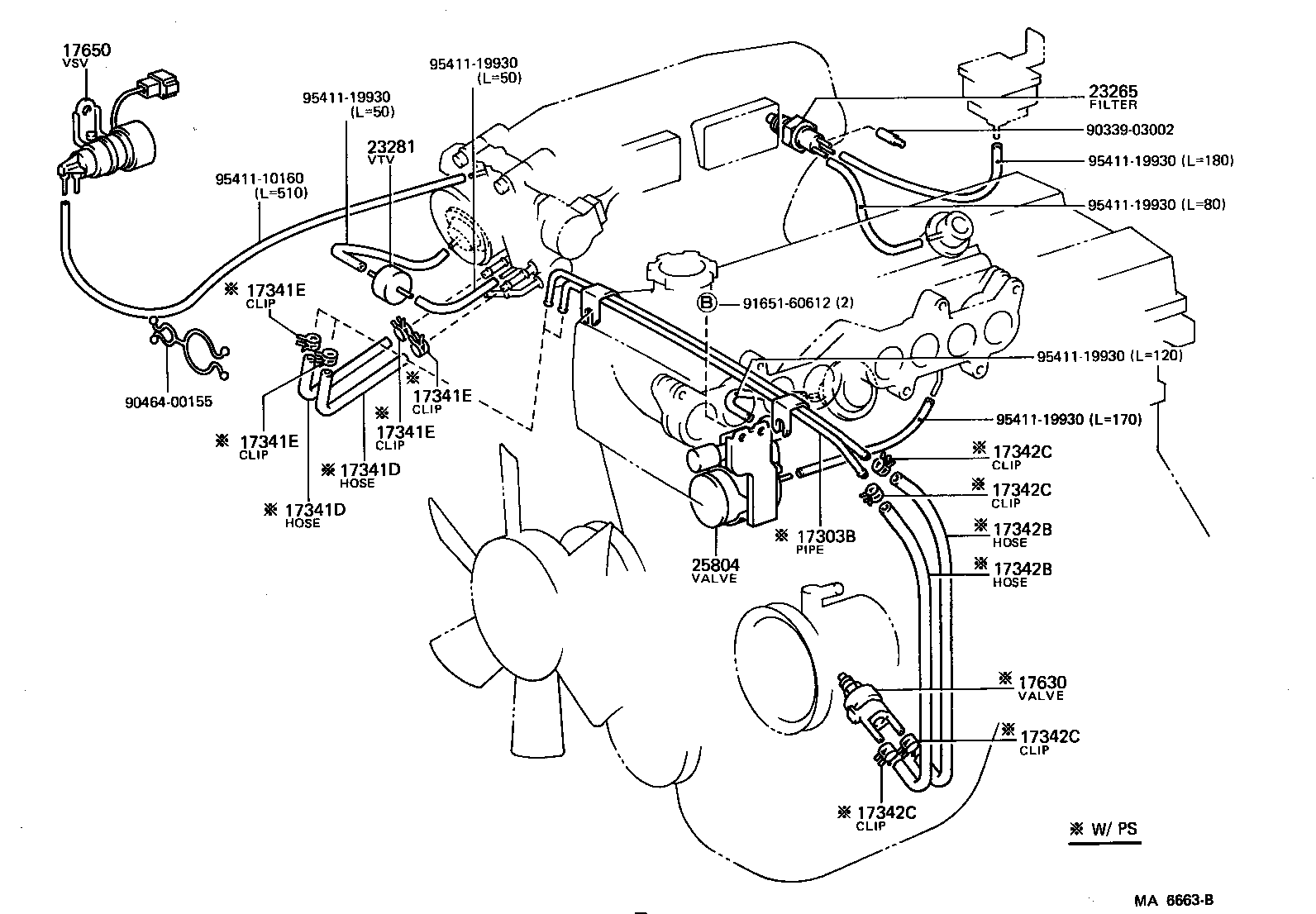

Toyota Sprinter trueno AE86 VACUUM PIPING

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-16020	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-16030	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	2
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-16030	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	4
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-16020	4AGEU..AE86..APX,GT W/PS	05/1983 - 07/1984	2
17342-16040	4AGEU..AE86..APX,GT W/PS	07/1984 - 04/1987	2
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-16020	4AGEU..AE86..APX,GT W/PS	05/1983 - 07/1984	2
17342-16040	4AGEU..AE86..APX,GT W/PS	07/1984 - 04/1987	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	4
17630 - VALVE ASSY, AIR CONTROL
17630-70010	4AGEU..AE86..APX,GT W/PS	05/1983 - 04/1987	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-12250	4AGEU..AE86	05/1983 - 07/1983	1
89570-12251	4AGEU..AE86	07/1983 - 04/1987	1
23265 - FILTER, GAS, NO.1
90917-11027	4AGEU..AE86	05/1983 - 04/1987	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	4AGEU..AE86	05/1983 - 04/1987	1
25804 - VALVE SET, VACUUM CONTROL
25804-16010	4AGEU..AE86	05/1983 - 04/1987	1
Common parts
90339-03002
90464-00155
91651-60612
95411-10160
95411-19930

AE86-FSMQF (1983)

(8305- )4AGEU

(8305- )
