AE86-FCMQF (1983)
Toyota Sprinter Trueno
Production
May 1983
-
Apr 1987
Engine
4AGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )AE86

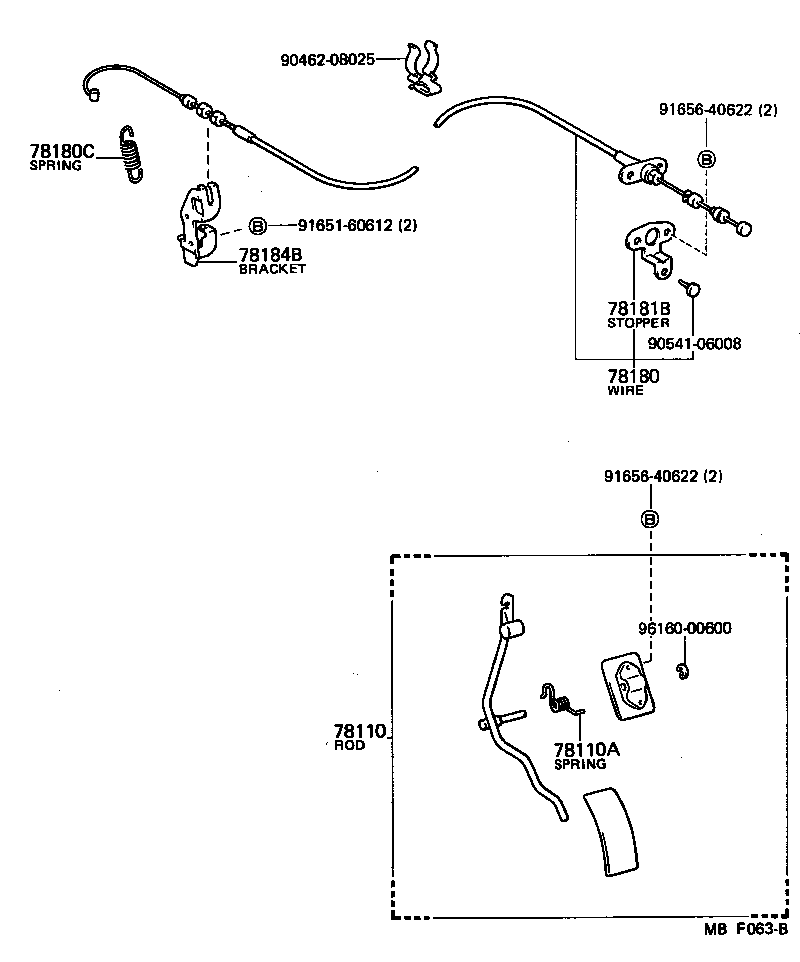

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78010-12110 |
AE8#..APX,GT,GTV,SR |
1 | ||
| 78010-12110 |
AE8# |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18055 |
AE8# |
1 | ||
| 90508-18398 |
AE8# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12410 |
AE86 |
1 | ||
| 78180C - SPRING, TENSION (FOR ACCELERATOR WIRE) | ||||
| 90507-11004 |
AE86 |
1 | ||
| 90507-10009 |
AE86 |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-12090 |
AE8# |
1 | ||
| 78181-12051 |
AE8# |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12150 |
AE86..5F |
1 | ||
| Common parts | ||||
| 90462-08025 | ||||
| 90541-06008 | ||||
| 91651-60612 | ||||
| 91656-40622 | ||||
| 96160-00600 | ||||
