AE85-FSPNS (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

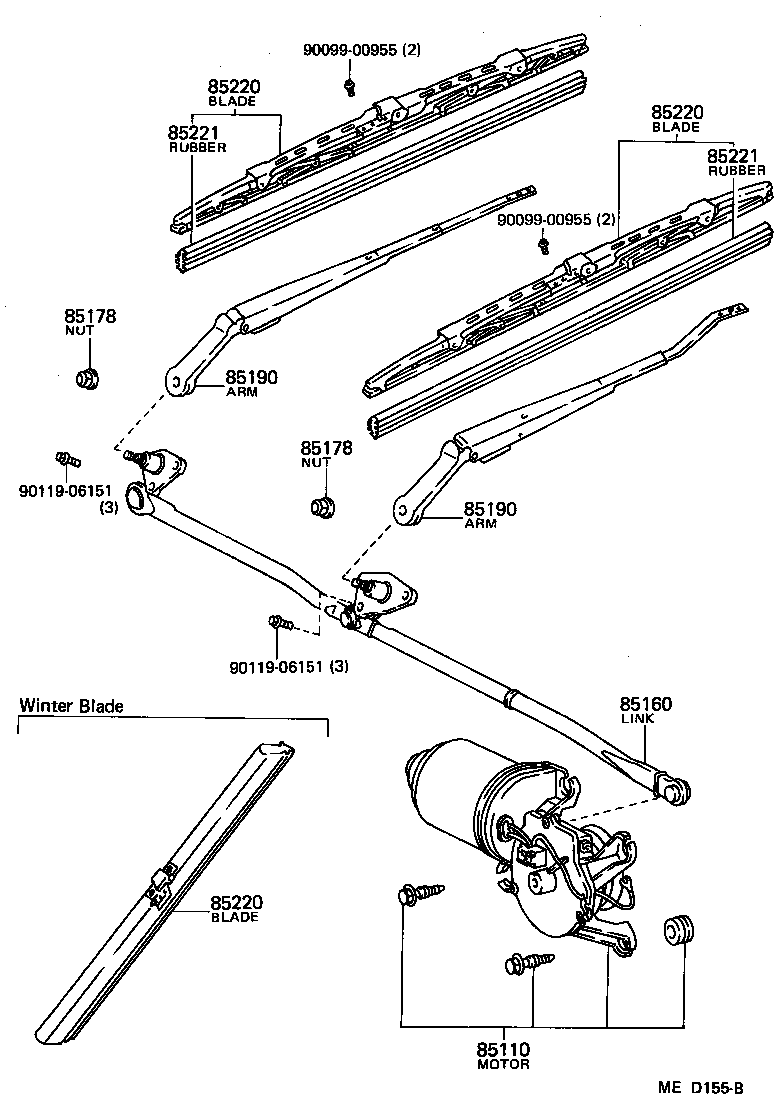

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85220 85220 85220 85221 85221 9009900955 9009900955 9011906151 9011906151
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12550

AE8#

COLD SPEC

 1
85110-12290

AE8#

 1
85110-12540

AE8#

 1
85110-12610

AE8#

COLD SPEC

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-12340

AE8#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08029

AE8#

 2
90176-08033

AE8#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08029

AE8#

 2
90176-08033

AE8#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-12570

AE8#

RH

 1
85210-12110

AE8#

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-12570

AE8#

RH

 1
85210-12110

AE8#

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-40040

AE8#

RH,WINTER BLADE

 1
85220-12450

AE8#

LH

 1
85220-32300

AE8#

RH

 1
85220-14170

AE8#

LH,WINTER BLADE

 1
85220-32310

AE8#

RH

 1
85220-16580

AE8#

RH,WINTER BLADE

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-40040

AE8#

RH,WINTER BLADE

 1
85220-12450

AE8#

LH

 1
85220-32300

AE8#

RH

 1
85220-14170

AE8#

LH,WINTER BLADE

 1
85220-32310

AE8#

RH

 1
85220-16580

AE8#

RH,WINTER BLADE

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-40040

AE8#

RH,WINTER BLADE

 1
85220-12450

AE8#

LH

 1
85220-32300

AE8#

RH

 1
85220-14170

AE8#

LH,WINTER BLADE

 1
85220-32310

AE8#

RH

 1
85220-16580

AE8#

RH,WINTER BLADE

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30110

AE8#

RH

 1
85221-12230

AE8#

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30110

AE8#

RH

 1
85221-12230

AE8#

LH

 1
Common parts
90099-00955
90119-06151
