AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

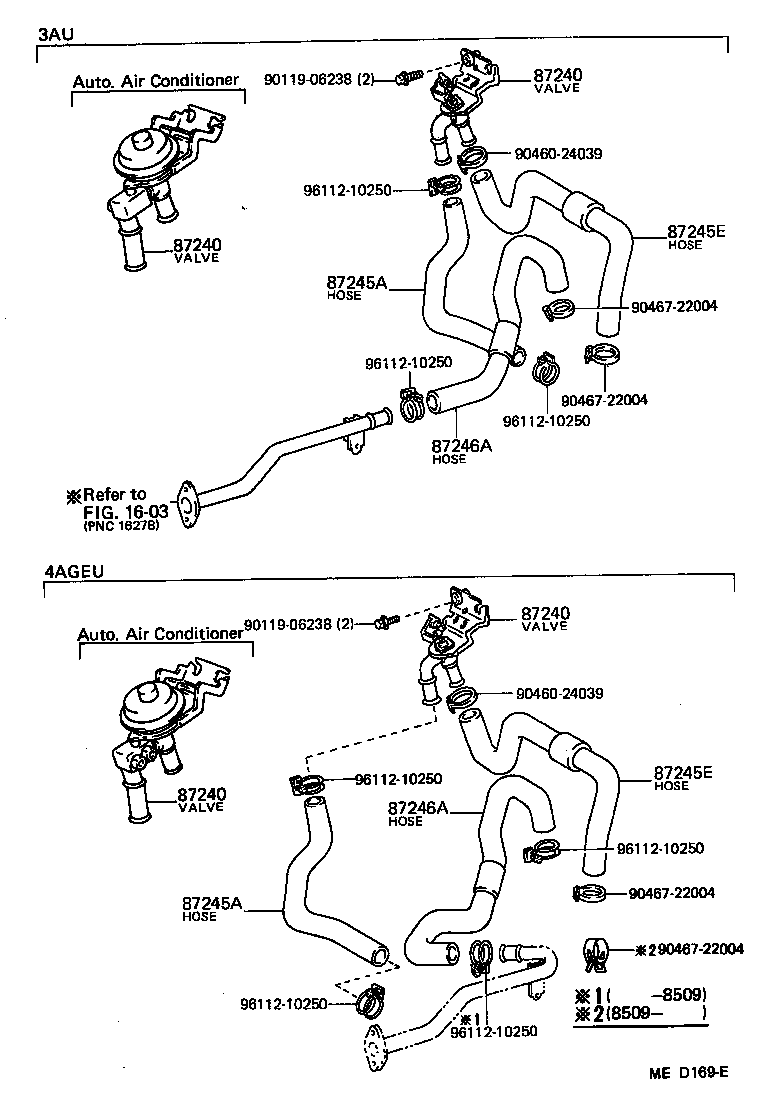

Click highlighted areas on diagram

diagram 1603 87240 87240 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9011906238 9011906238 9046024039 9046024039 9046722004 9046722004 9046722004 9046722004 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
88670-12080

AE85

W/*AAC

 1
87240-12210

AE8#

 1
87240 - VALVE ASSY, HEATER WATER
88670-12080

AE85

W/*AAC

 1
87240-12210

AE8#

 1
87240 - VALVE ASSY, HEATER WATER
88670-12080

AE85

W/*AAC

 1
87240-12210

AE8#

 1
87240 - VALVE ASSY, HEATER WATER
88670-12080

AE85

W/*AAC

 1
87240-12210

AE8#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12800

AE8#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12800

AE8#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12770

AE8#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12770

AE8#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12810

AE85

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12810

AE85

 1
Common parts
90119-06238
90460-24039
90467-22004
96112-10250
Linked diagrams
1603
