AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

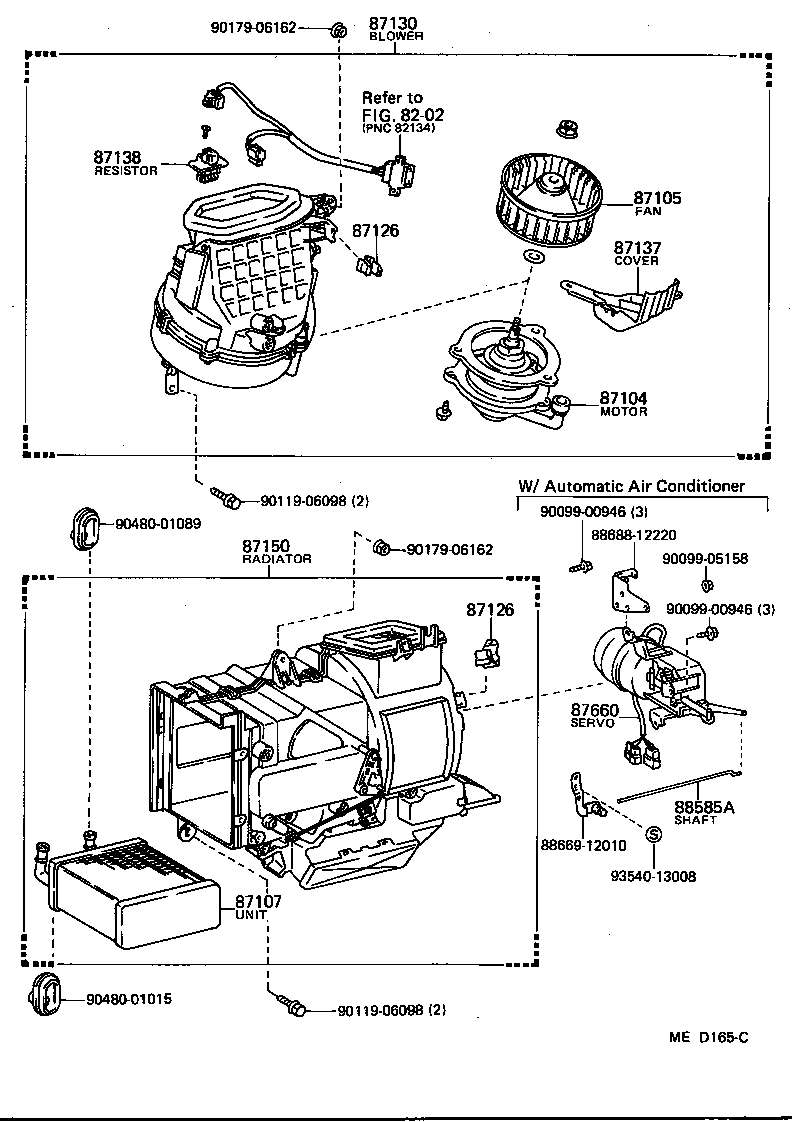

Click highlighted areas on diagram

diagram 8202 87104 87105 87107 87126 87126 87130 87137 87138 87150 87660 88585A 8866912010 8868812220 9009900946 9009900946 9009905158 9011906098 9011906098 9017906162 9017906162 9048001015 9048001089 9354013008
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-12120

AE8#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020

AE8#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12350

AE8#

COLD SPEC

 1
87107-12210

AE8#

 1
87126 - CLAMP, HEATER CONTROL
87126-12040

AE8#

 2
87126 - CLAMP, HEATER CONTROL
87126-12040

AE8#

 2
87130 - BLOWER ASSY, HEATER, FRONT
87130-12160

AE8#

 1
87130-12230

AE8#

COLD SPEC

 1
87137 - COVER, HEATER BLOWER
87137-12020

AE8#

 1
87138 - RESISTOR, HEATER BLOWER
87138-12091

AE8#

 1
87150 - RADIATOR ASSY, HEATER
87150-12250

AE8#

COLD SPEC

 1
87150-12230

AE8#

 1
87660 - SERVO ASSY, AIR CONDITIONER
88660-12010

AE8#

 1
88585A - SHAFT, HEATER AIR DAMPER
88585-12010

AE8#

 1
Common parts
88669-12010
88688-12220
90099-00946
90099-05158
90119-06098
90179-06162
90480-01015
90480-01089
93540-13008
