AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987

Engine 3AU

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8305- )

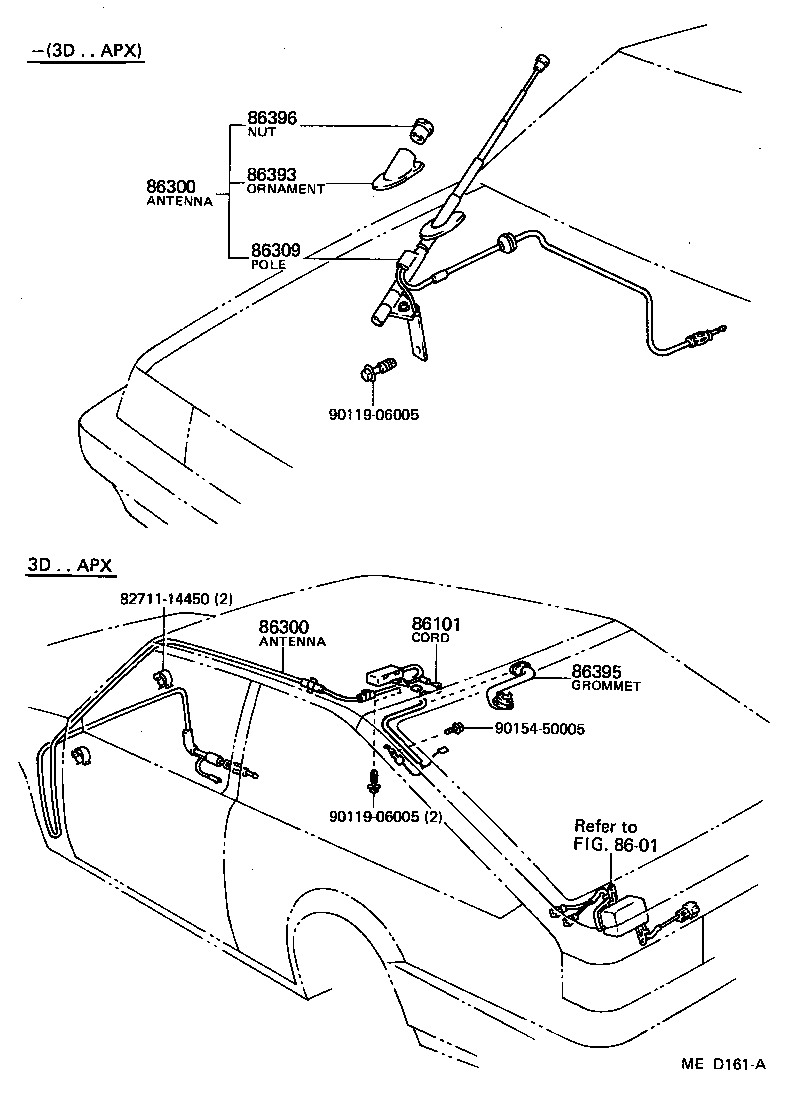

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86300 - ANTENNA ASSY, W/HOLDER
86300-12260	AE86..2D;AE8#..GTV,SE,SR,XL	05/1983 - 04/1987	1
86300 - ANTENNA ASSY, W/HOLDER
86300-12260	AE86..2D;AE8#..GTV,SE,SR,XL	05/1983 - 04/1987	1
86309 - POLE SUB-ASSY, PILLAR ANTENNA
86309-12090	AE86..2D;AE8#..GTV,SE,SR,XL	05/1983 - 04/1987	1
86393 - ORNAMENT, ANTENNA
86392-12050	AE86..2D;AE8#..GTV,SE,SR,XL	05/1983 - 04/1987	1
86396 - NUT, ANTENNA
86396-12020	AE86..2D;AE8#..GTV,SE,SR,XL	05/1983 - 04/1987	1
Common parts
82711-14450
90119-06005
90154-50005
Linked diagrams
8601
