AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

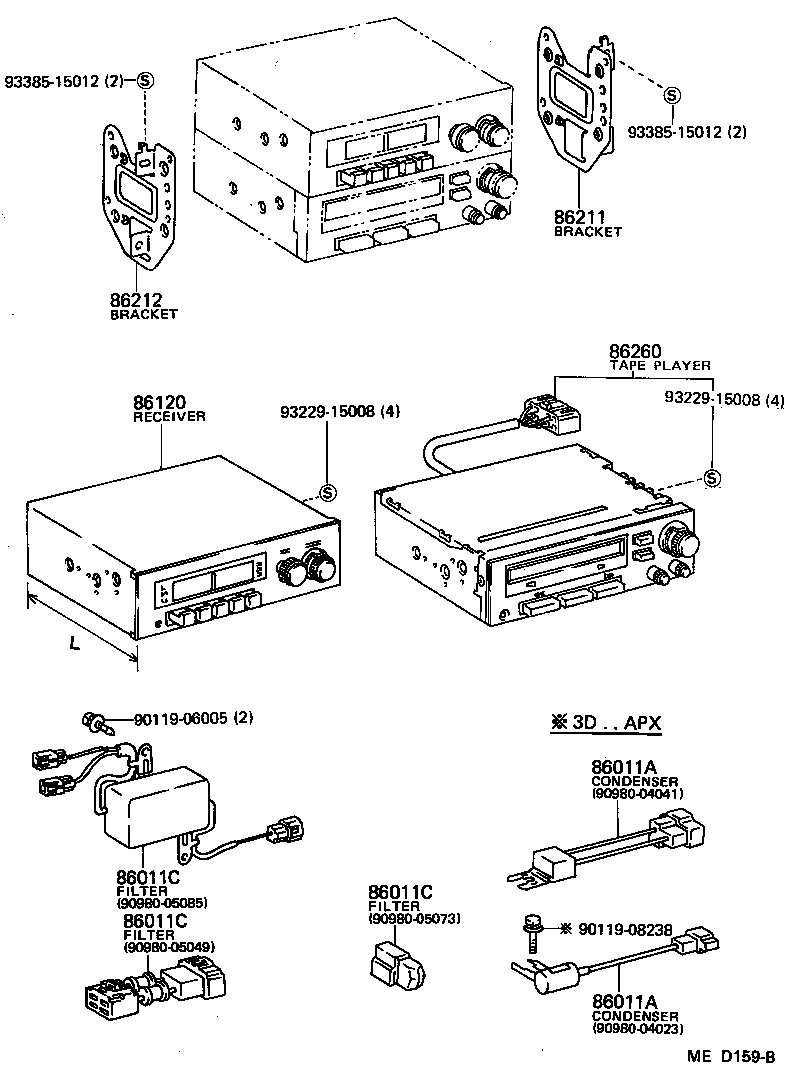

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86011C 86011C 86120 86211 86212 86260 9011906005 9011908238 9098004023 9098004041 9098005049 9098005073 9098005085 9322915008 9322915008 9338515012 9338515012
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04023

AE85

VOLTAGE REGULATOR

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

AE85

VOLTAGE REGULATOR

 1
86011C - FILTER, NOISE
90980-05073

AE8#

 1
90980-05049

AE8#

 1
86011C - FILTER, NOISE
90980-05073

AE8#

 1
90980-05049

AE8#

 1
86011C - FILTER, NOISE
90980-05073

AE8#

 1
90980-05049

AE8#

 1
86120 - RECEIVER ASSY, RADIO
86120-14421

AE8#

AM,5-PB,L=60

 1
86120-19016

AE8#

FUJITSU TEN,*19,L=90

 1
86120-14420

AE8#

AM,5-PB,L=100

 1
86120-19025

AE8#

*18

 1
86120-19015

AE8#

*19,L=130

 1
86120-39015

AE8#

*35

 1
86211 - BRACKET, RADIO, NO.1
86211-12170

AE8#

 1
86212 - BRACKET, RADIO, NO.2
86212-12150

AE8#

 1
86260 - TAPE PLAYER ASSY
86260-19025

AE8#

W/DOLBY

 1
86260-19015

AE8#

W/O DOLBY

 1
Common parts
90119-06005
90119-08238
90980-04023
90980-04041
90980-05049
90980-05073
90980-05085
93229-15008
93385-15012
