AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

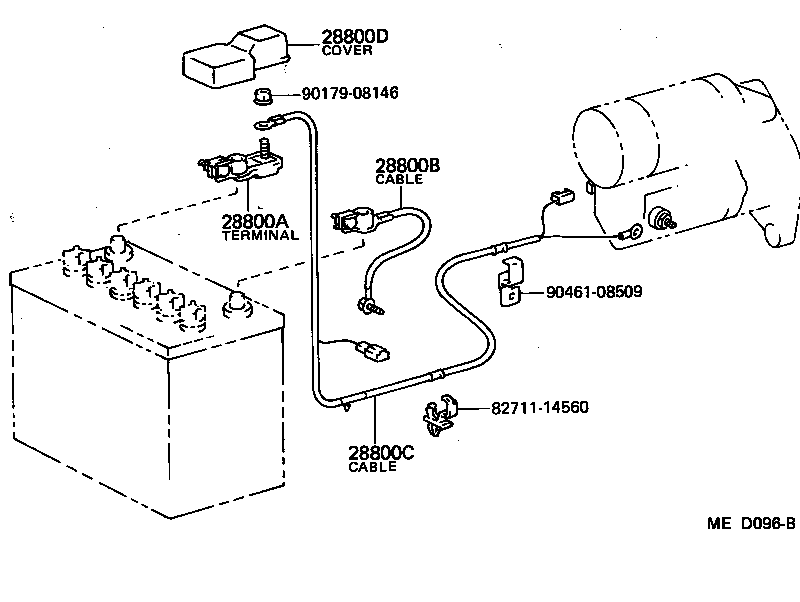

Click highlighted areas on diagram

diagram 28800A 28800B 28800C 28800D 8271114560 9017908146 9046108509
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05028

3AU,4AGEU..AE8#

 1
90982-05027

3AU,4AGEU..AE8#

 1
28800B - CABLE, BATTERY TO GROUND
82123-12080

3AU,4AGEU..AE8#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-12180

3AU..AE85

STARTER=12V 1.0KW

 1
82122-12160

3AU..AE85

STARTER=12V 0.8KW

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12190

3AU,4AGEU..AE8#

 1
Common parts
82711-14560
90179-08146
90461-08509
