AE85-FSPES (1983)
Toyota Sprinter Trueno
Production
May 1983
-
Apr 1987
Engine
3AU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

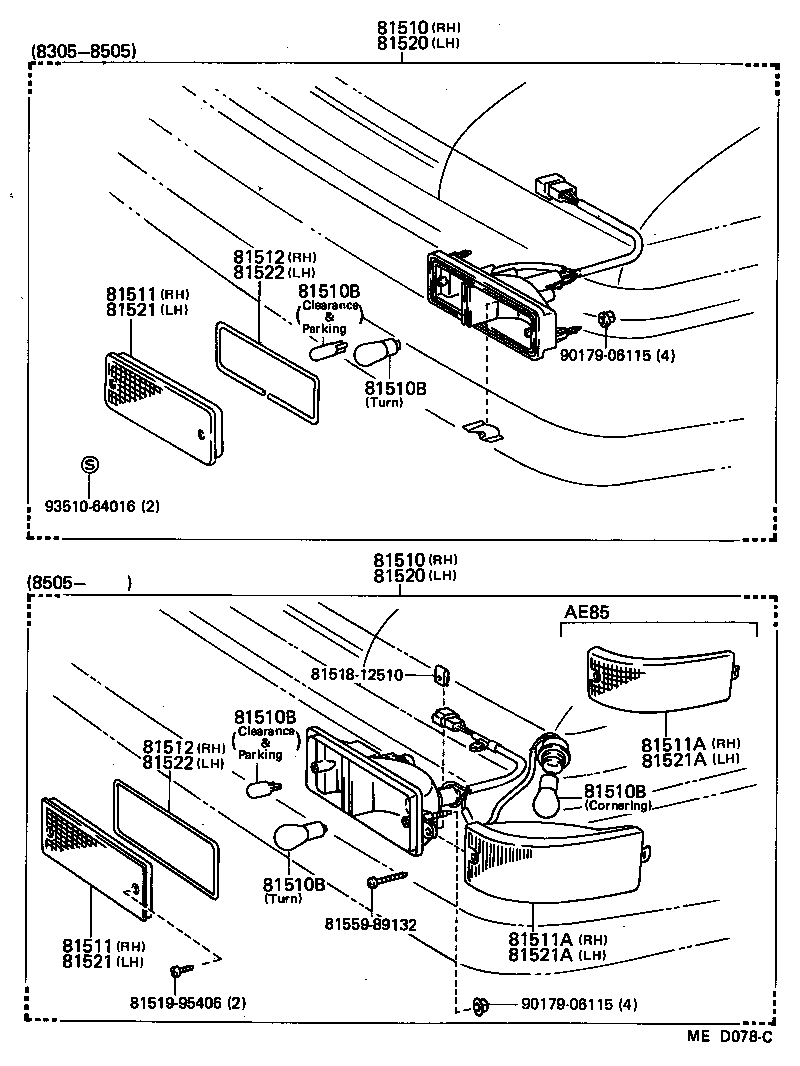

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80002 |
AE8# |
1 | ||
| 81510-80025 |
AE85 |
1 | ||
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80002 |
AE8# |
1 | ||
| 81510-80025 |
AE85 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-12050 |
AE8# 12V 5W,12V 5W(CLEARANCE & PARKING) |
2 | ||
| 99132-11230 |
AE8# 12V 23W,12V 23W(TURN) |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-12050 |
AE8# 12V 5W,12V 5W(CLEARANCE & PARKING) |
2 | ||
| 99132-11230 |
AE8# 12V 23W,12V 23W(TURN) |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-12050 |
AE8# 12V 5W,12V 5W(CLEARANCE & PARKING) |
2 | ||
| 99132-11230 |
AE8# 12V 23W,12V 23W(TURN) |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-12050 |
AE8# 12V 5W,12V 5W(CLEARANCE & PARKING) |
2 | ||
| 99132-11230 |
AE8# 12V 23W,12V 23W(TURN) |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-12050 |
AE8# 12V 5W,12V 5W(CLEARANCE & PARKING) |
2 | ||
| 99132-11230 |
AE8# 12V 23W,12V 23W(TURN) |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-22221 |
AE8# |
1 | ||
| 81514-12510 |
AE8# |
1 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-22221 |
AE8# |
1 | ||
| 81514-12510 |
AE8# |
1 | ||
| 81511A - LENS,CORNERING LAMP,RH | ||||
| 81511-12500 |
AE85 |
1 | ||
| 81511A - LENS,CORNERING LAMP,RH | ||||
| 81511-12500 |
AE85 |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-14140 |
AE8# |
1 | ||
| 81512-12510 |
AE8# |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-14140 |
AE8# |
1 | ||
| 81512-12510 |
AE8# |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80002 |
AE8# |
1 | ||
| 81520-80025 |
AE85 |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80002 |
AE8# |
1 | ||
| 81520-80025 |
AE85 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-22221 |
AE8# |
1 | ||
| 81524-12490 |
AE8# |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-22221 |
AE8# |
1 | ||
| 81524-12490 |
AE8# |
1 | ||
| 81521A - LENS,CORNERING LAMP,LH | ||||
| 81521-12480 |
AE85 |
1 | ||
| 81521A - LENS,CORNERING LAMP,LH | ||||
| 81521-12480 |
AE85 |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-14140 |
AE8# |
1 | ||
| 81512-12510 |
AE8# |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-14140 |
AE8# |
1 | ||
| 81512-12510 |
AE8# |
1 | ||
| Common parts | ||||
| 81518-12510 | ||||
| 81519-95406 | ||||
| 81559-89132 | ||||
| 90179-06115 | ||||
| 93510-64016 | ||||
