AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

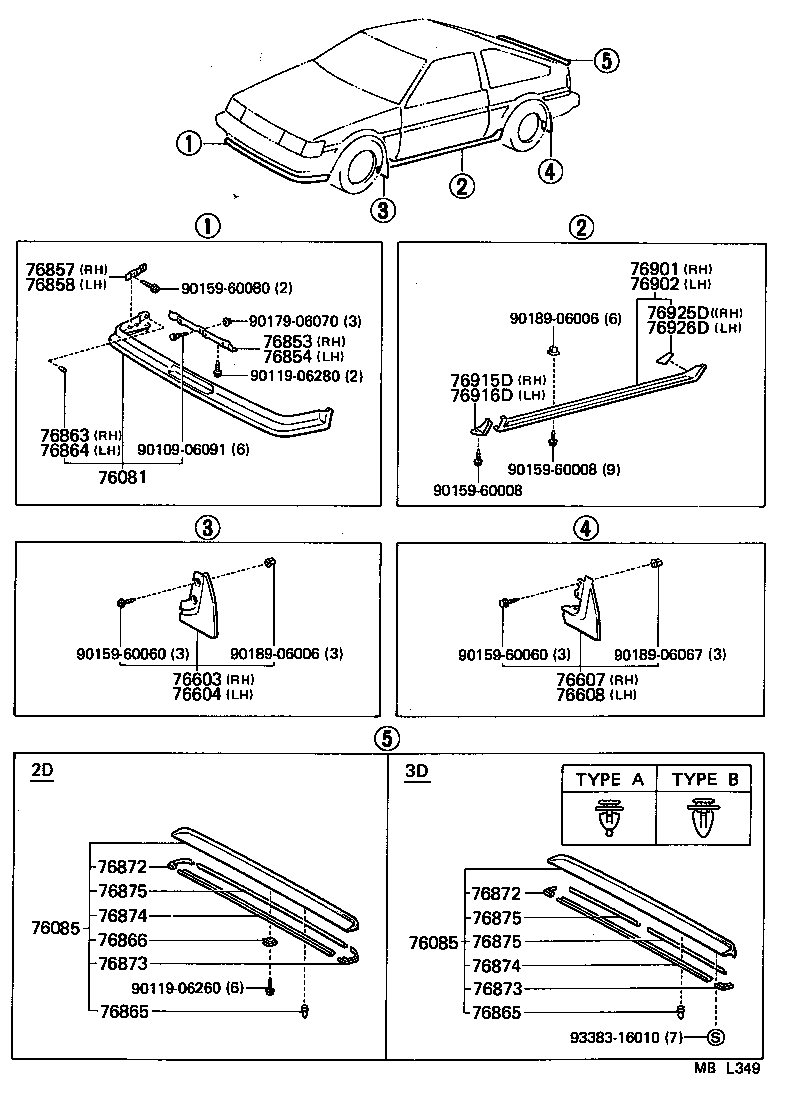

Click highlighted areas on diagram

diagram 76081 76085 76085 76603 76604 76607 76608 76853 76854 76857 76858 76863 76864 76865 76865 76866 76872 76872 76873 76873 76874 76874 76875 76875 76875 76901 76902 76915D 76916D 76925D 76926D 9010906091 9011906260 9011906280 9015960008 9015960008 9015960060 9015960060 9015960080 9017906070 9018906006 9018906006 9018906067 9338316010
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19076

AE8#..APX,GT,GTV,SE,SR

 1
76621-19075

AE8#

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19075

AE8#

 1
76622-19076

AE8#..APX,GT,GTV,SE,SR

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-19165

AE8#

 1
76607-19265

AE8#..APX,GT,GTV,SE,SR

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-19165

AE8#

 1
76608-19265

AE8#..APX,GT,GTV,SE,SR

 1
Common parts
90109-06091
90119-06260
90119-06280
90159-60008
90159-60060
90159-60080
90179-06070
90189-06006
90189-06067
93383-16010
