AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)GT,XL ; (8505- )GT,SE,XL

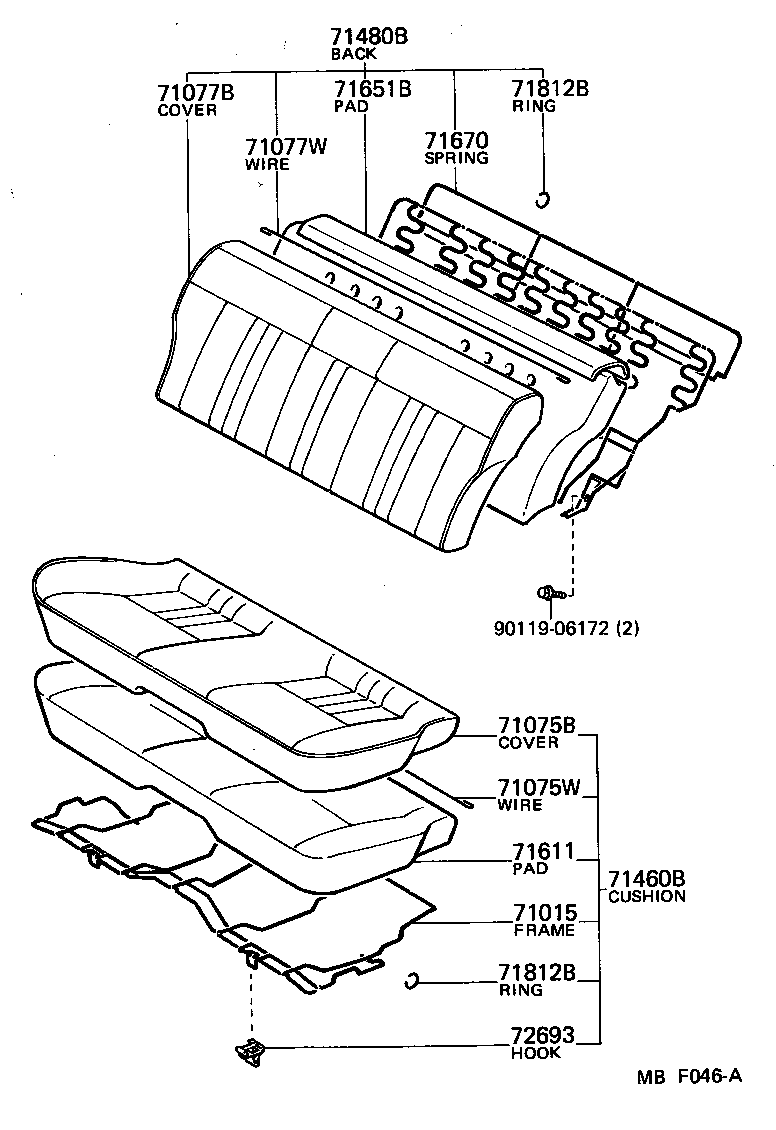

Click highlighted areas on diagram

diagram 71015 71075B 71075W 71077B 71077W 71460B 71480B 71611 71651B 71670 71812B 71812B 72693 9011906172
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-12240

AE8#

 1
71015-12241

AE8#

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-1285002

AE8#..GT,SE

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71065-1285004

AE8#..GT,SE

FB,BLUE,BLUE,TRIM8#

 1
71065-1285104

AE8#..GT,SE

FB,LIGHT BLUE,LIGHT BROWN,TRIM8#

 1
71065-1285102

AE8#..GT,SE

FB,ROSE BEIGE,ROSE BEIGE,TRIM3#

 1
71065-1A67003

AE8#..GT,SE

FB,GRAY,GRAY,TRIM2#

 1
71065-1A67103

AE8#..GT,SE

FB,GRAY,GRAY,TRIM2#

 1
71075W - WIRE, REAR SEAT CUSHION COVER
90580-20133

AE8#

L=1240

 1
90580-20009

AE8#

L=970

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1H45003

AE8#..GT,SE

FB,GRAY,GRAY,TRIM2#

 1
71077W - WIRE, REAR SEAT BACK COVER
90580-20032

AE8#..APX,GTV,SE,SR

L=320

 2
90580-29005

AE8#..APX,GTV,SE,SR

L=435

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1A81002

AE8#..GT,SE

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71460-1A81004

AE8#..GT,SE

FB,BLUE,BLUE,TRIM8#

 1
71460-1A81102

AE8#..GT,SE

FB,ROSE BEIGE,RED/MAROON,TRIM3#

 1
71560-1A67003

AE8#..GT,SE

FB,GRAY,GRAY,TRIM2#

 1
71560-1A67103

AE8#..GT,SE

FB,GRAY,GRAY,TRIM2#

 1
71460-1A81104

AE8#..GT,SE

FB,LIGHT BLUE,BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1H54003

AE8#..GT,SE

FB,GRAY,GRAY,TRIM2#

 1
71611 - PAD, REAR SEAT CUSHION
71611-12410

AE8#..2D

 1
71611-12390

AE8#..2D

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-12030

AE8#..GT,SE

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-12200

AE8#..GT,SE,XL

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90467-18071

AE8#

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90467-18071

AE8#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12010

AE8#

 2
Common parts
90119-06172

(8305-8505)APX,GTV,SE,SR ; (8505- )APX,GTV,SR

Click highlighted areas on diagram

diagram 71015 71017 71018 71075B 71075W 71077S 71077W 71077W 71078S 71303 71303 71305A 71460B 71480S 71490S 71611 71651S 71652S 71812B 71812B 71812B 72601 72603 72604 72619 72646 72646 72656 72656 72665 72666 72693 9011906029 9011906029 9011906029 9011906207 9151160816 9151160816 9152160814 9166560825 9166560825 9356054012 9356054012
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-12240

AE8#

 1
71015-12241

AE8#

 1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71202-12060

AE8#..GTV,SE,SR

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71203-12040

AE8#..GTV,SE,SR

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-1285002

AE8#..GT,SE

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71065-1285004

AE8#..GT,SE

FB,BLUE,BLUE,TRIM8#

 1
71065-1285104

AE8#..GT,SE

FB,LIGHT BLUE,LIGHT BROWN,TRIM8#

 1
71065-1285102

AE8#..GT,SE

FB,ROSE BEIGE,ROSE BEIGE,TRIM3#

 1
71065-1A67003

AE8#..GT,SE

FB,GRAY,GRAY,TRIM2#

 1
71065-1A67103

AE8#..GT,SE

FB,GRAY,GRAY,TRIM2#

 1
71075W - WIRE, REAR SEAT CUSHION COVER
90580-20133

AE8#

L=1240

 1
90580-20009

AE8#

L=970

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1H09002

AE85..SE

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71077-1H09104

AE85..SE

FB,LIGHT BLUE,LIGHT BLUE,TRIM8#

 1
71077-1H09004

AE85..SE

FB,BLUE,BLUE,TRIM8#

 1
71077-1H09102

AE85..SE

FB,ROSE BEIGE,ROSE BEIGE,TRIM3#

 1
71077W - WIRE, REAR SEAT BACK COVER
90580-20032

AE8#..APX,GTV,SE,SR

L=320

 2
90580-29005

AE8#..APX,GTV,SE,SR

L=435

 2
71077W - WIRE, REAR SEAT BACK COVER
90580-20032

AE8#..APX,GTV,SE,SR

L=320

 2
90580-29005

AE8#..APX,GTV,SE,SR

L=435

 2
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-1A08004

AE85..SE

FB,BLUE,BLUE,TRIM8#

 1
71078-1A08002

AE85..SE

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71078-1A08104

AE85..SE

FB,LIGHT BLUE,LIGHT BLUE,TRIM8#

 1
71078-1A08102

AE85..SE

FB,ROSE BEIGE,ROSE BEIGE,TRIM3#

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-12040

AE8#..APX,GTV,SE,SR

 2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-12040

AE8#..APX,GTV,SE,SR

 2
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-12050

AE8#..APX,GTV,SE,SR

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1A81002

AE8#..GT,SE

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71460-1A81004

AE8#..GT,SE

FB,BLUE,BLUE,TRIM8#

 1
71460-1A81102

AE8#..GT,SE

FB,ROSE BEIGE,RED/MAROON,TRIM3#

 1
71560-1A67003

AE8#..GT,SE

FB,GRAY,GRAY,TRIM2#

 1
71560-1A67103

AE8#..GT,SE

FB,GRAY,GRAY,TRIM2#

 1
71460-1A81104

AE8#..GT,SE

FB,LIGHT BLUE,BLUE,TRIM8#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-1H16102

AE85..SE

FB,ROSE BEIGE,RED/MAROON,TRIM3#

 1
71480-1H16002

AE85..SE

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71480-1H16004

AE85..SE

FB,BLUE,BLUE,TRIM8#

 1
71480-1H16104

AE85..SE

FB,LIGHT BLUE,BLUE,TRIM8#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-1A14004

AE85..SE

FB,BLUE,BLUE,TRIM8#

 1
71490-1A14002

AE85..SE

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71490-1A14104

AE85..SE

FB,LIGHT BLUE,BLUE,TRIM8#

 1
71490-1A14102

AE85..SE

FB,ROSE BEIGE,RED/MAROON,TRIM3#

 1
71611 - PAD, REAR SEAT CUSHION
71611-12410

AE8#..2D

 1
71611-12390

AE8#..2D

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-12370

AE8#..GTV,SE,SR

 1
71651-12400

AE8#..GTV,SE,SR

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-12300

AE8#..GTV,SE,SR

 1
71652-12280

AE8#..GTV,SE,SR

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90467-18071

AE8#

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90467-18071

AE8#

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90467-18071

AE8#

 1
72601 - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-12070

AE8#..APX,GTV,SE,SR

 2
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-12080

AE8#..APX,GTV,SE,SR

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-12070

AE8#..APX,GTV,SE,SR

 1
72619 - COVER, REAR SEAT BACK LOCK STRIKER
72615-1203001

AE8#..2D..(APX,SE)

BLACK,BLACK,TRIM2#

 2
72615-1203004

AE8#..APX,GTV,SE,SR

BLUE,BLUE,TRIM8#

 2
72615-1203002

AE8#..APX,GTV,SE,SR

DEEP MAROON,RED/MAROON,TRIM3#

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1201002

AE8#..APX,GTV,SE,SR

DEEP MAROON,RED/MAROON,TRIM3#

 2
72646-1201004

AE8#..APX,GTV,SE,SR

BLUE,BLUE,TRIM8#

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1201002

AE8#..APX,GTV,SE,SR

DEEP MAROON,RED/MAROON,TRIM3#

 2
72646-1201004

AE8#..APX,GTV,SE,SR

BLUE,BLUE,TRIM8#

 2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72661-1201002

AE8#..APX,GTV,SE,SR

DEEP MAROON,RED/MAROON,TRIM3#

 2
72656-2001022

AE8#..APX,GTV,SE,SR

DEEP MAROON,RED/MAROON,TRIM3#

 2
72661-1201004

AE8#..APX,GTV,SE,SR

BLUE,BLUE,TRIM8#

 2
72656-2001014

AE8#..APX,GTV,SE,SR

BLUE,BLUE,TRIM8#

 2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72661-1201002

AE8#..APX,GTV,SE,SR

DEEP MAROON,RED/MAROON,TRIM3#

 2
72656-2001022

AE8#..APX,GTV,SE,SR

DEEP MAROON,RED/MAROON,TRIM3#

 2
72661-1201004

AE8#..APX,GTV,SE,SR

BLUE,BLUE,TRIM8#

 2
72656-2001014

AE8#..APX,GTV,SE,SR

BLUE,BLUE,TRIM8#

 2
72665 - COVER, REAR SEAT BACK LOCK, RH
72665-1202004

AE8#..GTV,SE,SR

BLUE,BLUE,TRIM8#

 1
72665-1202002

AE8#..GTV,SE,SR

DEEP MAROON,RED/MAROON,TRIM3#

 1
72666 - COVER, REAR SEAT BACK LOCK, LH
72666-1201004

AE8#..GTV,SE,SR

BLUE,BLUE,TRIM8#

 1
72666-1201002

AE8#..GTV,SE,SR

DEEP MAROON,RED/MAROON,TRIM3#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12010

AE8#

 2
Common parts
90119-06029
90119-06207
91511-60816
91521-60814
91665-60825
93560-54012
