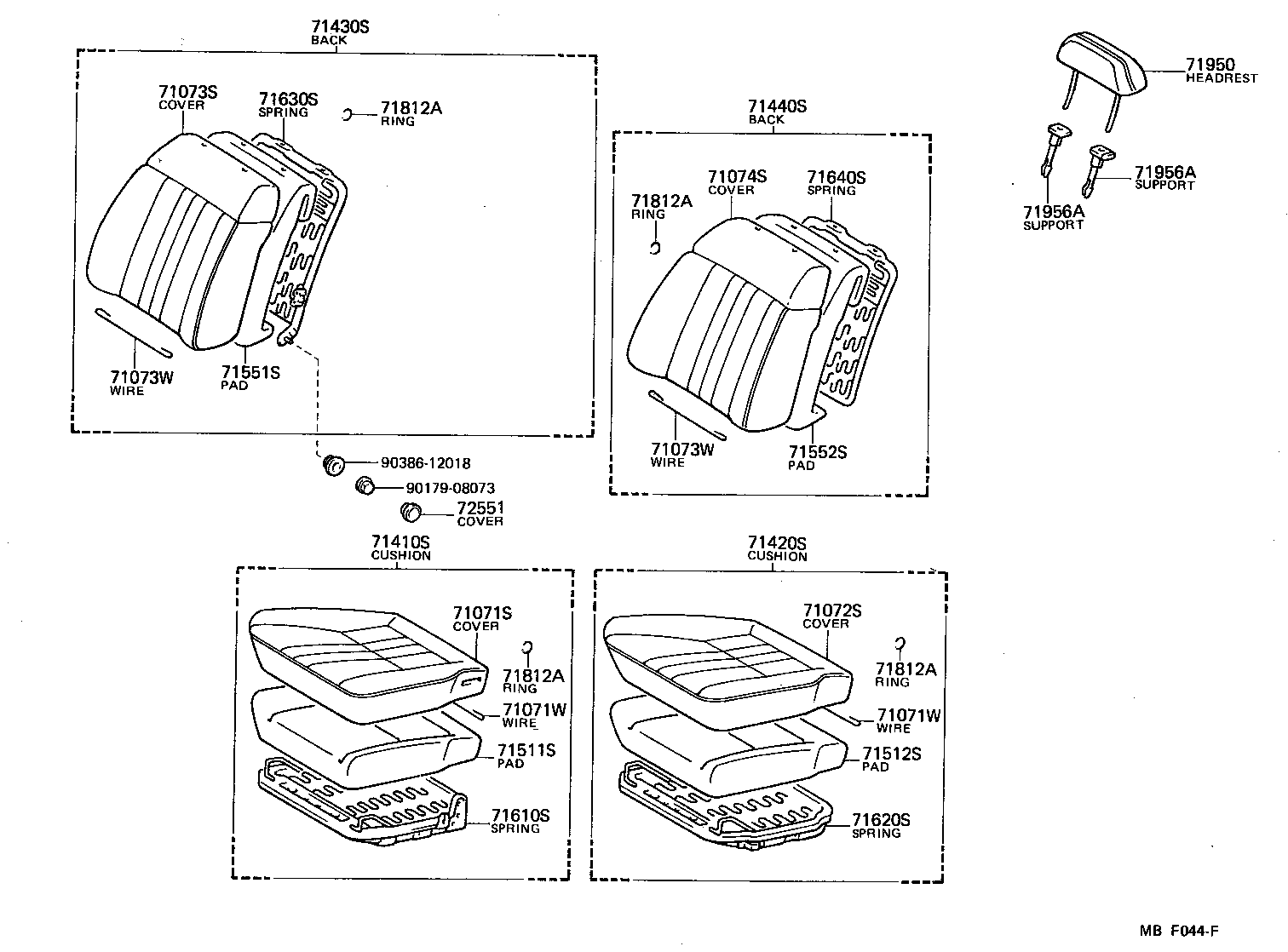

AE85-FSPES (1983)
Toyota Sprinter Trueno
(8305- )GT,SE,SR,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1A80002 |
AE8#..GT,SE,SR FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1A80004 |
AE8#..GT,SE,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E48002 |
AE8#..GT,SE FB,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71071-1E85003 |
AE8#..GT,SE FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-1E48004 |
AE8#..GT,SE FB,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20019 |
AE8# L=260 |
2 | ||
| 90580-20103 |
AE8# L=1150 |
2 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20019 |
AE8# L=260 |
2 | ||
| 90580-20103 |
AE8# L=1150 |
2 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1E13004 |
AE8#..GT,SE FB,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71072-1E13002 |
AE8#..GT,SE FB,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71072-1A79002 |
AE8#..GT,SE,SR FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71072-1A79004 |
AE8#..GT,SE,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1E27003 |
AE8#..GT,SE FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1E24004 |
AE85..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1E24002 |
AE85..SE FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71073-1E24104 |
AE8#..GT,SE FB,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71073-1H05003 |
AE8#..GT,SE FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1E24102 |
AE8#..GT,SE FB,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20020 |
AE8#..GT,SE,SR,XL L=420 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20020 |
AE8#..GT,SE,SR,XL L=420 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1A26002 |
AE85..SE FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71074-1A26004 |
AE85..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1A26104 |
AE8#..GT,SE FB,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71074-1A89003 |
AE8#..GT,SE FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71074-1A26102 |
AE8#..GT,SE FB,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1E12004 |
AE8#..GT,SE,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1H25003 |
AE8#..GT,SE FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71410-1E12002 |
AE8#..GT,SE,SR FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-1H05002 |
AE8#..GT,SE FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-1H05004 |
AE8#..GT,SE FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1E40004 |
AE8#..GT,SE FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1E40002 |
AE8#..GT,SE FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71420-1E08002 |
AE8#..GT,SE,SR FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71420-1E08004 |
AE8#..GT,SE,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1E46003 |
AE8#..GT,SE FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1E38004 |
AE85..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1E38104 |
AE8#..GT,SE FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1E38002 |
AE85..SE FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71430-1E38102 |
AE8#..GT,SE FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-1H32003 |
AE8#..GT,SE FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1E32002 |
AE85..SE FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71440-1E32104 |
AE8#..GT,SE FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1E32004 |
AE85..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1E32102 |
AE8#..GT,SE FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71440-1H25003 |
AE8#..GT,SE FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-14140 |
AE8#..GT,SE,SR,XL |
1 | ||
| 71511-12540 |
AE8# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12540 |
AE8# |
1 | ||
| 71511-14140 |
AE8#..GT,SE,SR,XL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12510 |
AE8#..GT,SE,SR,XL |
1 | ||
| 71551-12410 |
AE8#..GT,SE,SR,XL |
1 | ||
| 71551-12390 |
AE8#..GT,SE,SR,XL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12410 |
AE8#..GT,SE,SR,XL |
1 | ||
| 71551-12390 |
AE8#..GT,SE,SR,XL |
1 | ||
| 71551-12510 |
AE8#..GT,SE,SR,XL |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12160 |
AE8#..GT,SE,SR,XL W/O *VA |
1 | ||
| 71610-12161 |
AE8#..GT,GTV,SE,SR,XL W/O *VA |
1 | ||
| 71610-12201 |
AE8#..GT,GTV,SE,SR,XL W/O *VA |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12141 |
AE8#..GT,SE,SR,XL |
1 | ||
| 71620-12181 |
AE8# |
1 | ||
| 71620-12141 |
AE8# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12290 |
AE8#..GT,SE,SR,XL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-12220 |
AE8#..GT,SE,SR,XL |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1230004 |
AE8#..GT,SE BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1230104 |
AE8#..GT,SE BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1230002 |
AE8#..GT,SE DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 71910-1260001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1230102 |
AE8#..GT,SE ROSE BEIGE,RED/MAROON,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
AE85 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
AE85 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
AE85 ﾛｯｸ無,W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006001 |
AE8#..GT,SE,SR,XL ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
AE8#..GT,SE,SR,XL ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006002 |
AE85 ﾛｯｸ付,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
AE85 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
AE85 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
AE85 ﾛｯｸ無,W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006001 |
AE8#..GT,SE,SR,XL ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
AE8#..GT,SE,SR,XL ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006002 |
AE85 ﾛｯｸ付,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 72551 - COVER, RECLINING HINGE, NO.1 | ||||
| 72551-12070 |
AE8# |
2 | ||
| Common parts | ||||
| 90179-08073 | ||||
| 90386-12018 | ||||

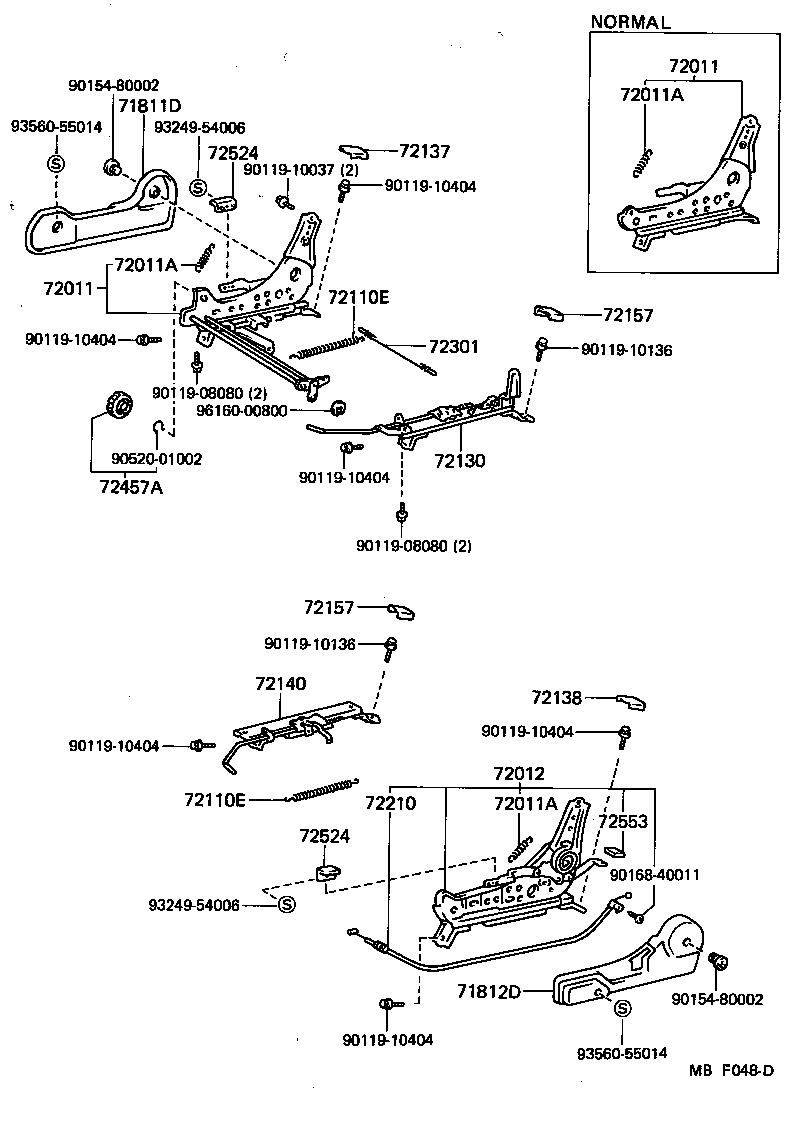

(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1212002 |
AE8#..GT,GTV,SE,SR,XL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-1212004 |
AE8#..GT,GTV,SE,SR,XL BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1212001 |
AE8#..GT,GTV,SE,SR,XL BLACK,BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1208001 |
AE8# BLACK,BLACK,TRIM2# |
1 | ||
| 71812-1208002 |
AE8# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-1208004 |
AE8# BLUE,BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12380 |
AE8#..GT,SE,SR,XL |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12380 |
AE8#..GT,SE,SR,XL |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AE8# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AE8# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AE8# |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12400 |
AE8#..GT,SE,SR,XL |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18020 |
AE8# |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18020 |
AE8# |
2 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12330 |
AE8#..GT,GTV,SE,SR,XL W/O *VA |
1 | ||
| 72130-12410 |
AE8#..GT,GTV,SE,SR,XL W/O *VA |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3201002 |
AE8# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3201004 |
AE8# BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3201001 |
AE8# BLACK,BLACK,TRIM2# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-3201002 |
AE8# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3201004 |
AE8# BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3201001 |
AE8# BLACK,BLACK,TRIM2# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-12390 |
AE8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1201002 |
AE8# RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72158-1201002 |
AE8# LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72158-1201004 |
AE8# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-1201001 |
AE8# LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72157-1201001 |
AE8# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72157-1201004 |
AE8# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1201002 |
AE8# RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72158-1201002 |
AE8# LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72158-1201004 |
AE8# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-1201001 |
AE8# LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72157-1201001 |
AE8# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72157-1201004 |
AE8# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-14100 |
AE8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1203002 |
AE8# LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1209002 |
AE8# RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1209001 |
AE8# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1203004 |
AE8# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1209004 |
AE8# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1203001 |
AE8# LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1203002 |
AE8# LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1209002 |
AE8# RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1209001 |
AE8# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1203004 |
AE8# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1209004 |
AE8# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1203001 |
AE8# LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
AE8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10037 | ||||
| 90119-10136 | ||||
| 90119-10404 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
| 93560-55014 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
