AE85-FSPES (1983)
Toyota Sprinter Trueno
Production
May 1983
-
Apr 1987
Engine
3AU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

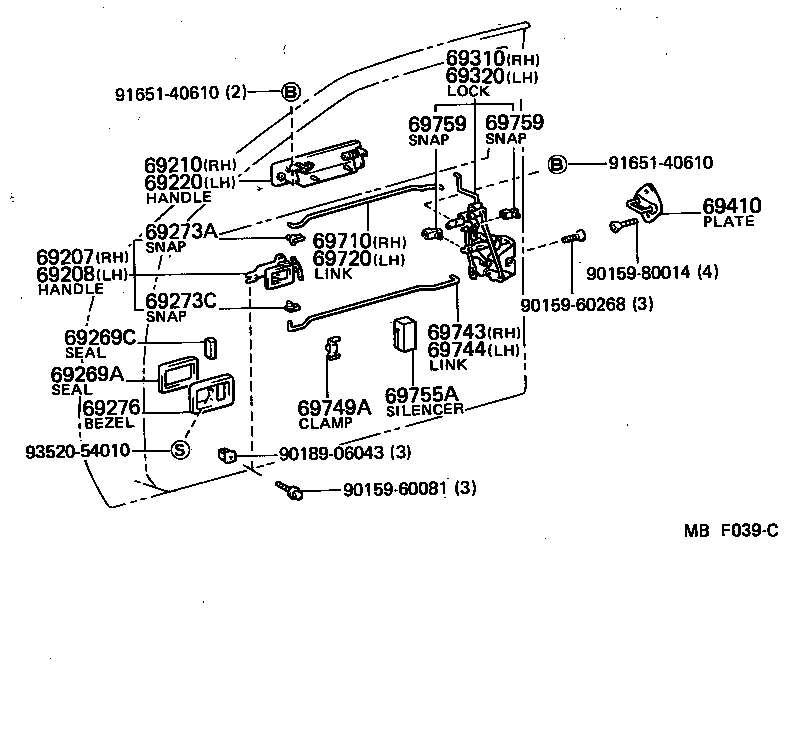

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-1208001 |
AE8# BLACK,BLACK,TRIM2# |
1 | ||
| 69205-1208002 |
AE8# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 69205-1208004 |
AE8# BLUE,BLUE,TRIM8# |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-1208004 |
AE8# BLUE,BLUE,TRIM8# |
1 | ||
| 69206-1208001 |
AE8# BLACK,BLACK,TRIM2# |
1 | ||
| 69206-1208002 |
AE8# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12080 |
AE8# |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-12080 |
AE8# |
1 | ||
| 69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR) | ||||
| 69269-14010 |
AE8# |
2 | ||
| 69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR) | ||||
| 69289-12010 |
AE8# |
2 | ||
| 69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR) | ||||
| 69759-20020 |
AE8# RH |
1 | ||
| 69759-20030 |
AE8# LH |
1 | ||
| 69273C - SNAP, DOOR INSIDE HANDLE LINK | ||||
| 69759-20060 |
AE8# LH |
1 | ||
| 69759-20070 |
AE8# RH |
1 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-1403004 |
AE8# BLUE,BLUE,TRIM8# |
2 | ||
| 69277-1403022 |
AE8# DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 69277-1403001 |
AE8# BLACK,BLACK,TRIM2# |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12170 |
AE8# |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12190 |
AE8# |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-12050 |
AE8# |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-12080 |
AE8# |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-12090 |
AE8# |
1 | ||
| 69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH | ||||
| 69733-12050 |
AE8# |
1 | ||
| 69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH | ||||
| 69734-12050 |
AE8# |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-12040 |
AE8# |
2 | ||
| 69755A - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-14010 |
AE8# |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
AE8# RH,LOCKING LINK;LH,OPEN LINK |
1 | ||
| 69759-20090 |
AE8# RH,OPEN LINK;LH,LOCKING LINK |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
AE8# RH,LOCKING LINK;LH,OPEN LINK |
1 | ||
| 69759-20090 |
AE8# RH,OPEN LINK;LH,LOCKING LINK |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60268 | ||||
| 90159-80014 | ||||
| 90189-06043 | ||||
| 91651-40610 | ||||
| 93520-54010 | ||||
