AE85-FSPES (1983)
Toyota Sprinter Trueno
ILLUST NO. 1 OF 2(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-12740 |
AE8# |
1 | ||
| 67001-12750 |
AE8# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
AE8# |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-12720 |
AE8# |
1 | ||
| 67002-12730 |
AE8# |
1 | ||
| 67047 - BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, RH | ||||
| 67047-12020 |
AE8# |
1 | ||
| 67047-12010 |
AE8# |
1 | ||
| 67048 - BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, LH | ||||
| 67048-12020 |
AE8# |
1 | ||
| 67048-12010 |
AE8# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12360 |
AE8# |
1 | ||
| 67111-12370 |
AE8# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12360 |
AE8# |
1 | ||
| 67112-12350 |
AE8# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12181 |
AE8# |
1 | ||
| 67401-12180 |
AE8# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12171 |
AE8# |
1 | ||
| 67402-12170 |
AE8# |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12041 |
AE8# PLANT.M21-M22 |
1 | ||
| 67403-12040 |
AE8# PLANT.M21-M22 |
1 | ||
| 67403-12071 |
AE8# PLANT.A51-A54 |
1 | ||
| 67403-12040 |
AE8# |
1 | ||
| 67403-12070 |
AE8# PLANT.A51-A54 |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12071 |
AE8# PLANT.A51-A54 |
1 | ||
| 67404-12040 |
AE8# |
1 | ||
| 67404-12040 |
AE8# PLANT.M21-M22 |
1 | ||
| 67404-12070 |
AE8# PLANT.A51-A54 |
1 | ||
| 67404-12041 |
AE8# PLANT.M21-M22 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12080 |
AE85..2D W/HOLE |
1 | ||
| 67491-12070 |
AE8# W/O HOLE |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12080 |
AE85..2D W/HOLE |
1 | ||
| 67492-12070 |
AE8# W/O HOLE |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67496-12090 |
AE8# LH |
1 | ||
| 67495-12040 |
AE8# RH |
1 | ||
| 67495-12090 |
AE8# RH |
1 | ||
| 67496-12040 |
AE8# LH |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-30010 |
AE8# |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1210004 |
AE8#..GT,SE BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1261002 |
AE8#..GT,SE COLD SPEC,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1210002 |
AE8#..GT,SE DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1210102 |
AE8#..GT,SE ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67650-1261102 |
AE8#..GT,SE COLD SPEC,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67650-1261004 |
AE8#..GT,SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1210104 |
AE8#..GT,SE LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1A62001 |
AE8#..GT,SE COLD SPEC,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1A61001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67650-1261104 |
AE8#..GT,SE COLD SPEC,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1A62001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
AE8# |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A07002 |
AE8#..GT,SE DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A07004 |
AE8#..GT,SE BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40004 |
AE8#..GT,SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40002 |
AE8#..GT,SE COLD SPEC,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A44004 |
AE8#..GT,SE LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40104 |
AE8#..GT,SE COLD SPEC,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A44002 |
AE8#..GT,SE ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A40102 |
AE8#..GT,SE COLD SPEC,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67620-1E12001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1E11001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1E12001 |
AE8#..GT,SE COLD SPEC,BLACK,BLACK,TRIM2# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12250 |
AE8# |
1 | ||
| 67831-12260 |
AE8# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12130 |
AE8# |
1 | ||
| 67832-12120 |
AE8# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12470 |
AE8# |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AE8# |
16 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67861-12470 |
AE8# |
1 | ||
| 67865 - WEATHERSTRIP, FRONT DOOR, LOWER RH | ||||
| 67853-12010 |
AE8# |
1 | ||
| 67866 - WEATHERSTRIP, FRONT DOOR LOWER, LH | ||||
| 67853-12010 |
AE8# |
1 | ||
| 68041 - RUN SUB-ASSY, FRONT DOOR GLASS | ||||
| 68151-12020 |
AE8# LH |
1 | ||
| 68141-12170 |
AE8# RH |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-12440 |
AE8# *TT,厚さ=4.0,*TT,T=4.0 |
1 | ||
| 68111-12440 |
AE8#..GT,GTV,SE,SR,XL *TT,厚さ=4.0,*TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-12440 |
AE8#..GT,GTV,SE,SR,XL *TT,厚さ=4.0,*TT,T=4.0 |
1 | ||
| 68112-12440 |
AE8# *TT,厚さ=4.0,*TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-12070 |
AE8# FR |
2 | ||
| 68143-12061 |
AE8# RR |
2 | ||
| 68143-12060 |
AE8# RR |
2 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-12070 |
AE8# FR |
2 | ||
| 68143-12061 |
AE8# RR |
2 | ||
| 68143-12060 |
AE8# RR |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12040 |
AE8# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-30010 |
AE8# |
2 | ||
| 68617-90A00 |
AE8# |
2 | ||
| 68621 - SEAL, DOOR CHECK | ||||
| 68621-12010 |
AE8# |
2 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90159-50111 | ||||
| 90179-06070 | ||||
| 90333-35003 | ||||
| 90950-01401 | ||||
| 91651-40612 | ||||
| 93568-14514 | ||||
| Linked diagrams | ||||
| 7104 | ||||

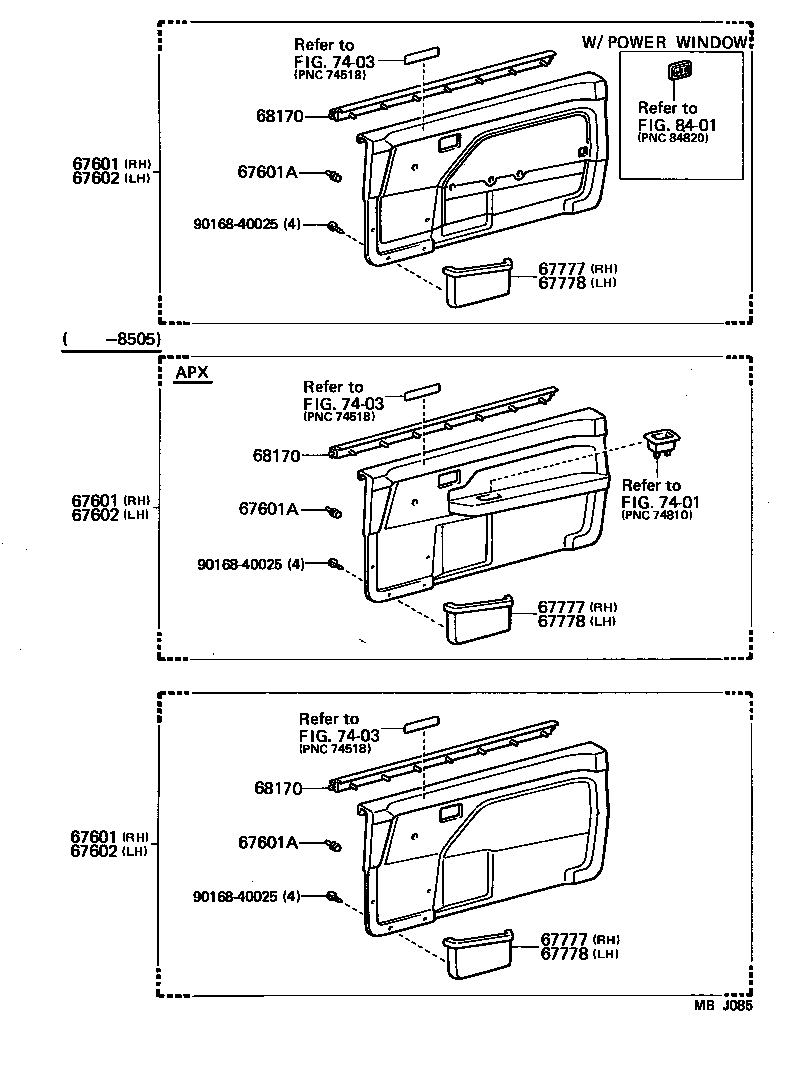

ILLUST NO. 2 OF 2(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1210004 |
AE8#..GT,SE BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1261002 |
AE8#..GT,SE COLD SPEC,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1210002 |
AE8#..GT,SE DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1210102 |
AE8#..GT,SE ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67650-1261102 |
AE8#..GT,SE COLD SPEC,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67650-1261004 |
AE8#..GT,SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1210104 |
AE8#..GT,SE LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1A62001 |
AE8#..GT,SE COLD SPEC,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1A61001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67650-1261104 |
AE8#..GT,SE COLD SPEC,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1A62001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1210004 |
AE8#..GT,SE BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1261002 |
AE8#..GT,SE COLD SPEC,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1210002 |
AE8#..GT,SE DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1210102 |
AE8#..GT,SE ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67650-1261102 |
AE8#..GT,SE COLD SPEC,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67650-1261004 |
AE8#..GT,SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1210104 |
AE8#..GT,SE LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1A62001 |
AE8#..GT,SE COLD SPEC,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1A61001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67650-1261104 |
AE8#..GT,SE COLD SPEC,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1A62001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1210004 |
AE8#..GT,SE BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1261002 |
AE8#..GT,SE COLD SPEC,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1210002 |
AE8#..GT,SE DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1210102 |
AE8#..GT,SE ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67650-1261102 |
AE8#..GT,SE COLD SPEC,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67650-1261004 |
AE8#..GT,SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1210104 |
AE8#..GT,SE LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1A62001 |
AE8#..GT,SE COLD SPEC,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1A61001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67650-1261104 |
AE8#..GT,SE COLD SPEC,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1A62001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
AE8# |
20 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
AE8# |
20 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
AE8# |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A07002 |
AE8#..GT,SE DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A07004 |
AE8#..GT,SE BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40004 |
AE8#..GT,SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40002 |
AE8#..GT,SE COLD SPEC,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A44004 |
AE8#..GT,SE LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40104 |
AE8#..GT,SE COLD SPEC,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A44002 |
AE8#..GT,SE ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A40102 |
AE8#..GT,SE COLD SPEC,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67620-1E12001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1E11001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1E12001 |
AE8#..GT,SE COLD SPEC,BLACK,BLACK,TRIM2# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A07002 |
AE8#..GT,SE DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A07004 |
AE8#..GT,SE BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40004 |
AE8#..GT,SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40002 |
AE8#..GT,SE COLD SPEC,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A44004 |
AE8#..GT,SE LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40104 |
AE8#..GT,SE COLD SPEC,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A44002 |
AE8#..GT,SE ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A40102 |
AE8#..GT,SE COLD SPEC,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67620-1E12001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1E11001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1E12001 |
AE8#..GT,SE COLD SPEC,BLACK,BLACK,TRIM2# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A07002 |
AE8#..GT,SE DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A07004 |
AE8#..GT,SE BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40004 |
AE8#..GT,SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40002 |
AE8#..GT,SE COLD SPEC,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A44004 |
AE8#..GT,SE LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A40104 |
AE8#..GT,SE COLD SPEC,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A44002 |
AE8#..GT,SE ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A40102 |
AE8#..GT,SE COLD SPEC,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 67620-1E12001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1E11001 |
AE8#..GT,SE BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1E12001 |
AE8#..GT,SE COLD SPEC,BLACK,BLACK,TRIM2# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1201001 |
AE8#..GT,GTV,SE,SR,XL BLACK,BLACK,TRIM2# |
1 | ||
| 67777-1201002 |
AE8#..APX,GT,SE,XL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67777-1201004 |
AE8#..APX,GT,SE,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1201001 |
AE8#..GT,GTV,SE,SR,XL BLACK,BLACK,TRIM2# |
1 | ||
| 67777-1201002 |
AE8#..APX,GT,SE,XL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67777-1201004 |
AE8#..APX,GT,SE,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1201001 |
AE8#..GT,GTV,SE,SR,XL BLACK,BLACK,TRIM2# |
1 | ||
| 67777-1201002 |
AE8#..APX,GT,SE,XL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67777-1201004 |
AE8#..APX,GT,SE,XL BLUE,BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12230 |
AE8# RH |
1 | ||
| 68220-12160 |
AE8# LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-12160 |
AE8# LH |
1 | ||
| 68170-12230 |
AE8# RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-12160 |
AE8# LH |
1 | ||
| 68170-12230 |
AE8# RH |
1 | ||
| Common parts | ||||
| 90168-40025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 7403 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
