AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2D

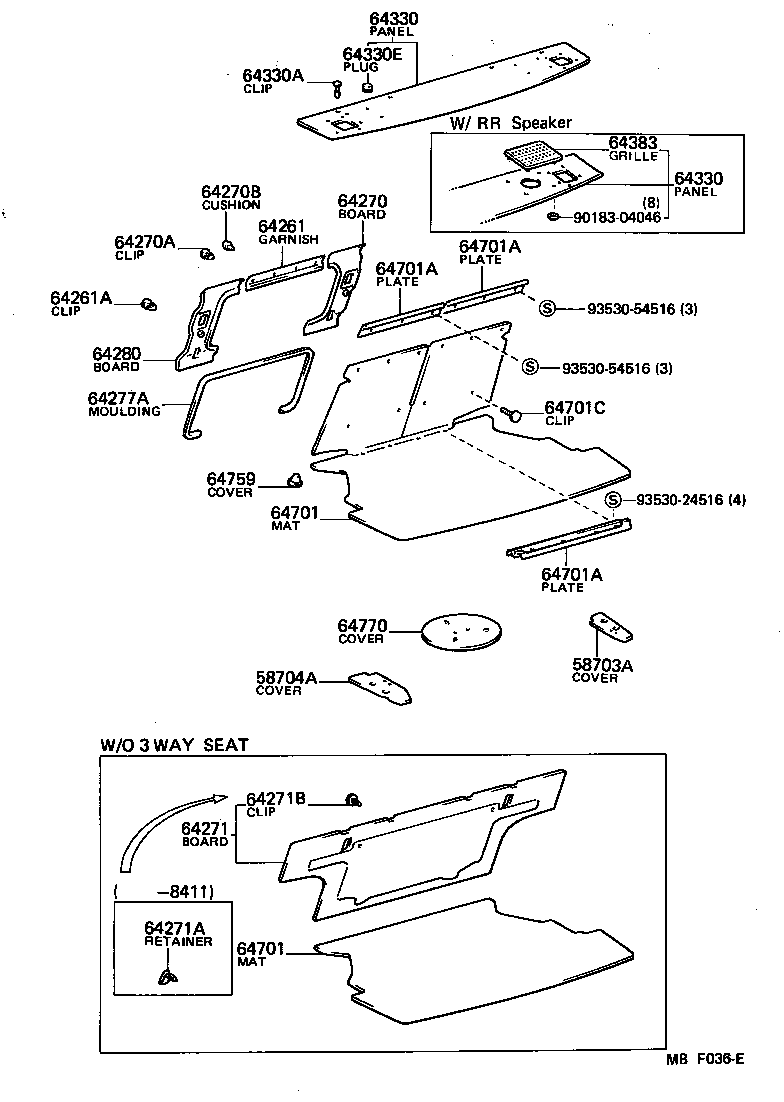

Click highlighted areas on diagram

diagram 58703A 58704A 64261 64261A 64270 64270A 64270B 64271 64271A 64271B 64277A 64280 64330 64330 64330A 64330E 64383 64701 64701 64701A 64701A 64701A 64701C 64759 64770 9018304046 9353024516 9353054516 9353054516
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-12010

AE8#..2D..(APX,SE)

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-12010

AE8#..2D..(APX,SE)

 1
58704-12011

AE8#..2D

 1
64261 - GARNISH, ROOM PARTITION
64261-1202004

AE8#..2D..(APX,SE)

BLUE,BLUE,TRIM8#

 1
64261-1202002

AE8#..2D..(APX,SE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
64261A - CLIP(FOR ROOM PARTITION GARNISH)
90467-0601714

AE8#..2D..(APX,SE)

BLUE,BLUE,TRIM8#

 2
90467-0601712

AE8#..2D..(APX,SE)

DEEP MAROON,RED/MAROON,TRIM3#

 2
90467-06046

AE8#..2D..(APX,SE)

 2
64270 - BOARD ASSY, ROOM PARTITION, RH
64271-1208002

AE85..SE

DEEP MAROON,RED/MAROON,TRIM3#

 1
64271-1208004

AE85..SE

BLUE,BLUE,TRIM8#

 1
64270A - CLIP(FOR ROOM PARTITION BOARD SETTING)
90467-06046

AE8#..2D..(APX,SE)

 2
90467-0601714

AE8#..2D..(APX,SE)

BLUE,BLUE,TRIM8#

 2
90467-0601712

AE8#..2D..(APX,SE)

DEEP MAROON,RED/MAROON,TRIM3#

 2
64270B - CUSHION(FOR ROOM PARTITION BOARD)
90541-09010

AE8#..2D..(APX,SE)

 2
64271 - BOARD, ROOM PARTITION, NO.1
64270-12030

AE8#..GT,SE,XL

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-0601601

AE8#..GT,SE,XL

BLACK,BLACK,TRIM2#

 2
64277A - MOULDING, ROOM PARTITION TRIM
64277-1202002

AE8#..2D..(APX,SE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
64277-1202004

AE8#..2D..(APX,SE)

BLUE,BLUE,TRIM8#

 1
64280 - BOARD ASSY, ROOM PARTITION, LH
64272-1202002

AE85..SE

DEEP MAROON,RED/MAROON,TRIM3#

 1
64272-1202004

AE85..SE

BLUE,BLUE,TRIM8#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-1247002

AE8#..2D..(APX,SE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
64330-1248004

AE8#..2D

W/RR SPEAKER,BLUE,BLUE,TRIM8#

 1
64330-1248002

AE8#..2D

W/RR SPEAKER,DEEP MAROON,RED/MAROON,TRIM3#

 1
64330-1247001

AE8#..2D..(APX,SE)

BLACK,BLACK,TRIM2#

 1
64330-1247004

AE8#..2D..(APX,SE)

BLUE,BLUE,TRIM8#

 1
64330-1248001

AE8#..2D

W/RR SPEAKER,BLACK,BLACK,TRIM2#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-1247002

AE8#..2D..(APX,SE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
64330-1248004

AE8#..2D

W/RR SPEAKER,BLUE,BLUE,TRIM8#

 1
64330-1248002

AE8#..2D

W/RR SPEAKER,DEEP MAROON,RED/MAROON,TRIM3#

 1
64330-1247001

AE8#..2D..(APX,SE)

BLACK,BLACK,TRIM2#

 1
64330-1247004

AE8#..2D..(APX,SE)

BLUE,BLUE,TRIM8#

 1
64330-1248001

AE8#..2D

W/RR SPEAKER,BLACK,BLACK,TRIM2#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0914414

AE8#..2D

BLUE,BLUE,TRIM8#

 4
90467-0804604

AE8#..2D

BLUE,BLUE,TRIM8#

 4
90467-0804602

AE8#..2D

DEEP MAROON,RED/MAROON,TRIM3#

 4
90467-0804601

AE8#..2D

BLACK,BLACK,TRIM2#

 4
90467-0914412

AE8#..2D

DEEP MAROON,RED/MAROON,TRIM3#

 4
64383 - GRILLE, SPEAKER, REAR
64383-1202002

AE8#..2D

DEEP MAROON,RED/MAROON,TRIM3#

 2
64383-1202004

AE8#..2D

BLUE,BLUE,TRIM8#

 2
64383-1202001

AE8#..2D

BLACK,BLACK,TRIM2#

 2
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64701-12060

AE8#..GT,SE,XL

 1
64701-1207002

AE8#..2D..(APX,SE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
64701-1207004

AE8#..2D..(APX,SE)

BLUE,BLUE,TRIM8#

 1
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64701-12060

AE8#..GT,SE,XL

 1
64701-1207002

AE8#..2D..(APX,SE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
64701-1207004

AE8#..2D..(APX,SE)

BLUE,BLUE,TRIM8#

 1
64701A - SET PLATE, LUGGAGE COMPARTMENT
58573-12040

AE8#..2D..(APX,SE)

L=632

 1
58573-1203002

AE8#..2D..(APX,SE)

L=440,DEEP MAROON,RED/MAROON,TRIM3#

 2
58573-1203004

AE8#..2D..(APX,SE)

L=440,BLUE,BLUE,TRIM8#

 2
64701A - SET PLATE, LUGGAGE COMPARTMENT
58573-12040

AE8#..2D..(APX,SE)

L=632

 1
58573-1203002

AE8#..2D..(APX,SE)

L=440,DEEP MAROON,RED/MAROON,TRIM3#

 2
58573-1203004

AE8#..2D..(APX,SE)

L=440,BLUE,BLUE,TRIM8#

 2
64701A - SET PLATE, LUGGAGE COMPARTMENT
58573-12040

AE8#..2D..(APX,SE)

L=632

 1
58573-1203002

AE8#..2D..(APX,SE)

L=440,DEEP MAROON,RED/MAROON,TRIM3#

 2
58573-1203004

AE8#..2D..(APX,SE)

L=440,BLUE,BLUE,TRIM8#

 2
64701C - CLIP(FOR LUGGAGE COMPARTMENT MAT)
90467-0601604

AE8#..2D..(APX,SE)

BLUE,BLUE,TRIM8#

 4
90467-0601622

AE8#..2D..(APX,SE)

DEEP MAROON,RED/MAROON,TRIM3#

 4
64759 - COVER, SHOCK ABSORBER HEAD
58731-2202003

AE8#..2D

GRAY,GRAY

 2
64770 - COVER ASSY, SPARE WHEEL
64770-12020

AE8#

W/COMPACT SPARE TIRE

 1
Common parts
90183-04046
93530-24516
93530-54516
