AE85-FSPES (1983)
Toyota Sprinter Trueno
Production
May 1983
-
Apr 1987
Engine
3AU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )2D

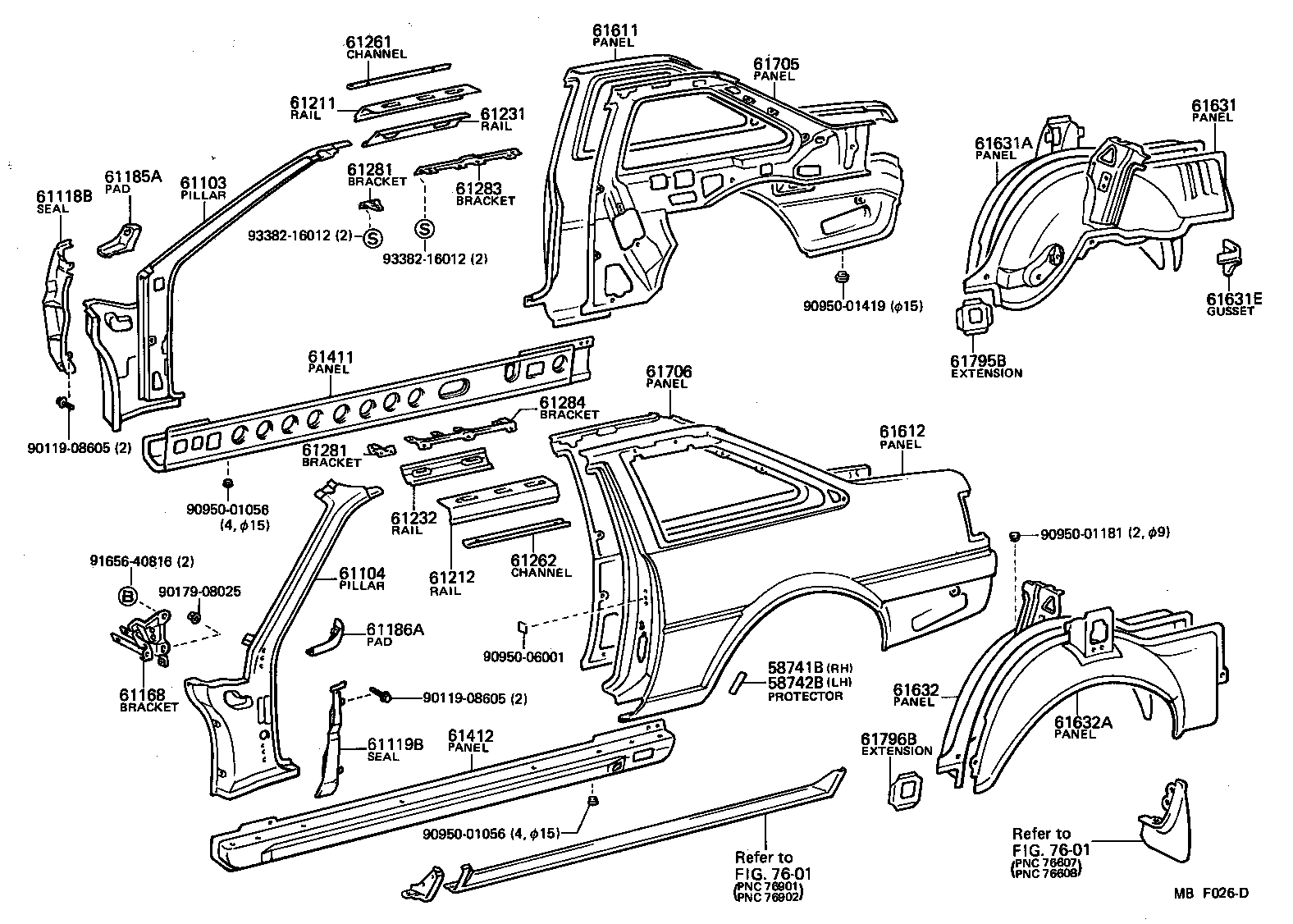

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-12010 |
AE8# |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-12010 |
AE8# |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-12570 |
AE85..2D W/*DM ELECTRONIC CONTROL TYPE |
1 | ||
| 61021-12320 |
AE8# |
1 | ||
| 61021-12561 |
AE8# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-12621 |
AE8# |
1 | ||
| 61022-12630 |
AE85..2D W/*DM ELECTRONIC CONTROL TYPE |
1 | ||
| 61022-12380 |
AE8# |
1 | ||
| 61118B - SEAL, FRONT BODY PILLAR TO FRONT FENDER, RH | ||||
| 61118-12040 |
AE8# COLD SPEC |
1 | ||
| 61119B - SEAL, FRONT BODY PILLAR TO FRONT FENDER, LH | ||||
| 61119-12040 |
AE8# COLD SPEC |
1 | ||
| 61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61036-12020 |
AE8# |
1 | ||
| 61185A - PAD, EXTENSION FRONT BODY PILLAR, OUTER RH | ||||
| 61185-12010 |
AE8# COLD SPEC |
1 | ||
| 61186A - PAD, EXTENSION FRONT BODY PILLAR, OUTER LH | ||||
| 61186-12010 |
AE8# COLD SPEC |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12180 |
AE8# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12180 |
AE8# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-12320 |
AE8# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-12220 |
AE8# |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61265-12050 |
AE8# |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61266-12050 |
AE8# |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-12010 |
AE8#..APX,GT,GTV,SE,SR |
2 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-12010 |
AE8#..APX,GT,GTV,SE,SR |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-12010 |
AE8#..APX,GT,GTV,SE,SR |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-12010 |
AE8#..APX,GT,GTV,SE,SR |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-12180 |
AE8# |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-12180 |
AE8# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1A730 |
AE8#..2D |
1 | ||
| 61601-1E340 |
AE8#..2D W/ARCH MOULDING |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1A350 |
AE8#..2D |
1 | ||
| 61602-1E070 |
AE8#..2D W/ARCH MOULDING |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61603-12908 |
AE8#..2D..(APX,SE) |
1 | ||
| 61603-12907 |
AE8#..GT,SE,XL |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-12908 |
AE8# |
1 | ||
| 61631-12907 |
AE8# |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-12080 |
AE8#..2D |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61604-12908 |
AE8#..2D..(APX,SE) |
1 | ||
| 61604-12907 |
AE8#..GT,SE,XL |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-12901 |
AE8# |
1 | ||
| 61632-12902 |
AE8# |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-12640 |
AE8#..2D |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-12700 |
AE8#..2D |
1 | ||
| 61795B - EXTENSION, QUARTER WHEEL HOUSE, RH | ||||
| 61795-12020 |
AE8# |
1 | ||
| 61796B - EXTENSION, QUARTER WHEEL HOUSE, LH | ||||
| 61796-12020 |
AE8# |
1 | ||
| Common parts | ||||
| 90119-08605 | ||||
| 90179-08025 | ||||
| 90950-01056 | ||||
| 90950-01181 | ||||
| 90950-01419 | ||||
| 90950-06001 | ||||
| 91656-40816 | ||||
| 93382-16012 | ||||
| Linked diagrams | ||||
| 7601 | ||||
