AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

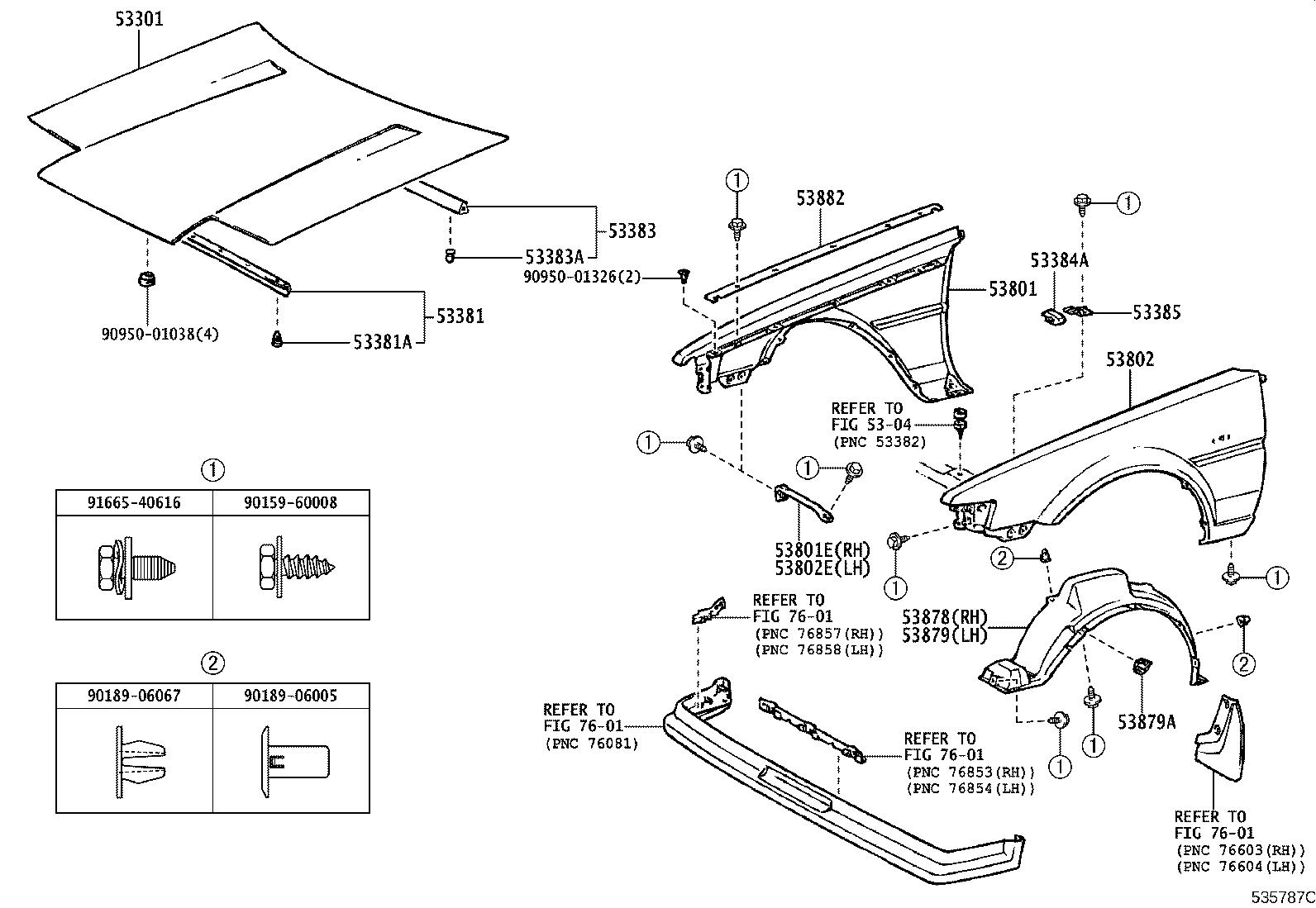

Click highlighted areas on diagram

diagram 5304 53301 53381 53381A 53383 53383A 53384A 53385 53801 53801E 53802 53802E 53878 53879 53879A 53882 7601 7601 7601 7601 9015960008 9018906005 9018906067 9095001038 9095001326 9166540616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-12390

AE8#

PLANT.A51-A54

 1
53301-12350

AE8#

 1
53301-12350

AE8#

 1
53301-12390

AE8#

 1
53301-12350

AE8#

PLANT,M21,M22

 1
53301-12392

AE8#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-12120

AE8#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AE8#

 8
53383 - SEAL, HOOD TO COWL TOP
53383-12050

AE8#

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08030

AE8#

 8
53384A - BUMPER, FENDER TO HOOD
53384-14010

AE8#

 2
53385 - RETAINER, HOOD, BUMPER
53385-14010

AE8#

LH

 1
53386-14010

AE8#

RH

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-1A690

AE86..2D;AE8#..GTV,SE,SR,XL

W/*DM

 1
53801-1A630

AE86..2D;AE8#..GTV,SE,SR,XL

W/O *DM

 1
53801E - BRACE, FRONT FENDER TO APRON, RH
53835-12030

AE8#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-1A860

AE8#

W/*DM

 1
53802-1A620

AE8#

W/O *DM

 1
53802E - BRACE, FRONT FENDER TO APRON, LH
53835-12030

AE8#

 1
53878 - LINER, FRONT FENDER, RH
53875-12060

AE8#

 1
53875-12061

AE8#

 1
53879 - LINER, FRONT FENDER, LH
53876-12061

AE8#

 1
53876-12060

AE8#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AE8#

 6
53882 - PACKING, FRONT FENDER MAIN
53882-12060

AE8#

 2
Common parts
90159-60008
90189-06005
90189-06067
90950-01038
90950-01326
91665-40616
Linked diagrams
5304
7601
