AE85-FSPES (1983)
Toyota Sprinter Trueno
Production
May 1983
-
Apr 1987
Engine
3AU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305-8505)

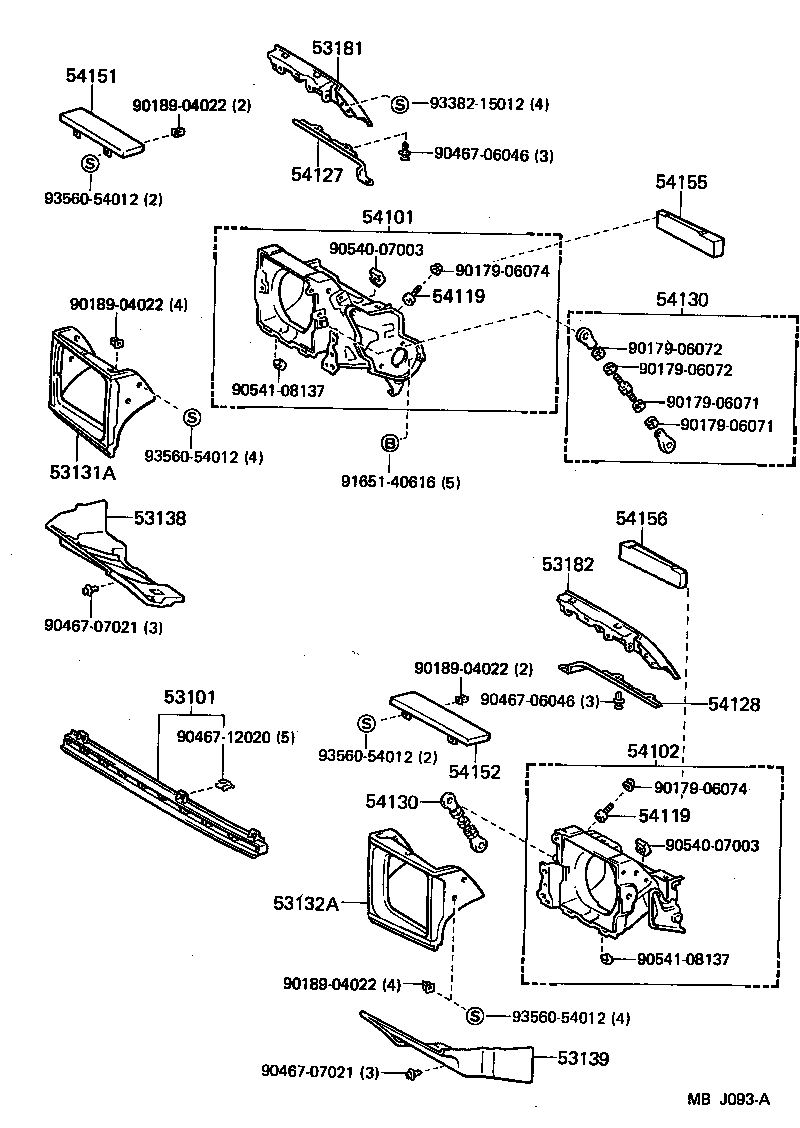

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53100-12231 |
AE8# |
1 | ||
| 53100-12230 |
AE8# |
1 | ||
| 53100-12232 |
AE8# |
1 | ||
| 53131A - DOOR, HEADLAMP, RH | ||||
| 53131-12330 |
AE8# |
1 | ||
| 53132A - DOOR, HEADLAMP, LH | ||||
| 53132-12240 |
AE8# |
1 | ||
| 53138 - PROTECTOR, HEADLAMP DOOR, RH | ||||
| 53138-12050 |
AE8# |
1 | ||
| 53138-12051 |
AE8# |
1 | ||
| 53139 - PROTECTOR, HEADLAMP DOOR, LH | ||||
| 53139-12121 |
AE8# |
1 | ||
| 53139-12120 |
AE8# |
1 | ||
| 53181 - COVER, HEADLAMP, RH | ||||
| 53181-12020 |
AE8# |
1 | ||
| 53182 - COVER, HEADLAMP, LH | ||||
| 53182-12020 |
AE8# |
1 | ||
| 54101 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, RH | ||||
| 54110-12012 |
AE8# |
1 | ||
| 54110-12010 |
AE8# |
1 | ||
| 54110-12011 |
AE8# |
1 | ||
| 54102 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, LH | ||||
| 54120-12012 |
AE8# |
1 | ||
| 54120-12010 |
AE8# |
1 | ||
| 54120-12011 |
AE8# |
1 | ||
| 54119 - STOP, RETRACTABLE HEADLAMP LINK | ||||
| 54119-14010 |
AE8# |
2 | ||
| 54119-14020 |
AE8# |
2 | ||
| 54119 - STOP, RETRACTABLE HEADLAMP LINK | ||||
| 54119-14010 |
AE8# |
2 | ||
| 54119-14020 |
AE8# |
2 | ||
| 54127 - PROTECTOR, RETRACTABLE HEADLAMP, NO.2 RH | ||||
| 54127-12010 |
AE8# |
1 | ||
| 54128 - PROTECTOR, RETRACTABLE HEADLAMP, NO.2 LH | ||||
| 54128-12010 |
AE8# |
1 | ||
| 54130 - ROD ASSY, RETRACTABLE HEADLAMP | ||||
| 54130-12010 |
AE8# |
2 | ||
| 54130 - ROD ASSY, RETRACTABLE HEADLAMP | ||||
| 54130-12010 |
AE8# |
2 | ||
| 54151 - GARNISH, RETRACTABLE HEADLAMP COVER, RH | ||||
| 54151-12010 |
AE8# |
1 | ||
| 54107-12010 |
AE8# |
1 | ||
| 54151-12011 |
AE8# |
1 | ||
| 54152 - GARNISH, RETRACTABLE HEADLAMP COVER, LH | ||||
| 54152-12011 |
AE8# |
1 | ||
| 54152-12010 |
AE8# |
1 | ||
| 54108-12010 |
AE8# |
1 | ||
| 54155 - PROTECTOR, RETRACTABLE HEADLAMP, NO.3 RH | ||||
| 54155-12020 |
AE8# |
1 | ||
| 54156 - PROTECTOR, RETRACTABLE HEADLAMP, NO.3 LH | ||||
| 54156-12020 |
AE8# |
1 | ||
| Common parts | ||||
| 90179-06071 | ||||
| 90179-06072 | ||||
| 90179-06074 | ||||
| 90189-04069 | ||||
| 90467-06046 | ||||
| 90467-07021 | ||||
| 90467-12020 | ||||
| 90540-07003 | ||||
| 90541-08137 | ||||
| 91651-40616 | ||||
| 93382-15012 | ||||
| 93560-54012 | ||||
(8505- )

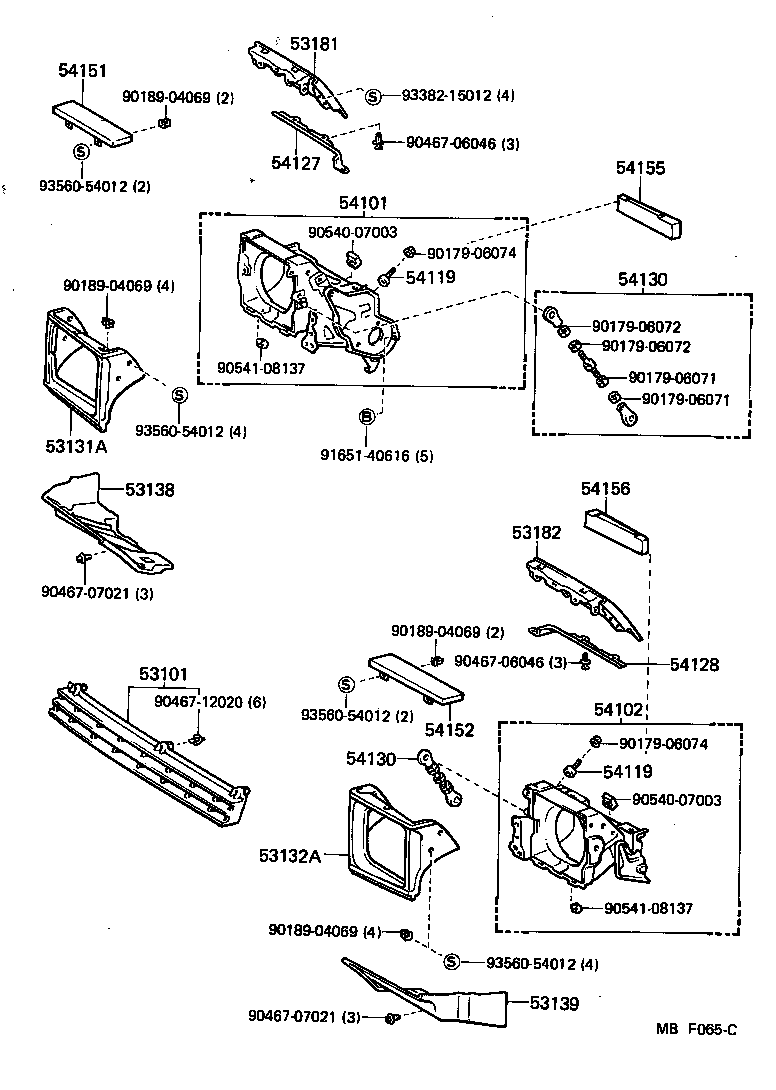

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53100-12231 |
AE8# |
1 | ||
| 53100-12230 |
AE8# |
1 | ||
| 53100-12232 |
AE8# |
1 | ||
| 53131A - DOOR, HEADLAMP, RH | ||||
| 53131-12330 |
AE8# |
1 | ||
| 53132A - DOOR, HEADLAMP, LH | ||||
| 53132-12240 |
AE8# |
1 | ||
| 53138 - PROTECTOR, HEADLAMP DOOR, RH | ||||
| 53138-12050 |
AE8# |
1 | ||
| 53138-12051 |
AE8# |
1 | ||
| 53139 - PROTECTOR, HEADLAMP DOOR, LH | ||||
| 53139-12121 |
AE8# |
1 | ||
| 53139-12120 |
AE8# |
1 | ||
| 53181 - COVER, HEADLAMP, RH | ||||
| 53181-12020 |
AE8# |
1 | ||
| 53182 - COVER, HEADLAMP, LH | ||||
| 53182-12020 |
AE8# |
1 | ||
| 54101 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, RH | ||||
| 54110-12012 |
AE8# |
1 | ||
| 54110-12010 |
AE8# |
1 | ||
| 54110-12011 |
AE8# |
1 | ||
| 54102 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, LH | ||||
| 54120-12012 |
AE8# |
1 | ||
| 54120-12010 |
AE8# |
1 | ||
| 54120-12011 |
AE8# |
1 | ||
| 54119 - STOP, RETRACTABLE HEADLAMP LINK | ||||
| 54119-14010 |
AE8# |
2 | ||
| 54119-14020 |
AE8# |
2 | ||
| 54119 - STOP, RETRACTABLE HEADLAMP LINK | ||||
| 54119-14010 |
AE8# |
2 | ||
| 54119-14020 |
AE8# |
2 | ||
| 54127 - PROTECTOR, RETRACTABLE HEADLAMP, NO.2 RH | ||||
| 54127-12010 |
AE8# |
1 | ||
| 54128 - PROTECTOR, RETRACTABLE HEADLAMP, NO.2 LH | ||||
| 54128-12010 |
AE8# |
1 | ||
| 54130 - ROD ASSY, RETRACTABLE HEADLAMP | ||||
| 54130-12010 |
AE8# |
2 | ||
| 54130 - ROD ASSY, RETRACTABLE HEADLAMP | ||||
| 54130-12010 |
AE8# |
2 | ||
| 54151 - GARNISH, RETRACTABLE HEADLAMP COVER, RH | ||||
| 54151-12010 |
AE8# |
1 | ||
| 54107-12010 |
AE8# |
1 | ||
| 54151-12011 |
AE8# |
1 | ||
| 54152 - GARNISH, RETRACTABLE HEADLAMP COVER, LH | ||||
| 54152-12011 |
AE8# |
1 | ||
| 54152-12010 |
AE8# |
1 | ||
| 54108-12010 |
AE8# |
1 | ||
| 54155 - PROTECTOR, RETRACTABLE HEADLAMP, NO.3 RH | ||||
| 54155-12020 |
AE8# |
1 | ||
| 54156 - PROTECTOR, RETRACTABLE HEADLAMP, NO.3 LH | ||||
| 54156-12020 |
AE8# |
1 | ||
| Common parts | ||||
| 90179-06071 | ||||
| 90179-06072 | ||||
| 90179-06074 | ||||
| 90189-04022 | ||||
| 90467-06046 | ||||
| 90467-07021 | ||||
| 90467-12020 | ||||
| 90540-07003 | ||||
| 90541-08137 | ||||
| 91651-40616 | ||||
| 93382-15012 | ||||
| 93560-54012 | ||||
