AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)

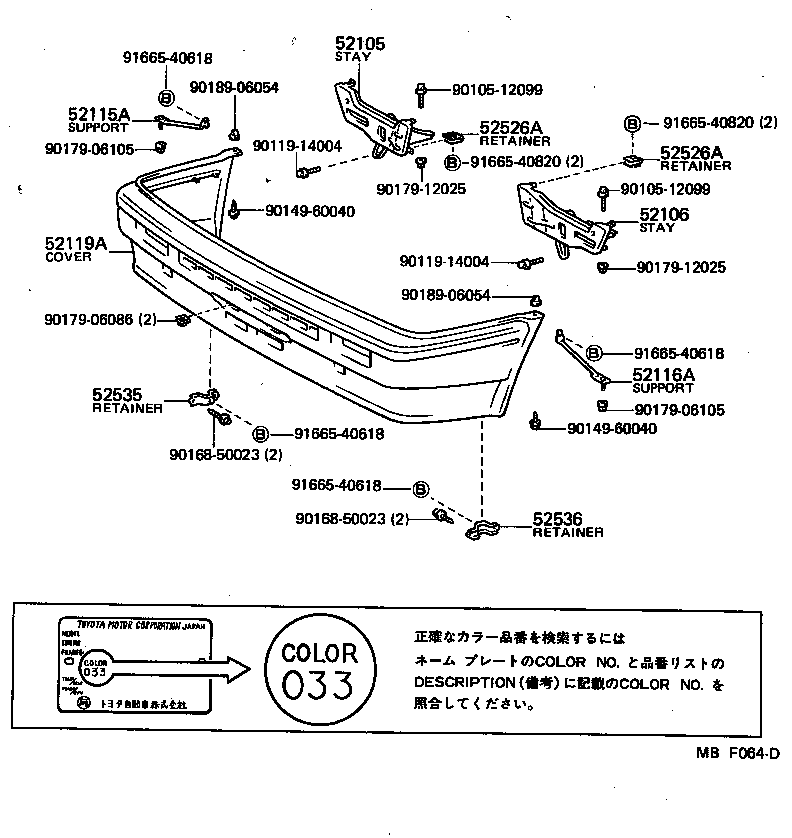

Click highlighted areas on diagram

diagram 52105 52106 52115A 52116A 52119A 52526A 52526A 52535 52536 9010512099 9010512099 9011914004 9011914004 9014960040 9014960040 9016850023 9016850023 9017906086 9017906105 9017906105 9017912025 9017912025 9018906054 9018906054 9166540618 9166540618 9166540618 9166540618 9166540820 9166540820
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-12221

AE8#

 1
52011-12230

AE8#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-12221

AE8#

 1
52012-12230

AE8#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12160

AE8#

 1
52115-12240

AE8#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-12240

AE8#

 1
52115-12160

AE8#

 1
52119A - COVER, FRONT BUMPER
52119-12140

AE8#..GT,GTV,SE,SR,XL

D-GRAY,558 ,8A9

 1
52119-12141

AE8#..GT,GTV,SE,SR,XL

BLACK,038 ,041 ,147 ,3D7 ,3E6 ,8A9

 1
52119-1215112

AE8#..APX,GT,GTV,SE,SR

RED,RED,2T6

 1
52119-1215103

AE8#..APX,GT,GTV,SE,SR

SILVER-M,SILVER METALLIC,2M8

 1
52119-1215118

AE8#..APX,GT,GTV,SE,SR

WHITE,WHITE,2T7

 1
52119-1215102

AE8#..APX,GT,GTV,SE,SR

RED,RED,2M9

 1
52119-12092

AE8#..GT,GTV,SE,SR,XL

BLACK,041 ,3E6 ,148 ,159 ,164

 1
52119-1A11003

AE8#..APX,GT,GTV,SE,SR

SILVER,MEDIUM GRAY METALLIC,2X1

 1
52119-1215108

AE8#..APX,GT,GTV,SE,SR

WHITE,WHITE,2N2

 1
52119-1212208

AE8#..APX,GT,GTV,SE,SR

WHITE,BLACK/WHITE,2T7 ,041

 1
52119-12140

AE8#..GT,GTV,SE,SR,XL

D-GRAY,038 ,147 ,151 ,3D7

 1
52119-1212202

AE8#..APX,GT,GTV,SE,SR

RED,BLACK/RED,2T6 ,3E6

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

AE8#

 8
52565-12040

AE8#

 4
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

AE8#

 8
52565-12040

AE8#

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-12010

AE8#

 1
52535-12020

AE8#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-12010

AE8#

 1
52536-12020

AE8#

 1
Common parts
90105-12099
90119-14004
90149-60040
90168-50023
90179-06086
90179-06105
90179-12025
90189-06054
91665-40618
91665-40820

(8505- )

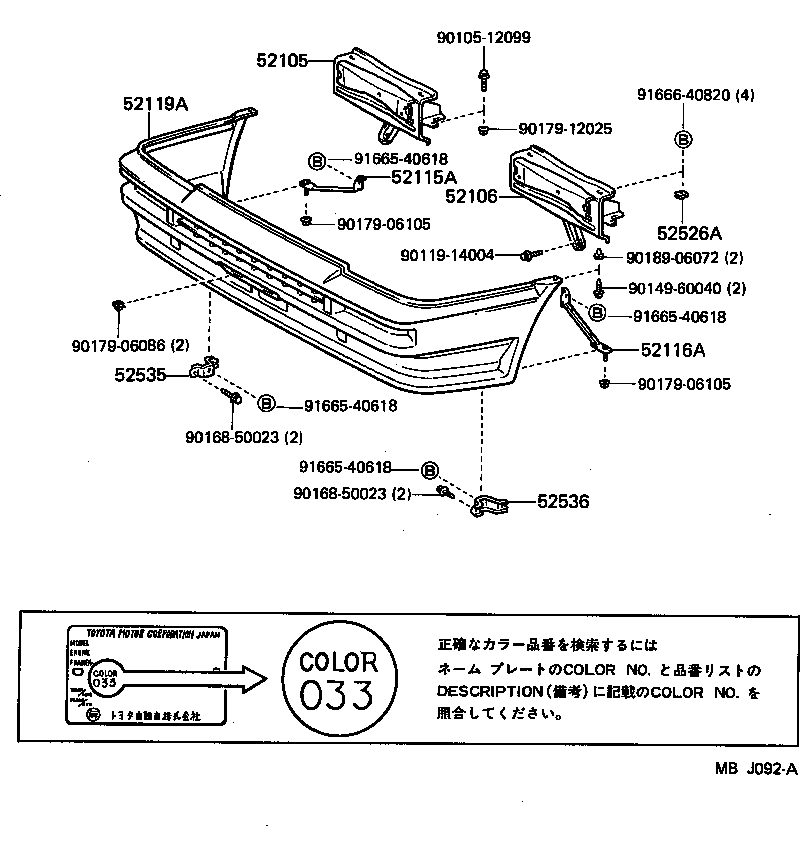

Click highlighted areas on diagram

diagram 52105 52106 52115A 52116A 52119A 52526A 52535 52536 9010512099 9011914004 9014960040 9016850023 9016850023 9017906086 9017906105 9017906105 9017912025 9018906072 9166540618 9166540618 9166540618 9166540618 9166640820
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-12221

AE8#

 1
52011-12230

AE8#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-12221

AE8#

 1
52012-12230

AE8#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12160

AE8#

 1
52115-12240

AE8#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-12240

AE8#

 1
52115-12160

AE8#

 1
52119A - COVER, FRONT BUMPER
52119-12140

AE8#..GT,GTV,SE,SR,XL

D-GRAY,558 ,8A9

 1
52119-12141

AE8#..GT,GTV,SE,SR,XL

BLACK,038 ,041 ,147 ,3D7 ,3E6 ,8A9

 1
52119-1215112

AE8#..APX,GT,GTV,SE,SR

RED,RED,2T6

 1
52119-1215103

AE8#..APX,GT,GTV,SE,SR

SILVER-M,SILVER METALLIC,2M8

 1
52119-1215118

AE8#..APX,GT,GTV,SE,SR

WHITE,WHITE,2T7

 1
52119-1215102

AE8#..APX,GT,GTV,SE,SR

RED,RED,2M9

 1
52119-12092

AE8#..GT,GTV,SE,SR,XL

BLACK,041 ,3E6 ,148 ,159 ,164

 1
52119-1A11003

AE8#..APX,GT,GTV,SE,SR

SILVER,MEDIUM GRAY METALLIC,2X1

 1
52119-1215108

AE8#..APX,GT,GTV,SE,SR

WHITE,WHITE,2N2

 1
52119-1212208

AE8#..APX,GT,GTV,SE,SR

WHITE,BLACK/WHITE,2T7 ,041

 1
52119-12140

AE8#..GT,GTV,SE,SR,XL

D-GRAY,038 ,147 ,151 ,3D7

 1
52119-1212202

AE8#..APX,GT,GTV,SE,SR

RED,BLACK/RED,2T6 ,3E6

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

AE8#

 8
52565-12040

AE8#

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-12010

AE8#

 1
52535-12020

AE8#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-12010

AE8#

 1
52536-12020

AE8#

 1
Common parts
90105-12099
90119-14004
90149-60040
90168-50023
90179-06086
90179-06105
90179-12025
90189-06072
91665-40618
91666-40820
