AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

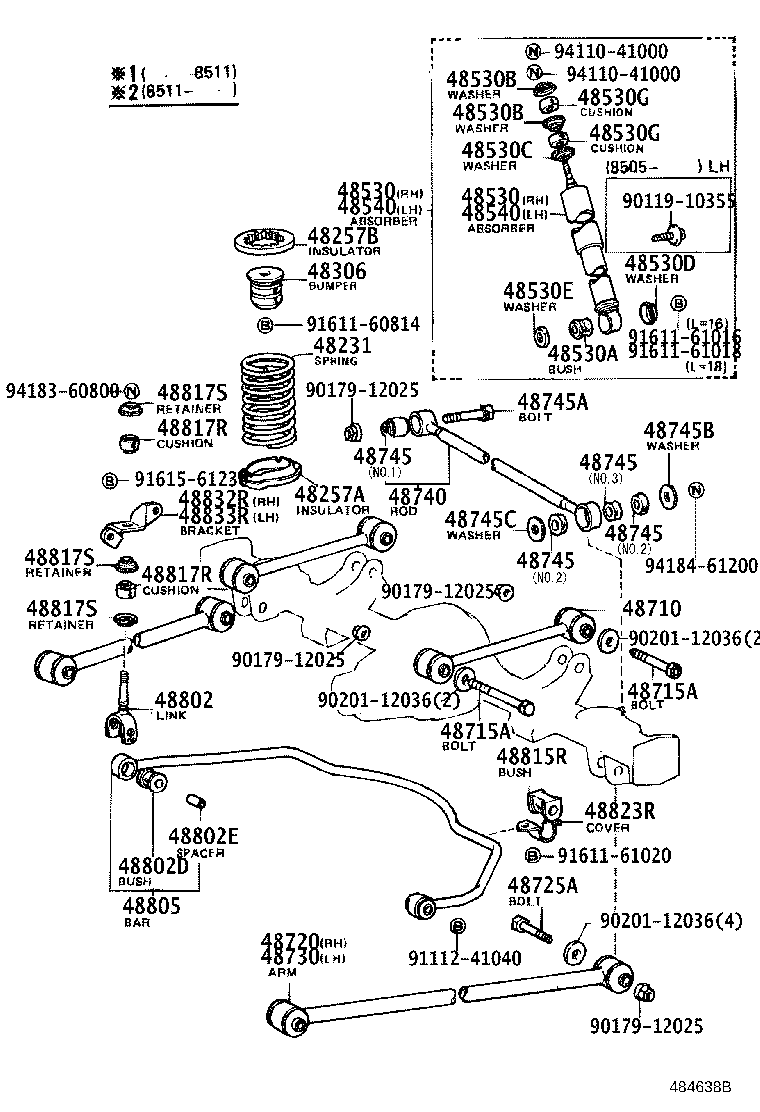

Click highlighted areas on diagram

diagram 48231 48257A 48257B 48306 48530 48530 48530A 48530B 48530B 48530C 48530D 48530E 48530G 48530G 48540 48540 48710 48715A 48715A 48720 48725A 48730 48740 48745 48745 48745 48745 48745A 48745B 48745C 48802 48802D 48802E 48805 48815R 48817R 48817R 48817S 48817S 48817S 48823R 48832R 48833R 9011910355 9017912025 9017912025 9017912025 9017912025 9020112036 9020112036 9020112036 9111241040 9161160814 9161161016 9161161018 9161161020 9161561230 9411041000 9411041000 9418360800 9418461200
Part # Description Qty Price
48231 - SPRING, COIL, REAR
48231-12230

AE85..2D

 2
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-12010

AE8#

 2
48257B - INSULATOR, REAR COIL SPRING, UPPER
48257-12020

AE8#

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-12050

AE8#

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80028

AE85

 1
48531-80055

AE85

 1
48531-12320

AE85

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80028

AE85

 1
48531-80055

AE85

 1
48531-12320

AE85

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001

AE8#

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02002

AE8#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02002

AE8#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02007

AE8#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

AE8#

LH

 1
90948-02047

AE8#

RH

 1
90948-02085

AE8#

RH

 1
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

AE8#

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01018

AE8#

LWR

 2
90948-01003

AE8#

UPR

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01018

AE8#

LWR

 2
90948-01003

AE8#

UPR

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-12320

AE85

 1
48531-80055

AE85

 1
48531-80028

AE85

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-12320

AE85

 1
48531-80055

AE85

 1
48531-80028

AE85

 1
48710 - ARM ASSY, UPPER CONTROL
48710-12100

AE85..2D

 2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90101-12044

AE8#

*12-1.25PX77-22

 2
90101-12045

AE8#

*12-1.25PX149-23

 2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90101-12044

AE8#

*12-1.25PX77-22

 2
90101-12045

AE8#

*12-1.25PX149-23

 2
48720 - ARM ASSY, LOWER CONTROL, RH
48720-12020

AE85

 1
48725A - BOLT(FOR LOWER CONTROL ARM)
90101-12044

AE8#

 4
48730 - ARM ASSY, LOWER CONTROL, LH
48720-12020

AE85

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-12021

AE86;AE85..4FC

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-20001

AE8#

NO.2;L=15,ROD X HOUSING

 2
90386-20001

AE8#

NO.3;L=12,ROD X HOUSING

 1
48706-14010

AE8#

NO.1;ROD X BODY

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-20001

AE8#

NO.2;L=15,ROD X HOUSING

 2
90386-20001

AE8#

NO.3;L=12,ROD X HOUSING

 1
48706-14010

AE8#

NO.1;ROD X BODY

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-20001

AE8#

NO.2;L=15,ROD X HOUSING

 2
90386-20001

AE8#

NO.3;L=12,ROD X HOUSING

 1
48706-14010

AE8#

NO.1;ROD X BODY

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-20001

AE8#

NO.2;L=15,ROD X HOUSING

 2
90386-20001

AE8#

NO.3;L=12,ROD X HOUSING

 1
48706-14010

AE8#

NO.1;ROD X BODY

 1
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90105-12070

AE8#

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90201-12010

AE8#

 1
48745C - WASHER, LATERAL CONTROL ROD CUSHION
94612-12000

AE8#

 1
Common parts
90119-10355
90179-12025
90201-12036
91112-41040
91611-60814
91611-61016
91611-61018
91611-61020
91615-61230
94110-41000
94183-60800
94184-61200
