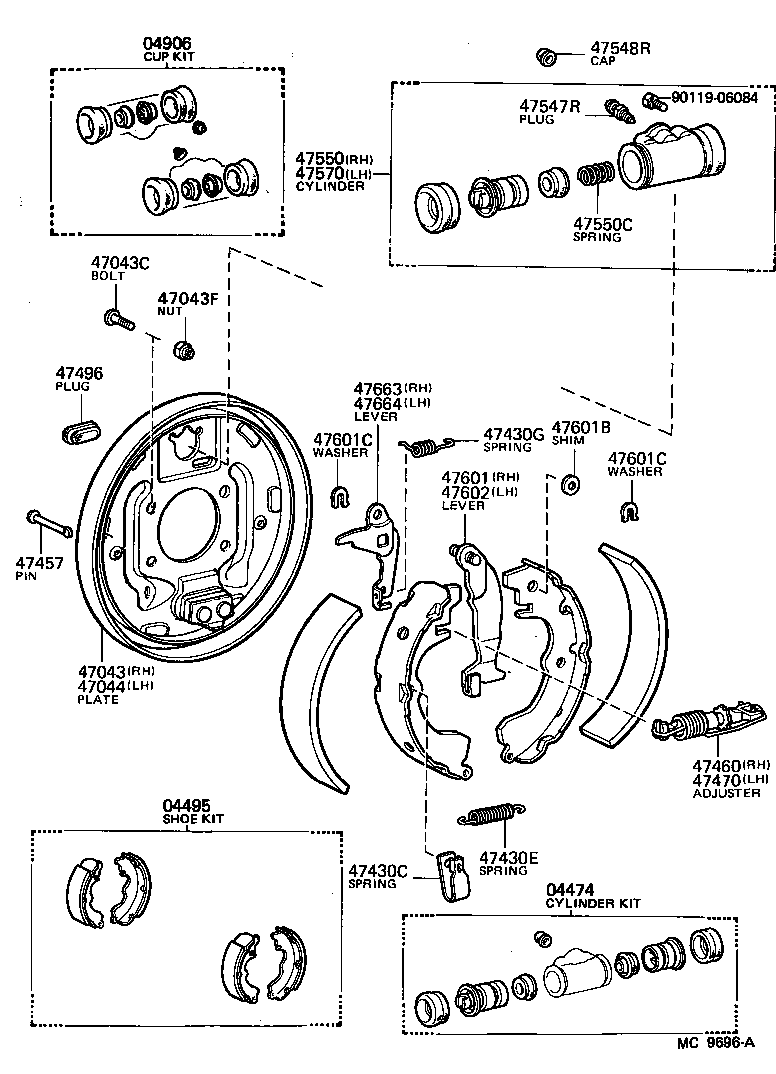

Toyota Sprinter trueno AE85 REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

Part #	Description	Period	Qty
04474 - CYLINDER KIT, REAR WHEEL
04474-12020	AE85	05/1983 - 04/1987	2
04495 - SHOE KIT, REAR BRAKE
04495-12010	AE85	05/1983 - 04/1987	1
04497-12010	AE85 REBUILT	05/1983 - 04/1987	1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-11031	AE85	05/1983 - 04/1987	1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-12030	AE85	05/1983 - 04/1987	1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-22020	AE85 *10−1.25PX26−10	05/1983 - 04/1987	8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
94181-11000	AE8#	05/1983 - 05/1985	8
94181-11000	AE8#..GT,SE,SR,XL	05/1985 - 04/1987	8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-12030	AE85	05/1983 - 04/1987	1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47446-10010	AE85	05/1983 - 04/1987	4
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-18299	AE85	05/1983 - 04/1987	2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12276	AE85	05/1983 - 04/1987	2
47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-10010	AE85	05/1983 - 04/1987	4
47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47061-12020	AE85	05/1983 - 04/1987	1
47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47062-12020	AE85	05/1983 - 04/1987	1
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-20011	AE8#..GT,SE,SR,XL	05/1985 - 04/1987	2
47491-20011	AE8#	05/1983 - 05/1985	2
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-20010	AE8#	05/1983 - 05/1985	2
47547-20010	AE8#..GT,SE,SR,XL	05/1985 - 04/1987	2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010	AE8#	05/1983 - 05/1985	2
31478-30010	AE8#..GT,SE,SR,XL	05/1985 - 04/1987	2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-19165	AE85	05/1983 - 04/1987	1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-07006	AE85	05/1983 - 04/1987	2
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-19165	AE85	05/1983 - 04/1987	1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47611-12011	AE85	05/1983 - 04/1987	1
47601B - SHIM, REAR PARKING BRAKE SHOE LEVER
90564-08152	AE8# 厚さ=0.9,T=0.9	05/1983 - 05/1985	2
90564-08151	AE8# 厚さ=0.6,T=0.6	05/1983 - 05/1985	2
90564-08172	AE8#..GT,SE,SR,XL 厚さ=0.2,T=0.2	05/1985 - 04/1987	2
90564-08151	AE8#..GT,SE,SR,XL 厚さ=0.6,T=0.6	05/1985 - 04/1987	2
90564-08172	AE8# 厚さ=0.2,T=0.2	05/1983 - 05/1985	2
90564-08174	AE8# 厚さ=0.5,T=0.5	05/1983 - 05/1985	2
90564-08150	AE8# 厚さ=0.3,T=0.3	05/1983 - 05/1985	2
90564-08174	AE8#..GT,SE,SR,XL 厚さ=0.5,T=0.5	05/1985 - 04/1987	2
90564-08150	AE8#..GT,SE,SR,XL 厚さ=0.3,T=0.3	05/1985 - 04/1987	2
90564-08152	AE8#..GT,SE,SR,XL 厚さ=0.9,T=0.9	05/1985 - 04/1987	2
90564-08173	AE8# 厚さ=0.4,T=0.4	05/1983 - 05/1985	2
90564-08173	AE8#..GT,SE,SR,XL 厚さ=0.4,T=0.4	05/1985 - 04/1987	2
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013	AE8#..GT,SE,SR,XL 厚さ=1.2	05/1985 - 04/1987	4
90213-06013	AE8# 厚さ=1.2	05/1983 - 05/1985	4
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013	AE8#..GT,SE,SR,XL 厚さ=1.2	05/1985 - 04/1987	4
90213-06013	AE8# 厚さ=1.2	05/1983 - 05/1985	4
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47612-12011	AE85	05/1983 - 04/1987	1
47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47643-12011	AE85	05/1983 - 04/1987	1
47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47644-12011	AE85	05/1983 - 04/1987	1
Common parts
90119-06084

AE85-FSPES (1983)

(8305- )AE85
