AE85-FSPES (1983)
Toyota Sprinter Trueno

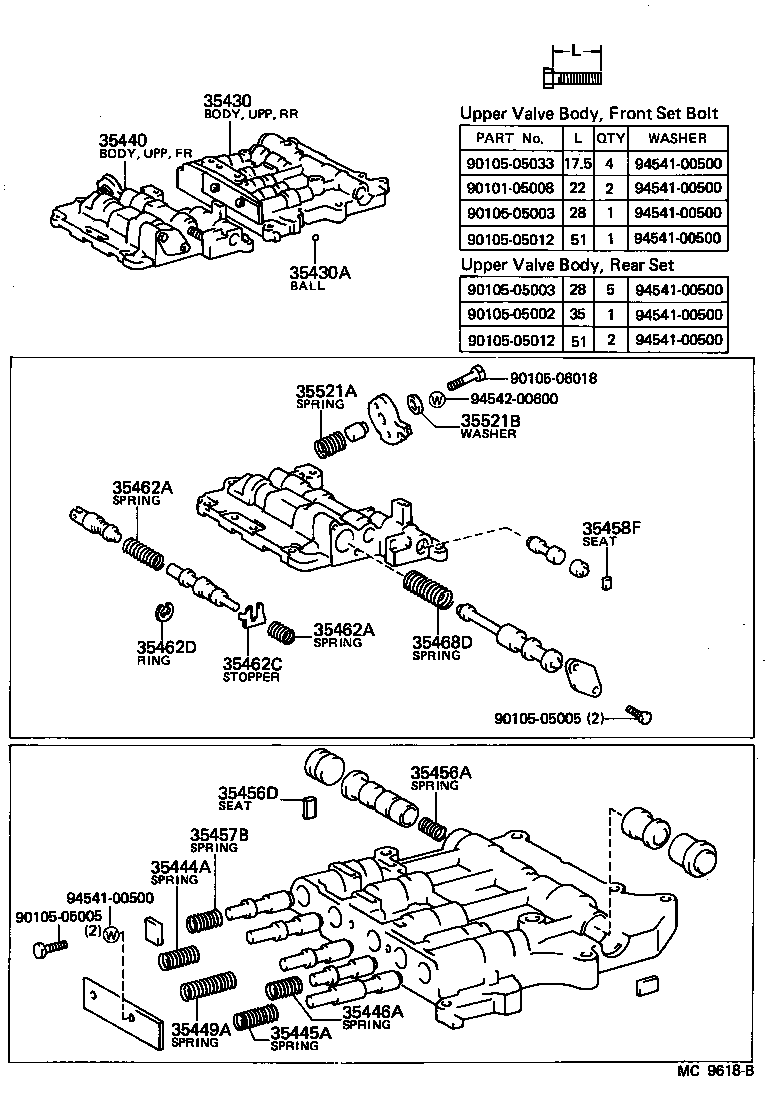

ILLUST NO. 1 OF 3(8305- )AE85..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-14020 |
AE85..4FC |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06023 |
AE8#..4FC 外径=5.56,STEEL,OD=5.56,STEEL |
6 | ||
| 35495-22010 |
AE85..4FC 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
3 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-14011 |
AE85..4FC |
1 | ||
| 35440-14010 |
AE85..4FC |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-11009 |
AE85..4FC |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
AE85..4FC |
1 | ||
| 35446A - SPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE) | ||||
| 90501-07688 |
AE85..4FC |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
AE85..4FC |
2 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08724 |
AE85..4FC |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
AE85..4FC |
1 | ||
| 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09739 |
AE85..4FC |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
AE8#..4FC |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
AE85..4FC 長さ=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-07680 |
AE8#..4FC 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
AE85..4FC 長さ=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-07680 |
AE8#..4FC 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
AE8#..4FC |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
AE8#..4FC |
6 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
AE8#..4FC |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
AE8#..4FC |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
AE8#..4FC |
1 | ||
| Common parts | ||||
| 90101-05008 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05012 | ||||
| 90105-05033 | ||||
| 90105-06018 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||

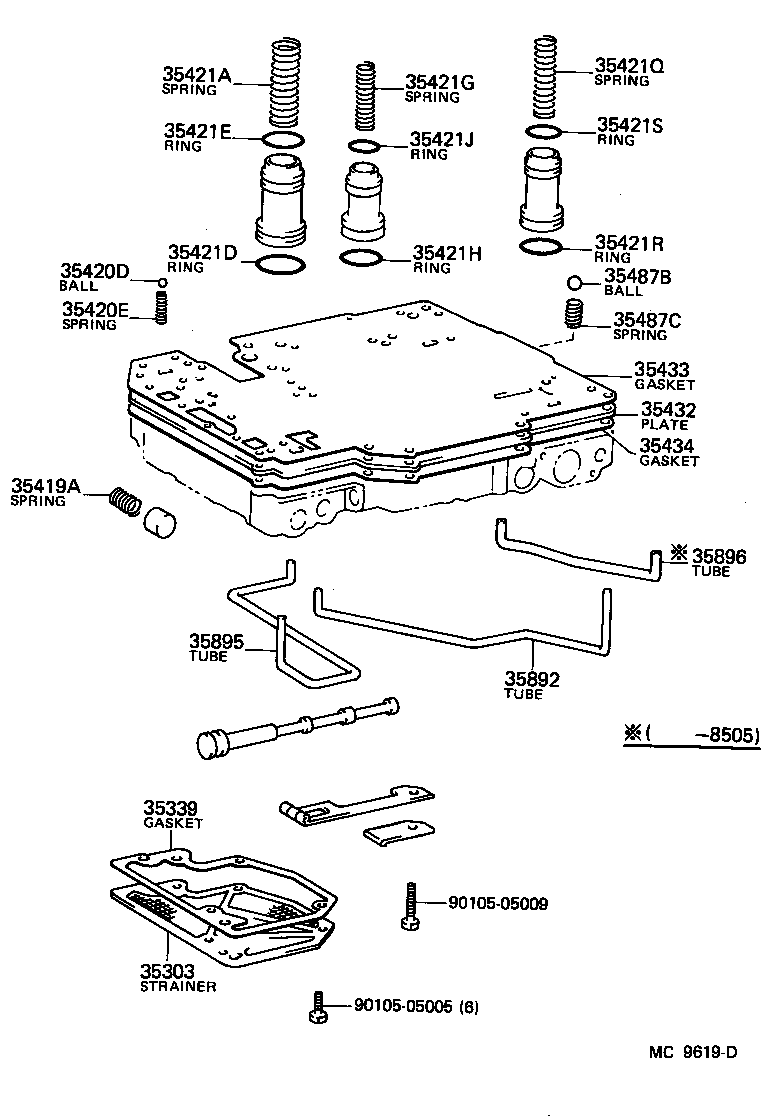

ILLUST NO. 2 OF 3(8305- )AE85..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-14010 |
AE85..4FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-14010 |
AE85..4FC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-13003 |
AE8#..4FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22010 |
AE85..4FC 外径=6.35,ﾗﾊﾞｰ,OD=6.35,GUM |
2 | ||
| 35495-22010 |
AE85..4FC 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-04727 |
AE85..4FC |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-26776 |
AE85..4FC |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
AE8#..4FC |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
AE8#..4FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-25002 |
AE8#..4FC |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
AE8#..4FC |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
AE8#..4FC |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-20016 |
AE85..4FC |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
AE8#..4FC |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
AE8#..4FC |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-14021 |
AE85..4FC |
1 | ||
| 35432-14022 |
AE85..4FC |
1 | ||
| 35432-12071 |
AE85..4FC |
1 | ||
| 35432-12072 |
AE85..4FC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-14011 |
AE85..4FC |
1 | ||
| 35433-14012 |
AE85..4FC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-14012 |
AE85..4FC |
1 | ||
| 35434-14011 |
AE85..4FC |
1 | ||
| 35487B - BALL, CHECK, NO.4 | ||||
| 35487-30010 |
AE8#..4FC |
1 | ||
| 35487C - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90504-05006 |
AE8#..4FC |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-14010 |
AE85..4FC |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-14011 |
AE85..4FC |
1 | ||
| 35896 - TUBE, OVERDRIVE SWITCH APPLY | ||||
| 35896-30010 |
AE85..4FC |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||

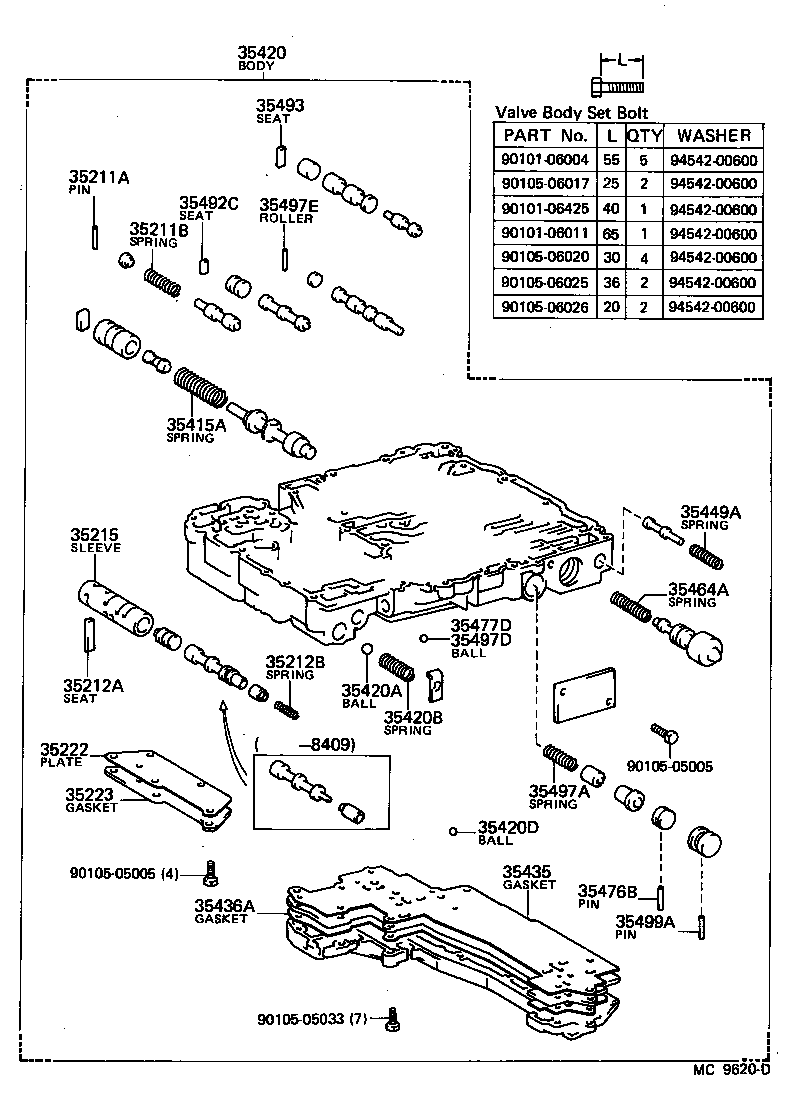

ILLUST NO. 3 OF 3(8305- )AE85..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-02007 |
AE85..4FC |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-10078 |
AE85..4FC |
1 | ||
| 35212A - SEAT, PLUG (FOR LOCK UP RELAY VALVE) | ||||
| 35493-22020 |
AE85..4FC |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-07017 |
AE85..4FC |
1 | ||
| 35215 - SLEEVE, LOCK UP RELAY VALVE | ||||
| 35215-14010 |
AE85..4FC |
1 | ||
| 35222 - PLATE, LOCK UP RELAY VALVE BODY | ||||
| 35222-14010 |
AE85..4FC |
1 | ||
| 35223 - GASKET, LOCK UP RELAY VALVE BODY | ||||
| 35223-14010 |
AE85..4FC |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-16682 |
AE85..4FC |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-12052 |
AE85..4FC |
1 | ||
| 35420-12051 |
AE85..4FC |
1 | ||
| 35420-12050 |
AE85..4FC |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
AE8#..4FC |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
AE8#..4FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22010 |
AE85..4FC 外径=6.35,ﾗﾊﾞｰ,OD=6.35,GUM |
2 | ||
| 35495-22010 |
AE85..4FC 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-14010 |
AE85..4FC |
1 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-14010 |
AE85..4FC |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
AE85..4FC |
2 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06684 |
AE85..4FC |
1 | ||
| 35476B - PIN, LOCATING (FOR 3RD COAST SHIFT) | ||||
| 90250-02012 |
AE85..4FC |
1 | ||
| 35477D - BALL, CHECK (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 35495-22010 |
AE85..4FC |
1 | ||
| 35492C - SEAT, VALVE (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35493-30040 |
AE85..4FC |
1 | ||
| 35493 - SEAT, SHIFT VALVE SPRING | ||||
| 35493-22010 |
AE85..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-11005 |
AE85..4FC |
1 | ||
| 35497D - BALL, CHECK (FOR 3-4 SHIFT VALVE) | ||||
| 35495-22010 |
AE85..4FC |
2 | ||
| 35497E - ROLLER, NEEDLE (FOR 3-4 SHIFT VALVE) | ||||
| 90361-02051 |
AE85..4FC |
1 | ||
| 35499A - PIN, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90250-02012 |
AE85..4FC |
1 | ||
| Common parts | ||||
| 90101-06004 | ||||
| 90101-06011 | ||||
| 90101-06425 | ||||
| 90105-05005 | ||||
| 90105-05033 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 90105-06025 | ||||
| 90105-06026 | ||||
| 94542-00600 | ||||
